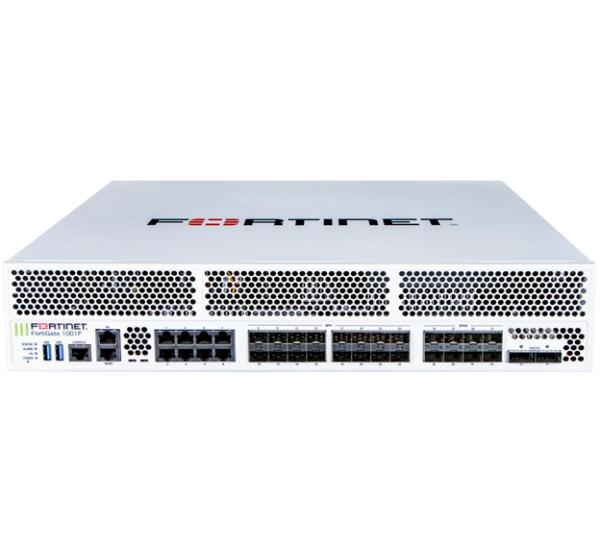

Fortinet FortiGate 1000F

Fortinet FortiGate 1000F FG-1000F Next-Generation Firewall

Fortinet FortiGate 1000F (FG-1000F) is a high-performance enterprise next-generation firewall designed for organizations that require high-capacity security inspection, multi-gigabit connectivity and centralized network protection. It combines firewall, intrusion prevention, application control, VPN, secure SD-WAN and other FortiOS-based security functions in an enterprise rackmount platform.

The FG-1000F provides a high-density combination of copper and fiber interfaces, including 16x GE RJ45, 8x GE SFP, 4x 10GE SFP+ and 4x 25GE SFP28 interfaces. Its Fortinet NP7 hardware acceleration architecture is designed to accelerate supported networking and security workloads for demanding enterprise, data-center and network-edge deployments.

Technical Specifications

Enterprise Next-Generation Firewall Security

The FortiGate 1000F provides a consolidated security platform for high-capacity enterprise networks. FortiOS combines firewall policy enforcement with intrusion prevention, application control, VPN, secure SD-WAN, network segmentation and other security functions.

The appliance can integrate with the Fortinet Security Fabric to provide broader security visibility and coordinated protection across compatible Fortinet security and networking products. FortiGuard security services can further extend threat intelligence and protection capabilities according to the selected subscription.

High-Density 1G, 10G and 25G Connectivity

The FG-1000F combines 16x GE RJ45 and 8x GE SFP interfaces with 4x 10GE SFP+ and 4x 25GE SFP28 ports. This interface mix provides flexibility for enterprise LAN, WAN, fiber aggregation, data-center edge and high-speed security deployments.

The 10GbE and 25GbE interfaces allow the firewall to be integrated into high-speed network architectures without requiring all traffic to be limited to Gigabit Ethernet connectivity. Compatible SFP, SFP+ and SFP28 transceivers should be selected according to the required speed, fiber type, reach and network architecture.

NP7 Hardware Acceleration

Fortinet's NP7 security processing technology accelerates supported networking and security workloads. Fortinet publishes firewall throughput of up to 198 Gbps for the FG-1000F under specified test conditions, with up to 17 Gbps IPS throughput, 13 Gbps NGFW throughput and 11 Gbps threat protection throughput.

Published performance figures represent controlled test conditions and maximum rated results. Actual performance can vary depending on packet size, traffic characteristics, enabled security features, inspection policies, transceiver configuration and overall network design.

Secure SD-WAN and VPN

The FortiGate 1000F supports secure SD-WAN and high-capacity IPsec VPN architectures. With published IPsec VPN throughput of up to 55 Gbps, the platform can support demanding site-to-site VPN and secure WAN environments.

Organizations can use the appliance to consolidate Internet-edge security, WAN connectivity, VPN termination and traffic inspection within a single enterprise security platform.

Enterprise and Data-Center Edge Applications

• High-performance enterprise next-generation firewall
• Data-center edge security
• 10GbE and 25GbE security aggregation
• Enterprise Internet gateway protection
• Secure SD-WAN deployments
• High-capacity IPsec VPN connectivity
• Network segmentation and security policy enforcement
• Fortinet Security Fabric deployments
• High-availability enterprise firewall architectures

High Availability and Rack Deployment

The 2RU chassis is designed for enterprise data-center and network-rack deployments. Dual hot-swappable power supplies provide power redundancy, while active-active and active-passive HA capabilities allow organizations to build resilient firewall architectures.

The appliance is appropriate for environments where high interface density, security inspection capacity and redundant infrastructure are required. Rack installation and airflow should be planned according to the server-room or data-center environment.

Compatibility and Configuration Considerations

Before purchasing, verify the exact FG-1000F hardware SKU, FortiOS compatibility, FortiGuard security services, FortiCare support requirements and optical-transceiver requirements. SFP, SFP+ and SFP28 modules should be matched with supported Fortinet configurations and the appropriate fiber or copper media.

FortiGate performance varies depending on the security features enabled and the traffic profile. Buyers should therefore evaluate the published firewall, IPS, NGFW, threat-protection and SSL-inspection figures according to the specific security services required for their deployment.

FortiGate 1000F Price in Bangladesh

For the latest Fortinet FortiGate 1000F FG-1000F price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty, licensing and stock status.

Datacom Technologies (BD) can provide purchasing assistance and availability information for Fortinet network security products. For inquiries, contact sales@datacom.com.bd.

Important: FortiGate hardware and FortiCare/FortiGuard subscriptions may be quoted separately depending on the required deployment package. Confirm the hardware SKU, support term, FortiOS requirements, optical transceiver compatibility and security-service subscriptions before purchase.
