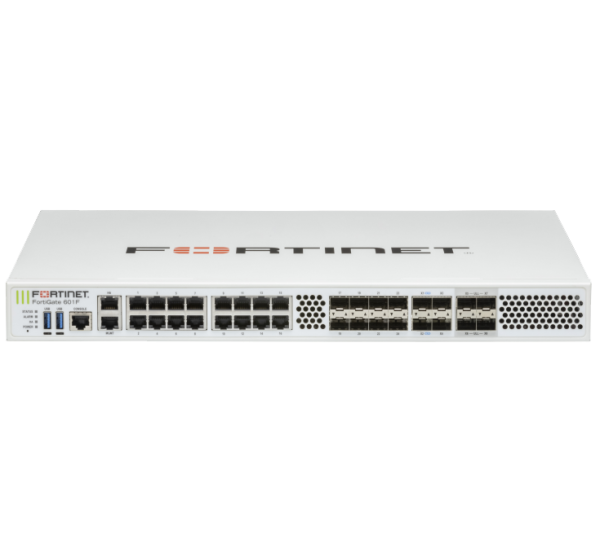

Fortinet FortiGate 600F

Fortinet FortiGate 600F FG-600F Next-Generation Firewall

Fortinet FortiGate 600F (FG-600F) is a high-performance enterprise next-generation firewall designed for organizations that require high-throughput security inspection, multi-gigabit connectivity and advanced network security. It combines firewall, IPS, application control, VPN, secure SD-WAN and other FortiOS-based security functions in a 1RU rackmount platform.

The FortiGate 600F provides a dense combination of copper and fiber interfaces, including 16x GE RJ45, 8x GE SFP, 4x 10/1GE SFP+ and 4x 25/10GE SFP28/SFP+ ultra-low-latency interfaces. Fortinet's NP7 processor provides hardware acceleration for supported traffic and security functions, helping the platform deliver high performance in enterprise and data-center edge environments.

Technical Specifications

High-Performance Enterprise Security

The FortiGate 600F is designed for security-intensive enterprise environments where firewall throughput, inspection capacity and interface density are important. FortiOS integrates firewall policy enforcement with intrusion prevention, application control, VPN, secure SD-WAN and other network security functions.

The platform can also participate in the Fortinet Security Fabric, enabling centralized security visibility and integration with compatible Fortinet products. Additional FortiGuard security services and FortiCare support depend on the selected licensing and service package.

High-Density Copper and Fiber Connectivity

The FG-600F combines 16x GE RJ45 and 8x GE SFP interfaces with four 10/1GE SFP+ interfaces and four 25/10GE SFP28/SFP+ ultra-low-latency interfaces. This provides a broad range of connectivity options for enterprise WAN, campus, data-center edge and security aggregation environments.

The X1 and X2 10/1GE interfaces support FortiLink, making the appliance suitable for integrated deployments with compatible FortiSwitch infrastructure. The four ULL interfaces are designed for high-speed, latency-sensitive connectivity and operate independently of the integrated switch fabric.

NP7 Hardware Acceleration

Fortinet's NP7 processor accelerates supported traffic between the platform's data interfaces. Fortinet rates the FG-600F for up to 139 Gbps firewall throughput under its 1518-byte UDP test condition, with up to 105 Mpps packet processing performance.

Security inspection performance is also designed for demanding workloads, with published figures of up to 14 Gbps IPS, 11.5 Gbps NGFW, 10.5 Gbps threat protection and 9 Gbps SSL inspection. Actual performance varies according to traffic patterns, packet sizes, enabled security features, inspection policies and configuration.

Ultra-Low-Latency 25G Networking

The four 25/10GE SFP28/SFP+ ULL interfaces provide high-speed connectivity for applications where low latency is important. Fortinet documentation notes that these interfaces bypass the integrated switch fabric, allowing them to provide a dedicated low-latency forwarding path for supported traffic.

This makes the FG-600F appropriate for data-center edge security, high-speed enterprise aggregation and other deployments where 10GbE or 25GbE connectivity is required alongside advanced security inspection.

VPN, SD-WAN and Secure Network Applications

With published IPsec VPN throughput of up to 55 Gbps, the FortiGate 600F can support high-capacity site-to-site VPN and secure WAN architectures. FortiOS also provides secure SD-WAN functionality for organizations managing multiple WAN connections and distributed enterprise locations.

The appliance supports up to 2,000 gateway-to-gateway IPsec VPN tunnels and up to 50,000 client-to-gateway IPsec VPN tunnels according to Fortinet's published specifications.

High Availability and Rack Deployment

The 1RU chassis is designed for enterprise rack environments and includes dual hot-swappable redundant AC power supplies. Fortinet supports active-active, active-passive and clustering configurations, allowing organizations to design resilient firewall architectures.

The FG-600F measures approximately 44.45 x 432 x 380 mm and has an operating temperature range of 0°C to 40°C. Its redundant power architecture and high-density interface design make it suitable for business-critical security deployments.

Compatibility and Configuration Considerations

Before purchasing, verify the exact FG-600F hardware SKU, FortiOS compatibility, FortiGuard services, FortiCare support requirements and transceiver requirements. The SFP, SFP+ and SFP28 interfaces should be paired with compatible transceivers and appropriate fiber or copper media according to the intended network design.

When deploying the 25/10GE ULL interfaces, network designers should account for their distinct forwarding architecture and the requirement that the ULL interfaces operate at the same configured speed.

Typical Applications

• High-performance enterprise next-generation firewall
• Data-center edge security
• Enterprise WAN and Internet gateway protection
• Secure SD-WAN deployments
• High-capacity IPsec VPN environments
• 25GbE and 10GbE security aggregation
• FortiSwitch and FortiLink deployments
• Campus and enterprise network segmentation
• High-availability firewall architectures

FortiGate 600F Price in Bangladesh

For the latest Fortinet FortiGate 600F FG-600F price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty, licensing and stock status.

Datacom Technologies (BD) can provide purchasing assistance and availability information for Fortinet network security products. For inquiries, contact sales@datacom.com.bd.

Important: FortiGate hardware and FortiCare/FortiGuard subscriptions may be quoted separately depending on the required deployment package. Confirm the hardware SKU, support term, FortiOS requirements, transceiver compatibility and security-service subscriptions before purchase.
