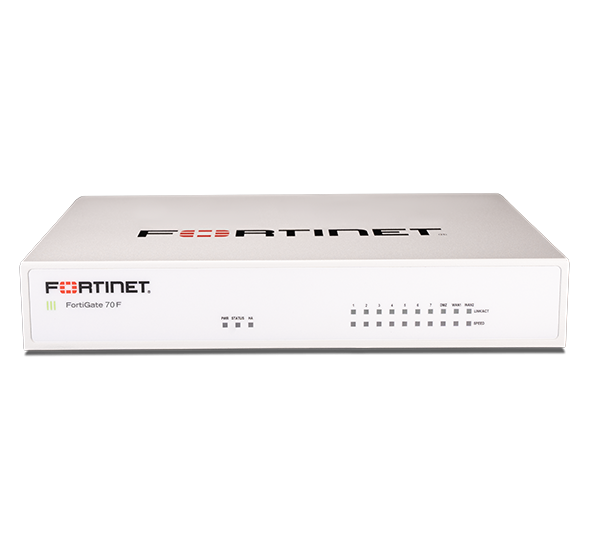

Fortinet FortiGate 70F FG-70F Next-Generation Firewall
The Fortinet FortiGate 70F is a compact next-generation firewall designed for small and medium-sized businesses, branch offices and distributed enterprise environments. It combines advanced network security, secure routing, VPN, intrusion prevention, application control and SD-WAN capabilities in a single appliance powered by FortiOS.
The FG-70F provides a flexible Gigabit Ethernet interface configuration with dedicated WAN, DMZ, internal and FortiLink-capable ports. Its hardware-accelerated architecture is designed to deliver high firewall performance while maintaining the security inspection capabilities required for modern branch and enterprise networks.
Flexible 10-Port Gigabit Connectivity
The FortiGate 70F includes 10x GE RJ45 interfaces: 2 WAN ports, 1 DMZ port, 5 internal ports and 2 FortiLink-capable ports by default. The FortiLink interfaces can be used for FortiSwitch connectivity, providing an integrated approach to secure branch switching and firewall deployment.
Technical Specifications
| Specification |
Details |
| Product |
Fortinet FortiGate 70F |
| Model |
FG-70F |
| Product Type |
Next-Generation Firewall / Secure Networking Appliance |
| WAN Interfaces |
2 x GE RJ45 |
| DMZ Interface |
1 x GE RJ45 |
| Internal Interfaces |
5 x GE RJ45 |
| FortiLink Interfaces |
2 x GE RJ45 by default |
| Total Network Interfaces |
10 x GE RJ45 |
| Firewall Throughput |
Up to 10 Gbps |
| IPS Throughput |
Up to 1.4 Gbps |
| NGFW Throughput |
Up to 1 Gbps |
| Threat Protection |
Up to 800 Mbps |
| IPsec VPN Throughput |
Up to 6.1 Gbps |
| SSL Inspection Throughput |
Up to 700 Mbps |
| Concurrent TCP Sessions |
Up to 1.5 million |
| New TCP Sessions/Second |
Up to 35,000 |
| Operating System |
FortiOS |
| USB |
1 x USB port |
| Console |
1 x RJ45 console |
| Form Factor |
Desktop appliance |
| Power Supply |
Single AC power supply |
Next-Generation Firewall Security
The FG-70F provides an integrated security platform for controlling network traffic and protecting users, applications and devices. FortiOS supports firewall policies, application control, intrusion prevention, VPN, web security and other security functions according to the installed software release and licensing configuration.
Fortinet's FortiGuard security services can extend the appliance with subscription-based threat intelligence and security services. Depending on the selected subscription, organizations can deploy additional protections such as antivirus, web filtering, application control, IPS and other advanced security capabilities.
Hardware-Accelerated Security Architecture
The FortiGate 70F uses Fortinet's SOC4 architecture with NP6XLite and CP9XLite processors. The NP6XLite network processor can offload supported traffic between data interfaces, helping the appliance maintain efficient forwarding performance while security processing is performed by the platform's dedicated acceleration architecture.
Secure SD-WAN and FortiLink
The FG-70F integrates SD-WAN functionality with firewall security, making it suitable for branch and distributed enterprise WAN deployments. Organizations can use the platform to manage secure WAN connectivity, traffic policies, VPN connections and network security from a unified FortiOS environment.
The two default FortiLink-capable interfaces can also be used to connect compatible FortiSwitch infrastructure. This allows the FortiGate to serve as the security and management point for an integrated Fortinet branch network.
Performance and Capacity
The FortiGate 70F provides up to 10Gbps firewall throughput, 1.4Gbps IPS throughput, 1Gbps NGFW throughput and 800Mbps threat protection. It also supports up to 1.5 million concurrent TCP sessions and up to 35,000 new TCP sessions per second.
For VPN deployments, the platform provides up to 6.1Gbps IPsec VPN throughput. These published performance figures are test-based values and actual throughput can vary depending on traffic patterns, enabled security services, packet sizes, software versions and configuration.
Enterprise and Branch Applications
The FortiGate 70F is suitable for branch-office firewalls, secure internet gateways, enterprise WAN edges, SD-WAN deployments, VPN gateways, network segmentation, FortiLink-based branch switching and security-driven networking environments.
Its desktop form factor and 10-port Gigabit interface configuration make it practical for offices and branch locations where a compact security appliance is preferred over a larger rack-mounted firewall.
Compatibility and Licensing Considerations
Advanced security features and FortiGuard services depend on the applicable FortiOS release, configuration and subscription entitlement. Buyers should verify required FortiGuard services, software version, support coverage and licensing before deployment.
The standard FG-70F should not be confused with the FortiGate 71F, which adds internal storage, or the FortiGate Rugged 70F, which is designed for specialized industrial and harsh-environment deployments.
