| Specification | Details |
|---|
| Model | Fortinet FortiSwitch FS‑148E‑POE |
| Series | FortiSwitch 100 Secure Access |
| Switch Type | Managed Layer 2 Ethernet Switch |
| Ports | 48 × 10/100/1000 RJ‑45 |
| PoE+ Ports | 24 × PoE/PoE+ (802.3af/at) |
| Total PoE Power Budget | ~370 W |
| Uplink Ports | 4 × 1 Gb SFP |
| Switching Capacity (Duplex) | 104 Gbps |
| Forwarding Performance | ~155 Mpps |
| MAC Address Table | 16 K entries |
| VLAN Support | Up to 4 K VLANs |
| Link Aggregation | Up to 8 per group, multiple groups |
| Packet Buffers | ~1.5 MB |
| Memory (DRAM) | ~256 MB DDR3 |
| Flash | ~64 MB |
| Dedicated Management Port | None (serial console available) |
| Serial Console Port | Yes |
| Form Factor | 1U rack‑mount |
| Dimensions (mm) | ~44 × 348 × 440 |
| Weight | ~5.2 kg |
| Power Input | 100‑240 VAC |
| Operating Temp. | 0–45 °C |
| Humidity | 10–90% non‑condensing |
Description:

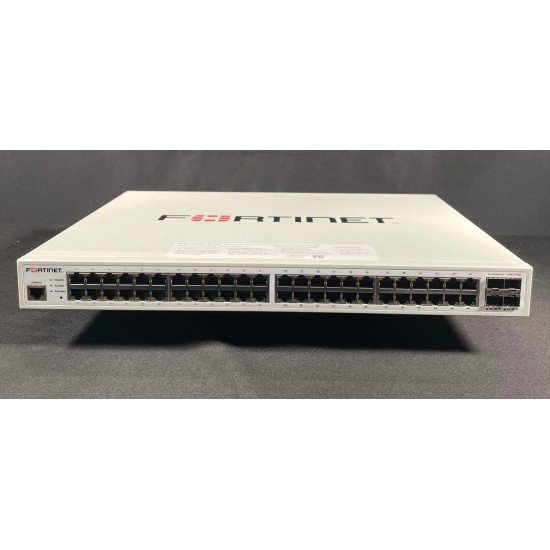

The Fortinet FortiSwitch FS‑148E‑POE is a reliable, high‑density 48‑port managed Layer 2 Ethernet switch designed for enterprise access networks, campus environments, and mid‑sized businesses. It provides 48 Gigabit RJ‑45 ports, with 24 of those ports supporting PoE/PoE+ power delivery, enabling both data and power to be delivered to devices such as wireless access points, VoIP phones, and PoE‑powered security cameras over a single cable. The switch supports a total PoE budget of around 370 W, allowing it to power multiple devices simultaneously without the need for external injectors or midspans.
To connect to aggregation switches or uplinks, the FS‑148E‑POE includes four dedicated 1 Gb SFP ports for fiber or copper SFP transceivers, offering flexibility for network design. With a 104 Gbps switching capacity and a forwarding rate of about 155 Mpps, it delivers efficient performance for typical business workloads and mixed traffic scenarios. The switch supports up to 4 K VLANs for network segmentation and features link aggregation capabilities to increase bandwidth and redundancy.
Other robust features include an extensive MAC address table, scalable packet buffering, and industry‑standard network protocols such as spanning tree and QoS, ensuring stable and secure network operations. Its rack‑mount form factor, built‑in AC power supply, and enterprise‑grade build quality make the FortiSwitch FS‑148E‑POE a solid choice for PoE deployments in modern network infrastructures.
