| Specification | Details |
|---|

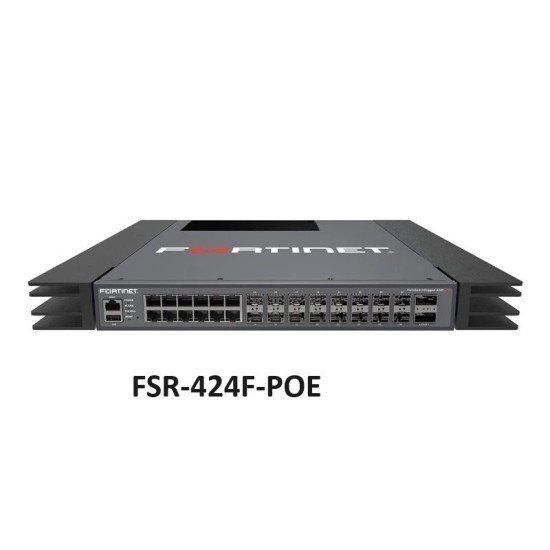

| Model | Fortinet FSR‑424F‑POE |
| Series | FortiSwitch Rugged 400 Series |
| Switch Type | Managed Layer 2/Layer 3 Rugged Ethernet Switch |
| Ports – UPOE RJ‑45 | 12 × 2.5 GbE (UPOE, up to 60 W per port) |
| Ports – SFP+ | 12 × 1/2.5 GbE SFP+ |
| Uplink Ports – SFP+ | 4 × 10 GbE SFP+ |
| Uplink Ports – QSFP+ | 2 × 40 GbE QSFP+ |
| PoE Standard | UPOE / IEEE 802.3af/at (supports high‑power PoE) |
| Total PoE Power Budget | ~420 W |
| Switching Capacity | ~360 Gbps |
| Forwarding Performance | ~584 Mpps |
| MAC Address Table | ~32 K entries |
| VLAN Support | Up to 4096 VLANs |
| Link Aggregation | Multiple LAG groups supported |
| Packet Buffer | ~4 MB |
| DRAM Memory | ~1 GB |
| Flash Storage | ~256 MB |
| Routing Support | IPv4 & IPv6 hardware‑based routing entries |
| Management Protocols | SNMP, CLI, HTTP/HTTPS, SSH, RMON |
| Spanning Tree Instances | Up to 16 |
| Form Factor | Rugged rack‑mountable |
| Environmental Rating | IP40 |
| Operating Temp. Range | –40 °C to +70 °C |
| Humidity | 5–95% non‑condensing |
| Power Input | Redundant power support (AC/DC options) |
| Weight | ~6.3 kg |
Description:
The Fortinet FSR‑424F‑POE is a high‑performance managed Layer 2/Layer 3 rugged Ethernet switch built to support demanding enterprise and industrial environments where both high‑speed connectivity and robust Power over Ethernet (PoE) support are needed. This model is part of the FortiSwitch Rugged 400 Series, designed for harsh conditions with an IP40 environmental rating and wide operating temperature range from –40 °C to +70 °C, making it suitable for factory floors, outdoor enclosures, transportation networks, and other challenging deployments.
The switch delivers 12 multi‑gigabit (2.5 GbE) RJ‑45 ports with UPOE support, each capable of delivering up to 60 W of PoE power to devices like high‑end wireless access points, IP cameras, and IoT equipment. The total PoE power budget of ~420 W ensures ample power for demanding endpoint deployments. Additional 12 SFP+ ports and four 10 GbE SFP+ uplinks provide flexible fiber connectivity, while two 40 GbE QSFP+ ports enable high‑bandwidth backbone links to aggregation or core network layers.
With a switching capacity around 360 Gbps and a forwarding performance near 584 Mpps, the FSR‑424F‑POE handles heavy traffic loads efficiently. It supports up to 4096 VLANs, rich link aggregation, and both Layer 2 and Layer 3 features, along with comprehensive management options such as SNMP, CLI, and secure web interfaces. The rugged design, fanless cooling, and redundant power capabilities make this switch a reliable choice for mission‑critical networks where uptime, performance, and power delivery are essential.
