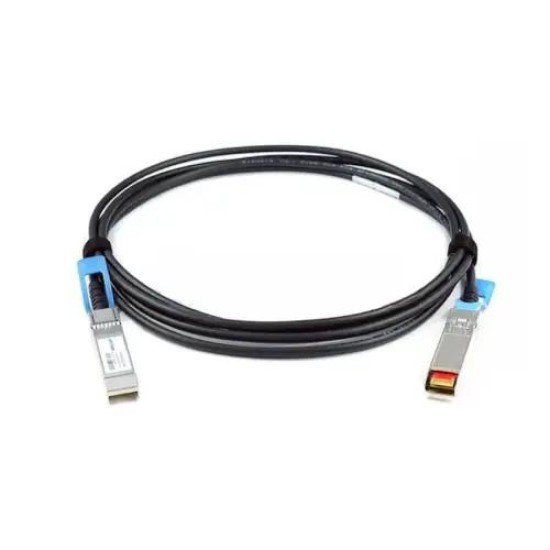

Fortinet SP-CABLE-FS-SFP28 Compatible 25G SFP28 Passive DAC Cable
Datacom Technologies BD is your trusted source for networking equipment and solutions in Bangladesh. We provide a wide range of products, including the Fortinet SP-CABLE-FS-SFP28 Compatible 25G SFP28 Passive DAC Cable. With our expert technical support and competitive pricing, we help businesses of all sizes achieve their networking goals.
Product Specification
| Feature |
Value |
| Form Factor |
SFP28 DAC Cable |
| Data Rate |
25 Gbps |
| Passive or Actively Equalized |
Passive |
| Supply Voltage |
3.3 V |
| Cable Length |
0.55 meters (1.6 ft) |
| Cable Impedance |
100 Ω |
| Cable Type |
Twinax |
| Wire Gauge |
30 AWG (13 m), 26 AWG (45 m) |
| Minimum Cable Bend Radius |
35 mm |
| Cable Jacket Type |
PVC |
| Connector |
SFP28 to SFP28 |
| Digital Diagnostic Monitoring |
N/A |
| Operating Environment |
0°C to 70°C |
| Storage Environment |
-40°C to 85°C |
| Weight |
0.13 kg |
| Application |
25G Ethernet |
| Compliance |
SFF-8402, SFF-8432, MIL-STD-883C, RoHS |
Description
The
Fortinet SP-CABLE-FS-SFP28 Compatible 25G SFP28 Passive DAC Cable is a high-performance interconnection solution designed for short-distance connectivity within data centers and server rooms. This cable provides reliable and efficient transmission of data at 25 Gigabit per second (Gbps) between SFP28-equipped devices, such as switches, servers, and network adapters.
The passive nature of this cable eliminates the need for external power sources, making it a cost-effective and easy-to-deploy option. The twinax design ensures optimal signal integrity and minimizes signal loss over short distances. The cable is fully compliant with IEEE 802.3bj standards, guaranteeing compatibility with a wide range of SFP28-based equipment.
Key features of the SP-CABLE-FS-SFP28 Compatible 25G SFP28 Passive DAC Cable include:
High-speed performance: Delivers 25Gbps data rates for demanding applications.
Passive design: Requires no external power, reducing costs and simplifying deployment.
Twinax construction: Ensures reliable signal transmission over short distances.
IEEE 802.3bj compliance: Guarantees compatibility with industry standards.
Fortinet compatibility: Specifically designed to work seamlessly with Fortinet equipment.
This cable is ideal for connecting SFP28-based devices within a single rack or between adjacent racks in a data center.
It is a valuable tool for building high-speed, reliable network infrastructures.
Supported/Comparable Models
Fortinet FortiSwitch 4000 series
Fortinet FortiSwitch 3000 series
Fortinet FortiSwitch 2000 series
Fortinet FortiSwitch 1000 series
Fortinet FortiServer series
Other SFP28-equipped devices from various vendors
