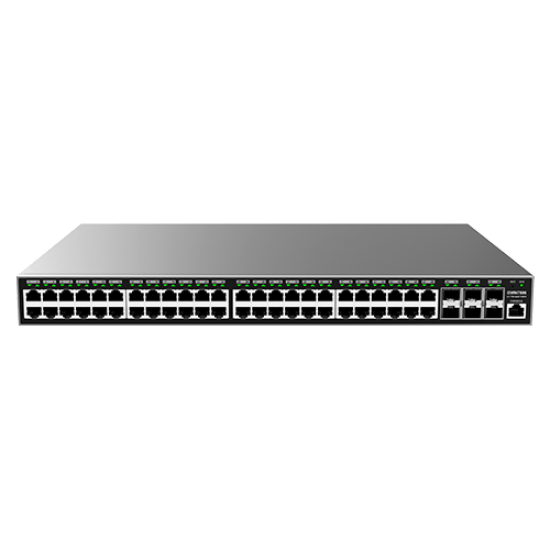

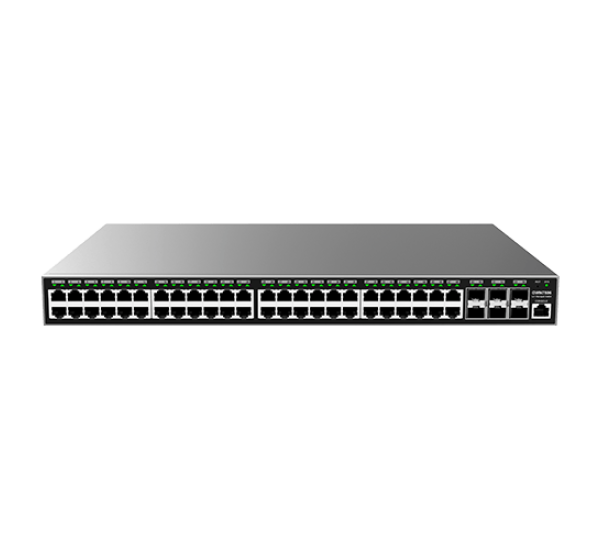

Grandstream GWN7806 48 Port Gigabit Layer 2+ Managed Network Switch

Detailed Feature Explanation

1. Layer 2+ Managed:

   • Layer 2 (Switching): Provides standard switching features like VLANs (Virtual LANs), Link Aggregation (LAG), Spanning Tree Protocol (STP), and QoS (Quality of Service).

   • "Plus" Features: Adds basic Layer 3 (Routing) capabilities, most notably Static Routing. This allows the switch to route traffic between different VLANs at wire speed, which is a significant performance benefit over having a router-on-a-stick configuration. It does not run dynamic routing protocols like OSPF or BGP.

2. Power over Ethernet (PoE):

   • The GWN7648LP model is a PoE switch. This is a critical feature for powering devices directly over the Ethernet cable.

   • It can power Grandstream's GWN7806 access points, GXV IP phones, and other PoE devices like security cameras, eliminating the need for separate power adapters.

   • With a 375W total budget, it can comfortably power around 24-30 typical access points or phones.

3. SFP Uplink Ports:

   • The 4 SFP slots are used for uplinks. You can connect these to another switch (like a core switch) or a router using fiber optic cables for longer distances and higher bandwidth, or use copper SFP modules for another twisted-pair connection.

4. GWN Integration:

   • This is a major strength. The switch can be managed in the same free GWN Cloud or on-prem GWN Manager platform as the GWN7806 access points.

   • This allows for unified network management: you can see and configure your entire wired and wireless network from a single pane of glass.

Common Use Cases

• SMB Network Backbone: The central switch in an office, connecting all wired devices and providing PoE to wireless access points and phones.

• Unified Grandstream Deployment: Ideal for businesses standardizing on Grandstream for their voice (GXV Phones), video, and data (GWN Wi-Fi) networks.

• Hotel / MDU Deployments: Connecting IP phones and Wi-Fi access points in guest rooms, with the ability to segment traffic per room or per VLAN.

• School / Classroom Wiring: Providing connectivity and power to access points and computers in multiple classrooms.

Comparison with Previous Products

This continues the trend of moving from the core data center to the network edge:

• Mellanox MSB7890: Core/Spine Data Center Switch (200G). Purpose: High-speed server-to-server traffic.

• Mellanox MQM8790: Server NIC. Purpose: Connect a server to the high-speed network.

• Grandstream GWN7806: Wireless Access Point. Purpose: Connect end-user devices wirelessly.

• Grandstream GWN7648: Access / Edge Switch. Purpose: Connect end-user devices via wire and power the access points. This is the "last switch" in the network that devices plug into.

Strengths and Weaknesses

Strengths:

• Cost-Effective: Offers strong managed features at a very competitive price point.

• Unified Management: Seamless integration with the free GWN ecosystem is a huge advantage for Grandstream shops.

• PoE Model Available: The LP model is a complete solution for powering a full suite of IP devices.

• Layer 2+ Features: Static routing between VLANs provides good performance and segmentation without needing an external router.

Weaknesses / Considerations:

• Limited Scale: Designed for the access layer, not for core data center duties. It is not a high-availability, modular switch.

• Basic L3 Features: Lacks advanced dynamic routing protocols, which are needed in larger, more complex networks.

• Throughput: While sufficient for its intended role, its capacity is minuscule compared to the Mellanox data center switches.




  The Grandstream GWN7648 is a solid, 48-port Gigabit Layer 2+ managed access switch. Its primary value is providing a powerful, PoE-capable wired foundation for a business network, with the added benefit of being fully manageable within Grandstream's free GWN ecosystem alongside their Wi-Fi access points and IP phones. It is the workhorse that connects and powers everything at the network's edge.
