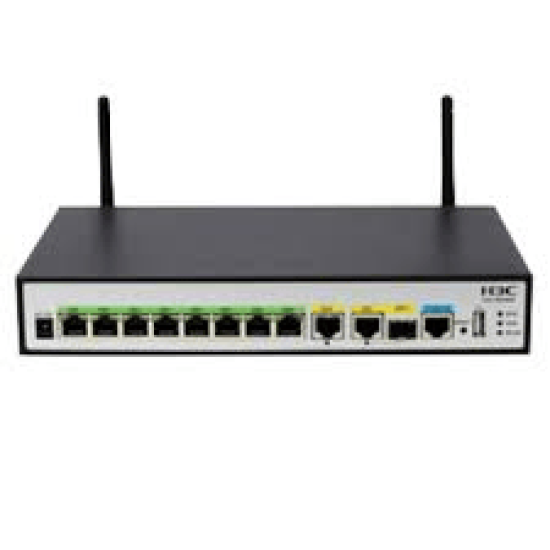

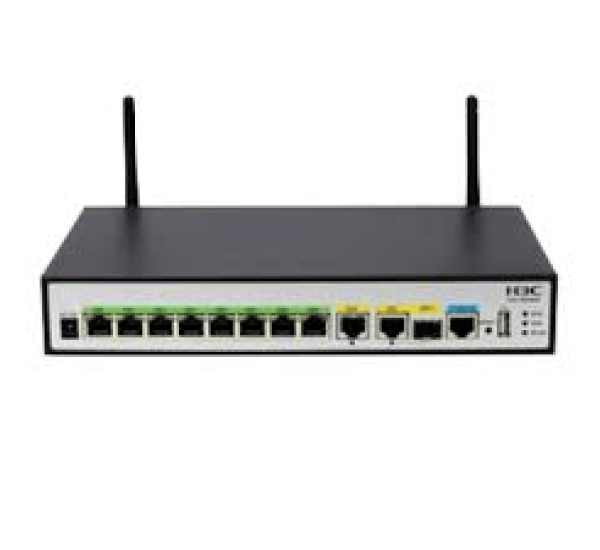

H3C MSR800 Multi-Service Router
The H3C MSR800 is a compact multi-service router designed for small and medium enterprise branch offices, government branch networks, commercial outlets and other organizations requiring an integrated WAN gateway. It combines Gigabit Ethernet connectivity, routing, firewall and secure networking capabilities in a compact desktop-style platform.
The standard MSR800 configuration provides 1x GE WAN Combo interface, 4x GE LAN interfaces and 1x Combo SFP interface. The LAN Ethernet ports can also be configured for WAN connectivity according to the network design, providing additional flexibility when deploying the router at branch locations.
Key Features
- 1x GE WAN Combo interface
- 4x GE LAN interfaces
- 1x Combo SFP interface
- 200Kpps forwarding performance
- 800Mbps firewall performance
- 40Mbps encryption performance
- Up to 250,000 NAT sessions
- 256MB DDR3 memory
- 128MB Flash storage
- 1x USB 2.0 interface with support for 3G/4G modem expansion
- 1x console interface
- Compact 266 × 161 × 43.6mm chassis
Technical Specifications
| Product Model |
H3C MSR800 |
| Product Type |
Multi-Service Router / Enterprise Branch Router |
| Forwarding Performance |
200Kpps |
| Firewall Performance |
800Mbps |
| Encryption Performance |
40Mbps |
| NAT Sessions |
Up to 250,000 |
| GE WAN |
1x GE Combo |
| GE LAN |
4x GE |
| SFP |
1x Combo SFP |
| Memory |
256MB DDR3 |
| Flash |
128MB |
| USB |
1x USB 2.0 |
| Console |
1x Console |
| Power |
External AC adapter, 100–240V AC, 50/60Hz |
| Rated Power |
12W |
| Dimensions |
266 × 161 × 43.6mm |
| Operating Temperature |
0°C to 45°C |
| Operating Humidity |
5% to 90%, non-condensing |
WAN and Branch Networking
The H3C MSR800 is intended for branch-office and small enterprise WAN deployments where a compact gateway is required. Its Gigabit WAN and LAN connectivity allows it to connect branch users and local network equipment to upstream enterprise or Internet infrastructure.
The Combo interface architecture provides additional flexibility when copper or fiber connectivity is required. The USB 2.0 interface can also be used for supported 3G/4G modem expansion, making the platform suitable for backup connectivity or locations where wired WAN deployment may require additional flexibility.
Security and VPN Applications
With integrated firewall and encryption capabilities, the MSR800 can be deployed as a secure branch gateway for enterprise WAN environments. H3C documents the MSR800 for applications including branch-to-headquarters VPN connectivity, including IPSec and ADVPN-based networking scenarios.
Deployment Applications
- Small and medium enterprise branch offices
- Government branch and district offices
- Retail and commercial chain outlets
- Enterprise WAN gateways
- Branch-to-headquarters VPN connectivity
- Internet access gateways
- 3G/4G backup connectivity deployments
- Compact Gigabit routing environments
Compatibility and Configuration Considerations
The standard H3C MSR800 should not be confused with the MSR800-W, MSR800-10 or MSR800-10-W variants. The MSR800 provides 4 GE LAN interfaces, while the MSR800-10 family provides a higher port count. When ordering, confirm the exact model and required interface configuration.
For fiber connectivity, the Combo SFP interface should be matched with a compatible SFP transceiver and the appropriate fiber type, wavelength and transmission distance for the network design.
H3C MSR800 Price in Bangladesh
For the latest H3C MSR800 price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty and stock status.
Contact:
sales@datacom.com.bd
The H3C MSR800 is a practical choice for organizations seeking a compact Gigabit multi-service router for branch connectivity, secure WAN access and small enterprise networking.
