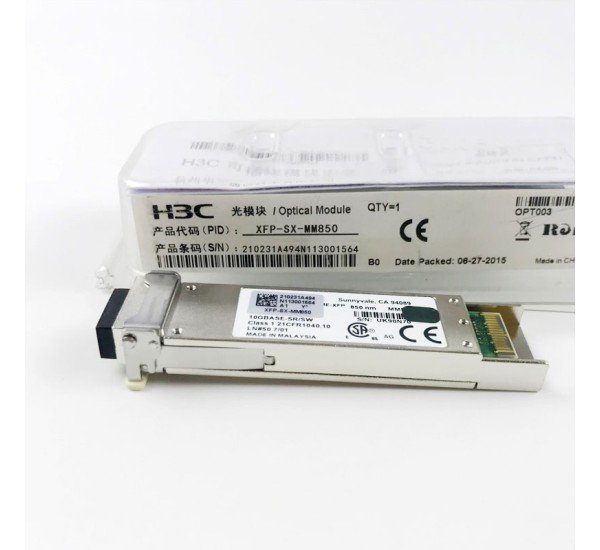

H3C XFP-SX-MM850 10Gbps 850nm 300m DOM LC Transceiver Module

The H3C XFP-SX-MM850 is a 10Gbps optical transceiver designed for short-range Ethernet connectivity over multimode fiber. It operates at an 850nm wavelength and supports transmission distances of up to 300 meters over compatible 50/125µm multimode fiber.

The module uses the XFP form factor with a duplex LC optical interface. H3C specifies a data-rate range of 9.95Gbps to 10.31Gbps for the XFP-SX-MM850, making it suitable for compatible 10GbE network equipment and short-distance optical links. :contentReference[oaicite:0]{index=0}

H3C XFP-SX-MM850 10Gbps Optical Connectivity

The XFP-SX-MM850 is designed for high-speed optical connections within data centers, enterprise networks, and other infrastructure where 10Gbps connectivity is required over multimode fiber.

At 850nm, the transceiver is intended for multimode fiber transmission. H3C specifies up to 300 meters when used with 50/125µm multimode fiber having a 2000 MHz·km modal bandwidth. Shorter maximum distances apply with lower-bandwidth fiber specifications. :contentReference[oaicite:1]{index=1}

300m Multimode Fiber Transmission

The module provides a maximum transmission distance of 300 meters under the specified 50/125µm MMF conditions. This makes it appropriate for short-reach optical connections between compatible switches, servers, aggregation equipment, and other network devices.

850nm Optical Transmission

The XFP-SX-MM850 uses an 850nm optical wavelength. The optical interface is designed for multimode fiber rather than single-mode fiber, so compatible MMF cabling should be used for the intended transmission distance.

Duplex LC XFP Interface

The transceiver uses a duplex LC connector for optical connectivity. The XFP form factor provides a removable optical interface for compatible H3C equipment supporting XFP modules.

DOM Monitoring

The XFP-SX-MM850 is available with digital optical monitoring functionality in compatible versions, allowing supported host equipment to access optical operating information. DOM availability and the specific monitored parameters depend on the transceiver version and host platform.

Technical Specifications

Applications

• 10GbE data center networks
• Enterprise network connectivity
• Switch-to-switch optical links
• Server-to-switch connections
• Network aggregation links
• Short-distance multimode fiber infrastructure

Compatibility

The H3C XFP-SX-MM850 is designed for compatible H3C equipment supporting XFP optical transceiver modules. H3C documentation lists the XFP-SX-MM850 among its XFP optical transceiver modules and specifies the applicable optical characteristics and transmission distances. :contentReference[oaicite:2]{index=2}

Before installation, verify the exact H3C device, interface type, supported transceiver list, and required fiber specifications to ensure compatibility.

Buy H3C XFP-SX-MM850 in Bangladesh

Datacom Technologies (BD) supplies H3C optical transceivers, networking equipment, fiber connectivity products, and enterprise IT hardware in Bangladesh. The H3C XFP-SX-MM850 is suitable for compatible 10Gbps network equipment requiring short-range multimode fiber connectivity.

For corporate and project requirements, customers can contact Datacom Technologies (BD) for product selection assistance, technical consultation, and professional networking equipment supply.
