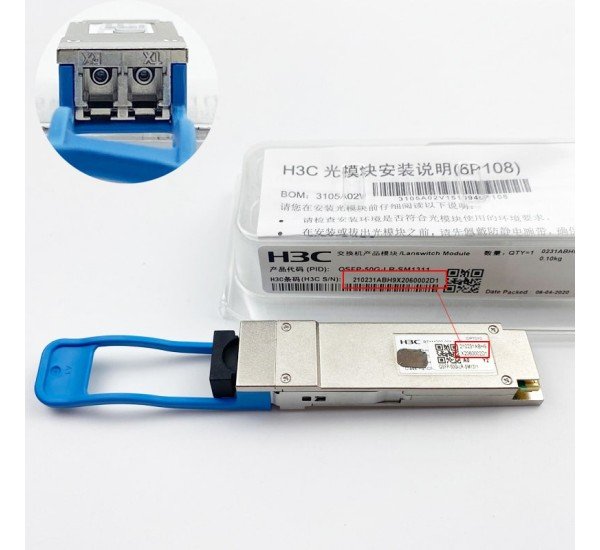

H3C QSFP-50G-LR-SM1311 50Gbps 10km Optical Transceiver
The H3C QSFP-50G-LR-SM1311 is a 50Gbps optical transceiver designed for long-reach network connectivity over single-mode fiber. It uses the QSFP28 form factor and supports a transmission distance of up to 10km using 9/125µm single-mode fiber.
The module operates at a central wavelength of 1311nm and uses a dual LC optical interface. It is designed for compatible H3C networking equipment requiring 50Gbps optical connectivity over long-distance fiber links. :contentReference[oaicite:0]{index=0}
H3C QSFP-50G-LR-SM1311 50Gbps Optical Connectivity
The QSFP-50G-LR-SM1311 provides high-bandwidth connectivity for network environments where a 50Gbps link is required over single-mode fiber. Its long-reach optical design supports connections of up to 10km, making it suitable for extended network links and data center infrastructure.
The module's 1311nm optical wavelength and single-mode fiber design are intended for long-distance transmission where multimode fiber-based short-reach solutions are not appropriate.
10km Single-Mode Fiber Transmission
The transceiver supports up to 10km transmission over 9/125µm single-mode fiber. Actual link performance depends on the installed fiber, connector condition, optical loss, and the optical characteristics of the connected equipment.
1311nm Optical Wavelength
The QSFP-50G-LR-SM1311 operates at a nominal 1311nm wavelength, providing the optical characteristics required for the specified 10km single-mode fiber link.
Dual LC Optical Interface
The module uses a dual LC optical interface for the fiber connection. The two optical paths provide separate transmit and receive channels for full-duplex communication.
QSFP28 Form Factor
The QSFP28 form factor provides a compact optical interface for compatible H3C networking equipment. Before installation, verify that the target device supports the QSFP-50G-LR-SM1311 and its required 50Gbps operating mode.
Technical Specifications
| Specification | Details |
| Brand | H3C |
| Model | QSFP-50G-LR-SM1311 |
| Product Type | 50Gbps QSFP28 Optical Transceiver |
| Form Factor | QSFP28 |
| Transmission Rate | 50Gbps |
| Central Wavelength | 1311nm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Fiber Diameter | 9/125µm |
| Maximum Distance | 10km |
| Connector | Dual LC |
Applications
- 50GbE network connectivity
- Enterprise network infrastructure
- Data center interconnects
- Network aggregation
- Long-distance single-mode fiber links
- High-bandwidth network backbone connections
Compatibility
The H3C QSFP-50G-LR-SM1311 is designed for compatible H3C networking equipment supporting QSFP28 optical transceiver modules. H3C's optical module documentation identifies this exact model with a 1311nm wavelength, 9/125µm SMF, dual LC interface, and 10km transmission distance. :contentReference[oaicite:1]{index=1}
Verify the exact switch, router, QSFP28 port, supported transceiver list, and fiber infrastructure before deployment.
Buy H3C QSFP-50G-LR-SM1311 in Bangladesh
Datacom Technologies (BD) supplies H3C optical transceivers, enterprise networking equipment, fiber connectivity products, and data center hardware in Bangladesh. The H3C QSFP-50G-LR-SM1311 is suitable for compatible 50Gbps network environments requiring 10km single-mode fiber connectivity.
For corporate and project requirements, customers can contact Datacom Technologies (BD) for product selection assistance, technical consultation, and professional networking equipment supply.
