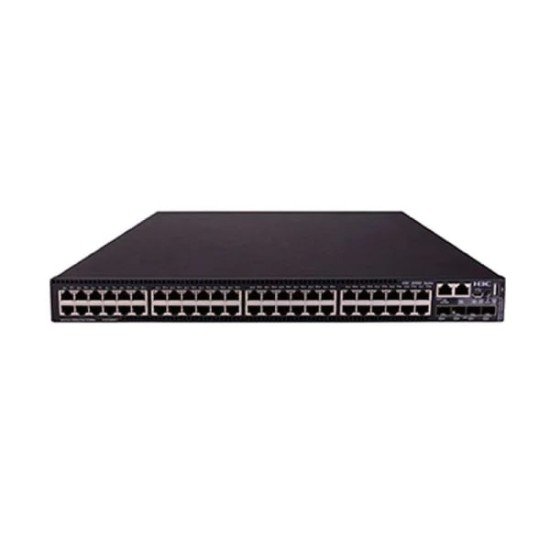

H3C S5560X-54C-PWR-EI Gigabit Ethernet Switch

H3C S5560X-54C-PWR-EI Gigabit Ethernet Switch

Specification

Specification	Details
Product Type	Gigabit Ethernet Switch
Application Layer	Layer 3
Transmission Rate	10/100/1000 Mbps
Switching Capacity	598 Gbps / 5.98 Tbps
Packet Forwarding Rate	252 Mpps
MAC Address Table	64K
Port Structure	Modular
Port Quantity	52 ports
Port Description	48 × 10/100/1000Base-T autosensing Ethernet ports, 4 × 10G/1G BASE-X SFP+ ports
Console Ports	1 × RJ-45 Console port, 1 × Micro-USB Console port (only one can be active at a time; Micro-USB has priority)
Expansion Slot	1 expansion slot supporting various interface modules, including: - 2-port 40GE QSFP+ interface module - 2-port 25G SFP28 interface module - 2-port 10G SFP+ interface module - 2-Port 10G BASE-T Interface Card with MACSec - 2-Port 10G SFP+ Interface Card with MACSec - 4-Port 10/100/1000BASE-T Ethernet, 6-Port SFP (2-Port Combo) Interface Module - 8-Port 10G SFP+ with MACSec Interface Module - 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module - 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module
Power Supply	Supports dual modular power supplies with options for AC and DC inputs. Specific power modules include: - PSR360-56A/PSR720-56A (AC): Rated 100-240 VAC @ 50/60 Hz - PSR1110-56A (AC): Rated 115-240 VAC @ 50/60 Hz - PSR560-56D (DC): Rated -48 to -60 VDC
Power over Ethernet (PoE)	Supports PoE with a maximum power consumption of up to 1440 W when equipped with dual 1110 W AC power modules, providing ample power for connected devices
Dimensions (H × W × D)	43.6 × 440 × 460 mm (1.72 × 17.32 × 18.11 in)
Weight	≤ 9.6 kg (21.16 lb)
Operating Temperature	0ºC to 45ºC (32°F to 113°F); for altitudes between 0m and 5000m, the maximum operating temperature decreases by 0.33ºC for every 100m increase in altitude
Storage Temperature	-40ºC to 70ºC (-40ºF to 158ºF)
Operating & Storage Humidity	5% RH to 95% RH, non-condensing

Description:

The H3C S5560X-54C-PWR-EI is engineered to address the dynamic requirements of contemporary enterprise networks, delivering a blend of performance, scalability, and versatility. As a Layer 3 switch, it efficiently manages data routing within complex network infrastructures, ensuring seamless communication across various network segments.

Key Features:

1. High Port Density: Equipped with 48 Gigabit Ethernet ports and 4 SFP+ 10 Gigabit uplink ports, the switch supports high-speed data transmission and flexible network configurations.
2. Modular Design: The inclusion of an expansion slot allows for the integration of additional interface modules, enabling network administrators to tailor the switch's capabilities to specific organizational needs. This modularity ensures adaptability to future network expansions and technological advancements.
3. Power over Ethernet (PoE): With robust PoE support, the S5560X-54C-PWR-EI can power devices such as IP phones, wireless access points, and security cameras directly through Ethernet cables. This feature simplifies network deployment by reducing the need for separate power sources for connected devices.
4. Advanced Security Features: The switch offers comprehensive security mechanisms, including support for various Access Control Lists (ACLs), VLAN-based security policies, and MAC address filtering. These features safeguard the network against unauthorized access and potential threats.
5. Quality of Service (QoS): Enhanced QoS capabilities ensure the prioritization of critical network traffic, facilitating the smooth operation of applications that require high bandwidth and low latency, such as VoIP and video conferencing.
6. Intelligent Resilient Framework (IRF): IRF technology enables the virtualization of multiple switches into a single logical device, simplifying network management and enhancing redundancy. This feature contributes to improved network reliability and reduced downtime.

Where It Can Be Used:

• Enterprise Networks: Ideal for large-scale LAN and data center environments. Supports virtualization and converged networking.
• Campus Networks: Suitable for educational institutions and multi-building networks. Centralized management with simplified maintenance.
• Security-Critical Environments: Great for CCTV camera deployments and surveillance setups. Ensures high-speed data transmission with enhanced security.

Installation Steps:

1. Preparation: Unbox and inspect the device for any damage. Check accessories and documentation.
2. Mounting: Mount the switch in a standard 19-inch rack or place it on a flat surface.
3. Power Connection: Connect to a power source using the provided power cord. Verify that the power LED is on.
4. Network Configuration: Connect network cables to the desired ports. Access the switch through the console port for initial configuration.
5. Basic Configuration: Set up IP addressing and VLAN configurations. Configure PoE settings as needed. Save and verify the configuration.

User Experience:

• Effortless Management: Easy-to-use web-based interface and command-line options.
• High Stability: Reliable performance with minimal downtime.
• Energy Efficiency: Supports Energy-Efficient Ethernet (EEE) for reduced power consumption.
• Versatile Applications: Meets diverse networking needs with flexibility and scalability.

Why Choose H3C S5560X-54C-PWR-EI?

1. Performance and Scalability: Handles heavy data loads with robust performance.
2. Advanced Features: Offers powerful routing and PoE capabilities.
3. Ease of Management: Intuitive management options for both beginners and professionals.
4. Cost-Effective Solution: Combines performance and features without breaking the budget.
5. Reliability and Support: Backed by H3C’s reliable warranty and support services.

Buy H3C S5560X-54C-PWR-EI Gigabit Ethernet Switch from Datacom BD

Get the original H3C S5560X-54C-PWR-EI Gigabit Ethernet Switch in Bangladesh from Datacom BD. We offer a wide range of the latest Gigabit Ethernet Switch at competitive prices. Order online or visit our office to get yours at the best price. This H3C Gigabit Ethernet Switch comes with a 3-years warranty.

Get in Touch with Datacom Technologies (BD)

• ? Call/WhatsApp: 01748173213
• ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com

What is the price of H3C S5560X-54C-PWR-EI Gigabit Ethernet Switch in Bangladesh?

The latest price of H3C S5560X-54C-PWR-EI Gigabit Ethernet Switch in Bangladesh starts from Taka 190,000 - 245,000 Taka (Estimated), depending on model, capacity and specification. you can buy the original H3C Gigabit Ethernet Switch at the best price from our website or visit our office.
