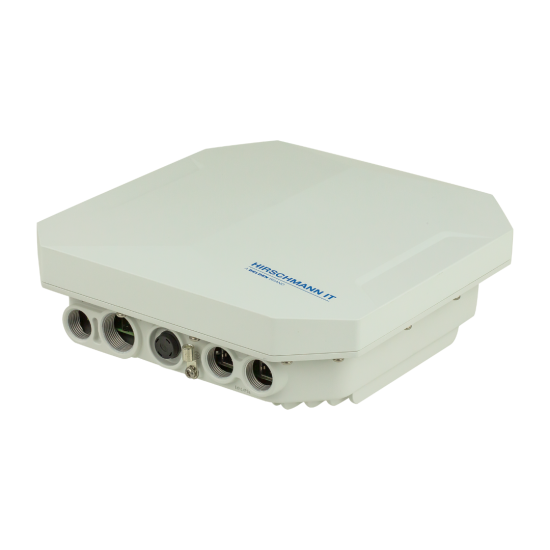

Hirschmann DAP645-RW Industrial Outdoor Wireless Access Point (802.11ac Wave 2, Dragonfly Series)
The Hirschmann DAP645-RW Industrial Outdoor Wireless Access Point from Datacom Technologies BD is a rugged, high-performance outdoor Wi-Fi solution designed for demanding industrial and enterprise outdoor networks. Featuring IEEE 802.11ac Wave 2 technology with dual-band capability, multiple spatial streams, and external antenna connections, it delivers high throughput, advanced wireless features, and robust outdoor reliability — ideal for factory yards, campuses, logistics hubs, transportation sites, and large outdoor coverage areas.
Specification Table
| Feature | Details |
|---|
| Model | Hirschmann DAP645-RW |
| Series | Hirschmann Dragonfly Outdoor Access Points |
| Wi-Fi Standard | IEEE 802.11ac Wave 2 (backward compatible with 802.11a/b/g/n) |
| Frequency Bands | Dual-band: 2.4 GHz & 5 GHz |
| MIMO | 2×2 MIMO (2 spatial streams per band) |
| Maximum Data Rate | Up to ~1.2 Gbps combined throughput (subject to environment & configuration) |
| Antennas | External antenna ports (N-female) for flexible coverage |
| Ethernet | 1× Gigabit Ethernet RJ45 (PoE PD) + 1× SFP slot |
| Wireless Features | Band steering, auto channel selection, load balancing, L2 roaming, mesh support |
| Security | WPA2/WPA3, 802.1X, AES/TKIP, ACL, rogue AP detection & containment |
| Management | Web UI, SNMP, Zero-Touch Provisioning (ZTP), HiVision/DAC software |
| Protection | IP67 rugged enclosure for outdoor use |
| Operating Temperature | -40 °C to +65 °C (wide-temperature readiness) |
| Mounting | Pole or wall mount |
Hirschmann DAP645-RW Description
The Hirschmann DAP645-RW is an industrial-grade outdoor access point engineered to provide reliable, high-performance wireless connectivity in harsh environments. Utilizing IEEE 802.11ac Wave 2 dual-band technology with 2×2 MIMO, it supports combined wireless data rates of up to approximately 1.2 Gbps — enabling stable, high-throughput connections for mobile clients, industrial devices, and wireless backhaul links.
Equipped with external antenna ports, the DAP645-RW allows flexible antenna selection and placement to optimize coverage patterns — making it suitable for large outdoor areas such as factory yards, campus grounds, logistic hubs, and transportation terminals. Its rugged IP67-rated enclosure and wide-temperature tolerance ensure dependable performance even under extreme weather, dust, or vibration conditions.
Advanced wireless features such as band steering, auto channel/power optimization, load balancing, roaming support, and mesh connectivity make network expansion and topology design efficient and scalable. Additionally, enterprise-level security standards — including WPA3, 802.1X authentication, ACL rules, and rogue AP detection — help protect outdoor WLANs against unauthorized access and interference.
Key Features
• IEEE 802.11ac Wave 2 dual-band access point for high-speed outdoor wireless
• Combined throughput up to ~1.2 Gbps — reliable for heavy wireless usage
• External antenna ports for flexible RF planning and extended outdoor coverage
• Gigabit Ethernet + SFP uplink for robust backhaul connectivity
• Outdoor-ready IP67 rugged housing with wide-temperature operation
• Wireless features: band steering, auto channel/power selection, load balancing, roaming, mesh support
• Enterprise-grade security: WPA2/WPA3, 802.1X, ACL, rogue AP detection & containment
• Easy management via Web UI, SNMP, Zero-Touch Provisioning, and HiVision/DAC support
Where It Can Be Used
• Outdoor factory and industrial WLAN coverage zones
• Large campuses, enterprise grounds, and corporate parks
• Logistics hubs, loading docks, yard coverage areas
• Transportation environments — terminals, bus/train platforms, parking areas
• Outdoor wireless backhaul or point-to-multipoint links
• Public outdoor hotspots, parks, event spaces
• Wireless extension for CCTV, IoT sensors, mobile industrial clients
