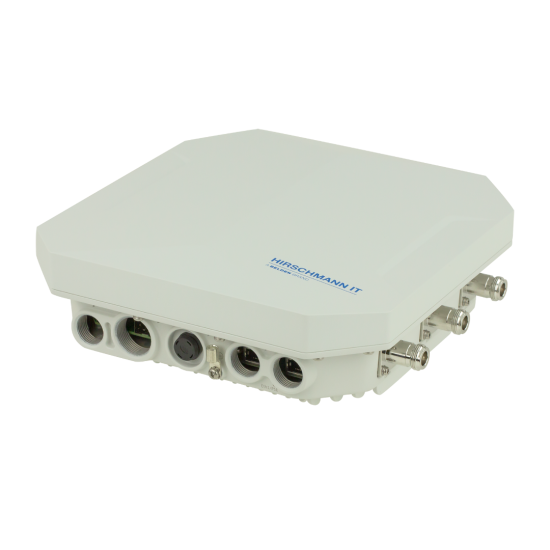

Hirschmann DAP647-RW Industrial Outdoor Wireless Access Point (802.11ax Wi-Fi 6, Dragonfly Series)
The Hirschmann DAP647-RW Industrial Outdoor Wireless Access Point from Datacom Technologies BD is a high-performance outdoor Wi-Fi 6 (802.11ax) access point designed for rugged environments requiring reliable wireless coverage with high throughput and advanced WLAN features. It supports dual-band operation with external antenna connectivity, up to multi-gigabit throughput, and industrial-grade protection — making it ideal for outdoor campus networks, industrial yards, transportation hubs, large venues, and wireless backhaul connectivity. securex.hk
Specification Table
| Feature | Details |
|---|
| Model | Hirschmann DAP647-RW |
| Series | Hirschmann Dragonfly Outdoor Wi-Fi Access Points |
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac securex.hk |
| Frequency Bands | Dual-band: 2.4 GHz & 5 GHz securex.hk |
| Data Rate | Up to ~2.975 Gbps combined (approx. 2.402 Gbps @ 5 GHz + ~573 Mbps @ 2.4 GHz) securex.hk |
| MIMO | 4×4:4 @ 5 GHz & 2×2:2 @ 2.4 GHz securex.hk |
| Antennas | External antenna connectors with 6× N-female connectors (extended antenna) securex.hk |
| Ethernet Interfaces | 1× 2.5 GbE RJ45 PD (PoE in), 1× 1 GbE RJ45 PSE (PoE out), 1× 1 GbE SFP slot securex.hk |
| Wireless Features | Auto channel selection, band steering, load balancing, L2/L3 roaming, mesh P2P/P2MP support securex.hk |
| Security | WPA2/WPA3, 802.1X, captive portal, ACL, rogue AP detection & containment securex.hk |
| Management | Web UI, SNMP, Zero-Touch Provisioning (ZTP), HiVision & DAC Software support securex.hk |
| Operating Temperature | -40 °C to +65 °C (wide-temp) securex.hk |
| Protection | IP67 outdoor-ready rugged housing securex.hk |
| Mounting | Pole or wall mount options securex.hk |
Hirschmann DAP647-RW Description
The Hirschmann DAP647-RW is a robust outdoor access point built for modern high-capacity wireless networks in industrial and enterprise outdoor environments. Featuring 802.11ax Wi-Fi 6 technology, it delivers multi-gigabit throughput with dual-band radios and advanced 4×4 (5 GHz) and 2×2 (2.4 GHz) MIMO support — capable of handling heavy wireless traffic, dense client environments, and high-bandwidth applications. securex.hk
Its external antenna connectors support up to six independent antennas, allowing optimized coverage and directional configurations — ideal for extended outdoor WLAN zones, backhaul links, or tailored propagation patterns. The rugged IP67 enclosure ensures reliable operation in harsh environmental conditions, while the wide operating temperature range extends its usability in extremes of heat and cold. securex.hk
The DAP647-RW includes industrial-grade WLAN features such as auto channel/power control, band steering, client load balancing, roaming (L2/L3), and mesh networking — making it effective for large-area or distributed outdoor deployments. Its scalable management options (web UI, SNMP, ZTP, HiVision/DAC software) simplify configuration, monitoring, and maintenance. securex.hk
Key Features
• Wi-Fi 6 (802.11ax) dual-band access point for high throughput and efficiency securex.hk
• Combined data rates up to approximately 2.975 Gbps securex.hk
• External antenna connectors with 6× N-female for flexible outdoor coverage securex.hk
• Dual Ethernet ports (2.5 GbE & 1 GbE) plus SFP uplink for robust backhaul securex.hk
• Advanced wireless features: roaming, band steering, load balancing, mesh support securex.hk
• High-security support: WPA3, 802.1X, ACL, captive portal, rogue AP mitigation securex.hk
• Rugged IP67 housing with wide temperature tolerance for outdoor installs securex.hk
• Management via Web UI, SNMP, ZTP, Hirschmann HiVision & DAC software securex.hk
Where It Can Be Used
• Outdoor campus WLAN: parks, open enterprise zones, university grounds
• Industrial sites: factories, yards, loading docks needing outdoor Wi-Fi coverage
• Transportation hubs: train/bus terminals, parking areas, outdoor passenger zones
• Wireless backhaul or point-to-multipoint links using external antennas
• IoT sensor networks, outdoor CCTV Wi-Fi backhaul
• Large outdoor events, hospitality zones requiring robust high-capacity Wi-Fi
