Hirschmann SPIDER SL-20-04T1M29999SY9HHHH
  • Product id:  3535
  • Stock: In Stock
  • Brand: Belden / Hirschmann
  • Model: SPIDER-SL-20-04T1M29999SY9HHHH
Payment Option
Message
on Whatsapp

Key Features

  • 5-Port Industrial Ethernet Connectivity – 4x 10/100BASE-TX RJ45 ports plus 1x 100BASE-FX multimode fiber port with SC connector.
  • Unmanaged Plug-and-Play Operation – Provides automatic negotiation, auto-crossing, auto-polarity and store-and-forward switching for simple industrial network deployment.
  • Long-Distance Multimode Fiber – Supports 100BASE-FX multimode fiber connectivity up to 5 km with compatible 50/125 µm fiber.
  • Compact DIN-Rail Industrial Design – Fanless IP30 housing with 9.6–32 VDC input, 0°C to +60°C operation and compact 26 mm width.
Hotline Support: (10am - 8pm)
Get a Quote: Our team is ready to help
Email: sales@datacom.com.bd
Description

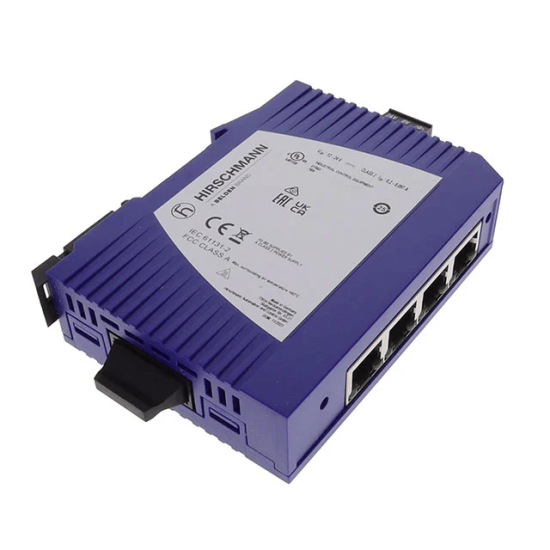

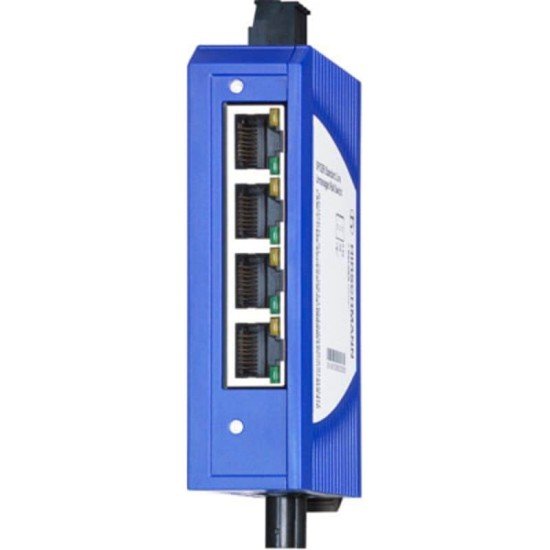

Hirschmann SPIDER SL-20-04T1M29999SY9HHHH Industrial Ethernet Switch

The Hirschmann SPIDER SL-20-04T1M29999SY9HHHH, also identified as SSL20-4TX/1FX and product code 942132007, is a compact unmanaged Industrial Ethernet Rail Switch designed for reliable Fast Ethernet connectivity in industrial environments. It combines four 10/100BASE-TX copper ports with one 100BASE-FX multimode fiber port using an SC connector.

As part of the Hirschmann SPIDER III family, this switch provides straightforward plug-and-play networking without complex configuration. Its fanless design, DIN-rail mounting, store-and-forward switching and industrial DC power input make it suitable for machine networking, factory automation, transportation systems and other industrial Ethernet installations.

Technical Specifications

Brand Hirschmann
Series SPIDER III
Model SPIDER-SL-20-04T1M29999SY9HHHH
Product Code 942132007
Product Type Unmanaged Industrial Ethernet Rail Switch
Switching Type Fast Ethernet, Store-and-Forward
Total Ports 5
Copper Ports 4 x 10/100BASE-TX
Copper Connector RJ45
Fiber Port 1 x 100BASE-FX
Fiber Type Multimode
Fiber Connector SC
Fiber Distance Up to 5 km with 50/125 µm multimode fiber under specified conditions
Twisted-Pair Distance Up to 100 m
Network Topology Line and star
Switching Features Auto-negotiation, auto-crossing, auto-polarity
Management Unmanaged
Power Input 12/24 VDC nominal
Operating Voltage 9.6–32 VDC
Maximum Current Consumption 100 mA at 24 VDC
Maximum Power Consumption 2.4 W
Operating Temperature 0°C to +60°C
Storage/Transport Temperature -40°C to +70°C
Relative Humidity 10–95%, non-condensing
Protection Rating IP30
Housing Plastic, fanless design
Mounting DIN rail
Dimensions 26 x 102 x 79 mm
Weight Approximately 120 g
Diagnostics LED indicators for power, link status, data and data rate

Four 10/100BASE-TX Copper Ports

The switch provides four 10/100BASE-TX RJ45 interfaces for connecting industrial controllers, PLCs, HMIs, automation devices, computers and other Fast Ethernet equipment. Auto-negotiation, auto-crossing and auto-polarity simplify connection and reduce the need for manual port configuration.

100BASE-FX Multimode Fiber Connectivity

One integrated 100BASE-FX multimode fiber port with an SC connector provides optical Ethernet connectivity where longer transmission distances or improved immunity to electromagnetic interference are required. With compatible 50/125 µm multimode fiber, the specified transmission distance can reach up to 5 km.

The fiber distance depends on the installed fiber type and optical link conditions. The manufacturer specifies up to 4 km for 62.5/125 µm multimode fiber under the corresponding link-budget conditions, while 50/125 µm multimode fiber can reach up to 5 km.

Unmanaged Plug-and-Play Operation

The Hirschmann SPIDER SL-20-04T1M29999SY9HHHH does not require network software configuration. It automatically handles supported Ethernet negotiation and switching functions, making it appropriate for installations where simple and dependable connectivity is preferred over advanced managed-switch features.

Compact DIN-Rail Installation

With dimensions of only 26 x 102 x 79 mm and a weight of approximately 120 g, the SPIDER switch is designed for space-constrained industrial control cabinets and machine installations. DIN-rail mounting enables convenient integration alongside PLCs, industrial controllers and other automation components.

Industrial Power and Environmental Design

The switch operates from a 9.6–32 VDC input range and has a maximum power consumption of approximately 2.4 W. Its fanless construction eliminates the need for mechanical cooling components, while the IP30 enclosure is suited to protected industrial cabinet and control-panel installations.

Industrial Applications

  • Factory automation networks
  • Machine-to-machine Ethernet communication
  • PLC and industrial controller networking
  • Industrial control cabinets
  • Building management networks
  • Transportation and infrastructure systems
  • Fiber-linked machine networks
  • Industrial Ethernet line and star topologies

Compatibility and Installation Considerations

The SPIDER SL-20-04T1M29999SY9HHHH is an unmanaged Fast Ethernet switch, so connected devices should be compatible with 10/100 Mbps Ethernet. The four copper ports use standard RJ45 connections, while the fiber connection requires compatible 100BASE-FX multimode fiber with an SC connector.

This exact model should not be confused with other SPIDER SL-20 variants that use different copper port counts, Gigabit interfaces, single-mode fiber or different temperature specifications. Confirm the complete Hirschmann part number before purchasing or replacing an existing switch.

Hirschmann SPIDER SL-20-04T1M29999SY9HHHH Price in Bangladesh

For the latest Hirschmann SPIDER SL-20-04T1M29999SY9HHHH price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty and stock status.
