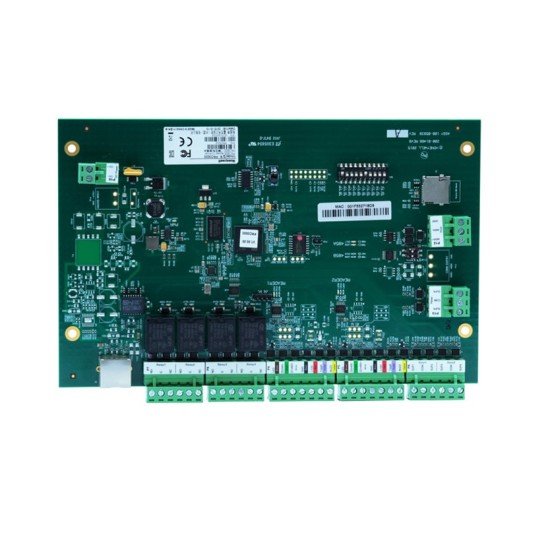

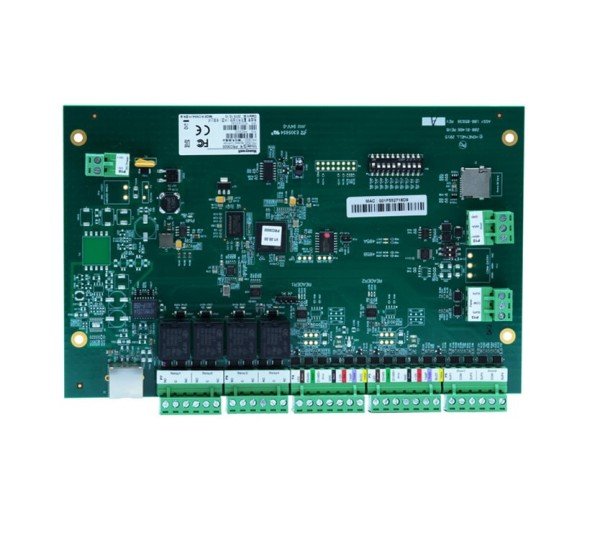

Honeywell PRO3000 Intelligent Controller
Specification Table
| Feature |
Details |
| Model |
Honeywell PRO3000 Intelligent Controller |
| Controller Type |
Intelligent Access Control Panel |
| Number of Doors Supported |
Up to 16 doors (via expansion modules) |
| Reader Interface |
Wiegand, Clock/Data |
| Max Readers |
32 (2 per door with expansion) |
| Max Cardholders |
100,000 |
| Max Transaction Storage |
50,000 events |
| Communication |
TCP/IP, RS-485 |
| Inputs/Outputs |
16 supervised inputs, 12 outputs |
| Power Supply |
12VDC or 24VDC |
| Operating Temperature |
0°C to 49°C (32°F to 120°F) |
| Dimensions |
17" x 14.25" x 3.25" |
| Software Compatibility |
Honeywell WIN-PAK® |
? Description
The Honeywell PRO3000 Intelligent Controller is a powerful, scalable access control solution designed to meet the needs of medium to large-sized commercial buildings, government facilities, and enterprise-level applications. With its ability to manage up to 16 doors and 32 readers through expansion, it offers a robust and flexible security infrastructure. This controller supports multiple card formats and communication protocols, including Wiegand and Clock/Data, making it adaptable to various security setups.
One of the key highlights of the PRO3000 is its large storage capacity—handling up to 100,000 cardholders and 50,000 transaction events. It also features supervised inputs and programmable outputs for integration with intrusion and fire systems. Communication via TCP/IP or RS-485 ensures reliable connectivity across networks.
Compatible with Honeywell WIN-PAK® access control software, the
PRO3000 enables centralized management, real-time monitoring, and detailed reporting of all access control activity. Its sturdy design and secure mounting options make it suitable for demanding environments. Whether you’re expanding an existing access control system or deploying a new one, the Honeywell PRO3000 provides the reliability, flexibility, and scalability needed to protect your assets and personnel.
Key Features of Honeywell PRO3000 Controller
- Advanced Access Control: Supports up to 16 readers per controller (8 doors IN/OUT) for enhanced scalability.
- High-Security Encryption: Features secure 128-bit AES communication between controller and devices.
- Multiple Connectivity Options: Ethernet, RS-485, and optional Wi-Fi modules.
- Large Storage Capacity: Supports up to 100,000 cardholders and 500,000 event logs.
- Web-Based Management: Centralized browser-based access with real-time monitoring and control.
- Integration Ready: Compatible with Honeywell’s WIN-PAK® and other third-party security systems.
- Tamper-Proof Design: Built-in tamper sensors and secure housing for physical protection.
- Alarm Management: Real-time alarm reporting and customizable event triggers.
Where it Can Be Used?
- Corporate Offices: Securing main entrances, IT rooms, and restricted areas.
- Industrial Facilities: Managing high-risk zones and tracking personnel.
- Government Buildings: Ensuring compliance with high-security protocols.
- Educational Institutions: Controlling access to labs, libraries, and admin offices.
- Healthcare Facilities: Protecting patient data zones and pharmacy access.
- Commercial Complexes: Managing tenant and visitor access securely.
Installation Steps
- Site Assessment: Determine the number of doors and readers required.
- Mounting the Controller: Secure the PRO3000 inside a protected cabinet or enclosure.
- Wiring: Connect power supply, readers, locks, door contacts, and request-to-exit devices.
- Networking: Connect to LAN or RS-485 network for communication.
- Software Configuration: Install and configure WIN-PAK or compatible software.
- Testing: Check door functionality, user permissions, and alarm responses.
- Go Live: Launch the access control system and train operators/admins.
User Experience
Users and administrators benefit from fast, reliable access control and easy management. The intuitive web interface allows real-time monitoring, remote management, and reporting. Users experience minimal delays with card swipes, and security teams can quickly respond to alerts or unauthorized access events.
Why Choose Honeywell PRO3000 Intelligent Controller?
- Trusted Brand: Backed by Honeywell’s global reputation in building automation and security.
- Scalable & Flexible: Suitable for both small installations and large enterprise deployments.
- High Reliability: Designed for 24/7 uptime with robust hardware and fail-safe operations.
- Future-Ready: Easily integrates with emerging technologies and supports firmware updates.
- Enhanced Security: AES encryption and tamper-proofing ensure strong protection against threats.
