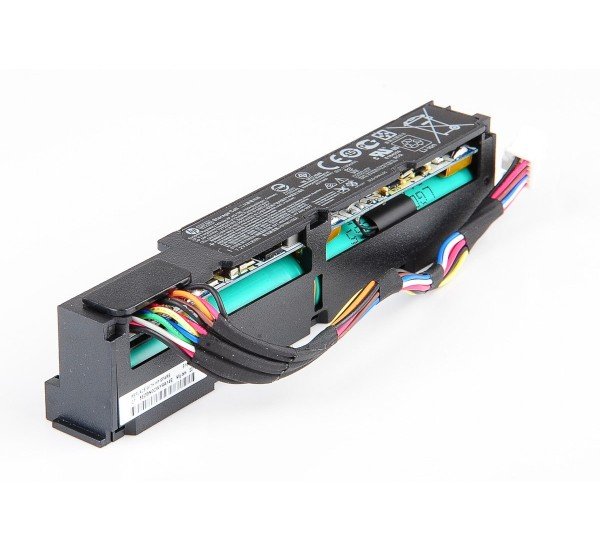

HPE DL380 Gen9 RAID Controller Battery – 96W Smart Storage Battery, 145mm Cable

The HPE DL380 Gen9 RAID Controller Battery is a 96W Smart Storage Battery designed to provide backup power for Flash-Based Write Cache (FBWC) on compatible HPE Smart Array controllers. The centralized battery architecture can support multiple drive controllers in the server.

HPE identifies the 96W Smart Storage Battery with a 145mm cable for DL/ML/SL Generation 9 servers. It connects to the system I/O board and is designed to help preserve cached storage data during an unexpected server power loss.

HPE DL380 Gen9 RAID Controller Battery Specifications

HPE DL380 Gen9 Smart Storage Battery Features

96W FBWC Backup Power

The 96W Smart Storage Battery provides backup power for the flash-backed write cache of compatible HPE Smart Array controllers. During an unplanned power loss, the battery helps provide the power required to preserve cached data.

Centralized Battery Architecture

One Smart Storage Battery can provide backup power for multiple compatible drive controllers or devices within a supported Gen9 server. HPE specifically notes that the battery can support multiple Smart Array controllers in the server.

145mm Cable Design

This version uses a 145mm (5.7-inch) cable and connects to the system I/O board. The cable length should be matched with the existing battery assembly when selecting a replacement.

Compatible HPE Smart Array Controllers

The Smart Storage Battery is designed to support compatible HPE Smart Array controllers that use FBWC. HPE documentation for the DL380 Gen9 lists Smart Array controllers including the P440ar and P840 in the supported storage architecture.

The P440ar, for example, includes 2GB of embedded FBWC and is designed for 12Gb/s SAS storage. The battery is separate from the controller and provides the centralized backup power required for compatible FBWC operation.

Applications

• HPE ProLiant DL380 Gen9 server maintenance
• RAID controller battery replacement
• Smart Array FBWC protection
• Enterprise server storage maintenance
• Database and virtualization server environments
• Data center server repair and upgrade

Compatibility

HPE identifies this 96W Smart Storage Battery as a battery for DL/ML/SL Generation 9 servers. The HPE DL380 Gen9 documentation specifically lists the 96W Smart Storage Battery as an optional component.

HPE part-number references include 727258-B21 as the option number and 815983-001 / 750450-001 as associated spare numbers for the 96W battery with a 145mm cable. HPE PartSurfer currently describes 727258-B21 as the “96W Smart Storage Battery with 145mm Cable for DL/ML/SL Servers.”

Before purchasing, verify the battery's spare part number, cable length, connector, and installed Smart Array controller. HPE has multiple 96W battery variants, including versions with different cable lengths.

HPE DL380 Gen9 RAID Controller Battery Price in Bangladesh

The price of the HPE DL380 Gen9 RAID Controller Battery in Bangladesh may vary depending on part number, sourcing, warranty, and availability. Contact Datacom Technologies (BD) for current pricing and compatibility assistance.

Why Choose HPE 96W Smart Storage Battery?

• 96W Smart Storage Battery for HPE Gen9 servers
• Designed for Flash-Based Write Cache protection
• 145mm cable for compatible installations
• Supports multiple compatible drive controllers in a server
• Suitable for HPE ProLiant DL380 Gen9 storage configurations
• Official HPE replacement part references available

Buy HPE DL380 Gen9 RAID Controller Battery in Bangladesh

For HPE DL380 Gen9 RAID Controller Battery pricing, exact spare-part verification, Smart Array compatibility checking, and enterprise server spare-parts procurement in Bangladesh, contact Datacom Technologies (BD).
