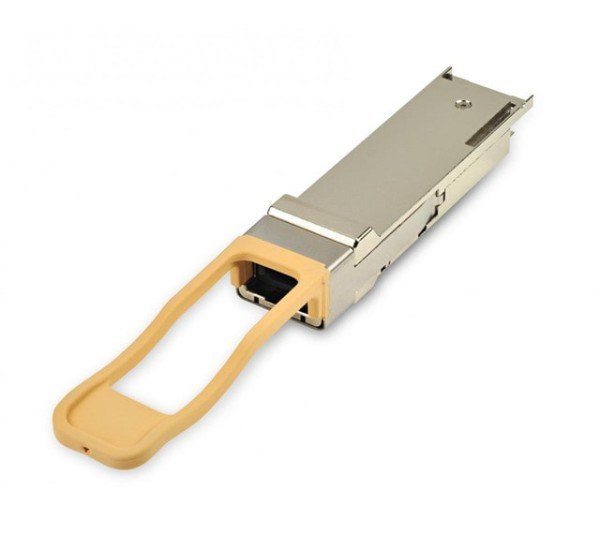

HPE 849443-001 100G QSFP28 SR4 100M Transceiver

About HPE 849443-001 100GBASE-SR4 100m QSFP28 MPO Transceiver in Bangladesh

The HPE 849443-001 is a 100Gbps QSFP28 optical transceiver designed for high-speed 100G Ethernet connectivity over multimode fiber. It uses the 100GBASE-SR4 parallel optical architecture with four 25Gbps optical lanes in each direction and an MPO optical interface.

The module operates at the 850nm wavelength and is designed for short-distance data-center networking applications. It supports transmission distances of up to 100 meters over OM4 multimode fiber, making it suitable for high-bandwidth switch-to-switch, spine-to-leaf and aggregation links.

HPE identifies 849443-001 as the spare part number for its 100Gb QSFP28 MPO transceiver. The corresponding HPE option number is 845966-B21. HPE's documentation describes the module as having four optical lanes in each direction, with each lane operating at 25Gb/s. HPE and distributor specifications identify 100GBASE-SR4, 850nm, MPO multimode connectivity and 100m maximum reach. :contentReference[oaicite:1]{index=1}

HPE 849443-001 100G SR4 Specifications & Features

Overview

The HPE 849443-001 provides 100Gbps Ethernet connectivity using parallel multimode-fiber technology. Four independent optical lanes operate at 25Gbps each, providing a combined 100Gbps connection.

Its QSFP28 form factor allows a high-density 100G optical connection in compatible HPE networking equipment. The MPO interface accommodates the multiple optical fibers required by the SR4 architecture.

Buy HPE 849443-001 100G QSFP28 SR4 Transceiver in Bangladesh

Purchase the HPE 849443-001 100GBASE-SR4 QSFP28 MPO Transceiver from Datacom Technologies (BD). We supply HPE server and networking components, QSFP28 transceivers, SFP/SFP+ modules, optical networking products and data-center connectivity equipment in Bangladesh with competitive pricing and technical support.

Key Features

• 100Gbps Ethernet connectivity
• HPE 849443-001 spare part number
• HPE 845966-B21 option number
• 100GBASE-SR4 optical standard
• QSFP28 hot-pluggable form factor
• 850nm optical wavelength
• Four 25Gbps optical lanes in each direction
• Multimode fiber operation
• Up to 100m transmission distance
• OM3 and OM4 multimode fiber support
• MPO optical connector
• Designed for high-density 100GbE networks
• 0°C to +70°C operating temperature

Applications

• 100GbE Data Center Networks
• HPE Switch-to-Switch Connectivity
• Spine-to-Leaf Network Links
• Data Center Aggregation
• 100G Ethernet Uplinks
• High-Performance Computing
• Enterprise Core Networks
• Server-to-Switch Connectivity
• High-Bandwidth Data Center Interconnects

100GBASE-SR4 Technology

The HPE 849443-001 uses the 100GBASE-SR4 architecture. Instead of carrying the entire 100Gbps signal over a single optical channel, the link uses four parallel optical lanes, each operating at 25Gbps.

HPE specifically describes the 849443-001 as a QSFP28 MPO module with four optical lanes in each direction, allowing each lane to operate at 25Gbps. :contentReference[oaicite:2]{index=2}

This parallel architecture is optimized for short-reach multimode-fiber connections commonly found inside modern data centers.

850nm Multimode Optical Technology

The transceiver operates at approximately 850nm and is designed for multimode fiber. This combination is widely used for short-distance 40G and 100G data-center optical networking.

The short-wavelength design makes the module particularly suitable for OM3 and OM4 structured multimode-fiber installations.

100m OM4 Reach

The HPE 849443-001 is specified for up to 100 meters of 100GBASE-SR4 connectivity. Distributor specifications identify OM4 multimode fiber for the 100m reach and OM3 compatibility for the SR4 application. :contentReference[oaicite:3]{index=3}

Actual link distance depends on fiber grade, modal bandwidth, connector insertion loss, patch-panel losses, polarity and the complete optical path.

MPO Connectivity

The HPE 849443-001 uses an MPO optical connector. The parallel SR4 architecture requires multiple optical fibers for the four transmit and four receive lanes.

Correct MPO polarity and lane mapping are essential when installing the transceiver. Compatible MPO/MTP multimode cabling should be used for the complete optical link.

Four 25Gbps Optical Lanes

The module provides four optical lanes in each direction. Each lane operates at 25Gbps, resulting in a 100Gbps aggregate Ethernet connection.

This parallel architecture allows a compact QSFP28 module to deliver very high bandwidth while using a single high-density MPO interface.

QSFP28 Form Factor

The HPE 849443-001 uses the compact QSFP28 form factor. QSFP28 was developed for high-density 100Gbps networking and provides four independent high-speed lanes within a compact pluggable module.

This makes the module suitable for high-port-density HPE switches and other compatible networking platforms.

Data Center Connectivity

The HPE 849443-001 is particularly suitable for short-distance data-center connections where 100Gbps bandwidth is required over multimode fiber.

Typical deployments include leaf-to-spine connections, switch uplinks, aggregation links and high-performance computing infrastructure.

100G SR4 vs 100G LR4

The HPE 849443-001 is intended for short-range multimode-fiber links. For 100G connections extending several kilometers, an appropriate single-mode 100G optic such as LR4 should be used instead.

Compatibility

The HPE 849443-001 is an HPE-specific transceiver and should be installed in compatible HPE networking equipment.

HPE documentation lists the 849443-001 across supported HPE networking platforms, including HPE Composable Fabric and Aruba networking documentation. :contentReference[oaicite:4]{index=4}

Before purchase, verify the exact switch, network adapter or platform model and its supported transceiver list. Vendor coding and firmware requirements can affect compatibility even when the optical specification is standardized.

Optical Link Planning

For reliable 100GBASE-SR4 operation, verify the complete optical path before deployment.

• OM3 or OM4 multimode fiber
• Fiber length
• Modal bandwidth
• MPO connector quality
• MPO polarity
• Fiber lane mapping
• Patch-panel insertion loss
• Optical power budget
• HPE host-device compatibility

Benefits

• 100Gbps Ethernet connectivity
• 100GBASE-SR4 support
• 850nm multimode optical technology
• Four 25Gbps optical lanes per direction
• Up to 100m reach
• OM3/OM4 fiber support
• High-density MPO connectivity
• QSFP28 form factor
• Suitable for HPE data-center switches
• Ideal for spine-to-leaf and aggregation links
• 0°C to +70°C operating temperature

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies HPE server and networking components, QSFP28 transceivers, SFP/SFP+ modules, optical networking products and data-center connectivity equipment in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is HPE 849443-001?
HPE 849443-001 is a 100Gbps QSFP28 MPO optical transceiver designed for 100GBASE-SR4 connectivity over multimode fiber.

Q2: What is the HPE option number?
The corresponding HPE option part number is 845966-B21, while 849443-001 is the spare part number. HPE's PartSurfer documentation confirms this relationship. :contentReference[oaicite:5]{index=5}

Q3: What is the maximum transmission distance?
The specified maximum reach is 100 meters for the 100GBASE-SR4 application, with OM4 multimode fiber commonly used for the full 100m reach. :contentReference[oaicite:6]{index=6}

Q4: What wavelength does it use?
The module operates at 850nm.

Q5: What type of fiber does it use?
It is designed for multimode fiber, including OM3 and OM4 installations.

Q6: What connector does HPE 849443-001 use?
It uses an MPO optical connector.

Q7: How many optical lanes does it have?
It has four optical lanes in each direction, with each lane operating at 25Gbps. :contentReference[oaicite:7]{index=7}

Q8: Can it be used for a 10km 100G link?
No. This is a short-range 100GBASE-SR4 multimode optic. A suitable single-mode 100G LR4 or other long-reach transceiver should be selected for kilometer-scale links.

Q9: Is HPE 849443-001 compatible with every QSFP28 port?
No. The host device must support the appropriate 100GBASE-SR4 optic and HPE transceiver requirements.

Q10: Can I use it with OM4 fiber?
Yes. OM4 multimode fiber is the appropriate choice for achieving the specified 100m SR4 reach. :contentReference[oaicite:8]{index=8}

Q11: Is 849443-001 the same as 845966-B21?
They refer to the same HPE transceiver offering in different numbering contexts: 845966-B21 is the HPE option part number, while 849443-001 is the spare part number. :contentReference[oaicite:9]{index=9}

Q12: Can it be used for 100G-to-4×25G breakout?
The four-lane SR4 optical architecture is suitable for supported 100G-to-4×25G breakout deployments, but the specific HPE switch, firmware and breakout configuration must support this mode.
