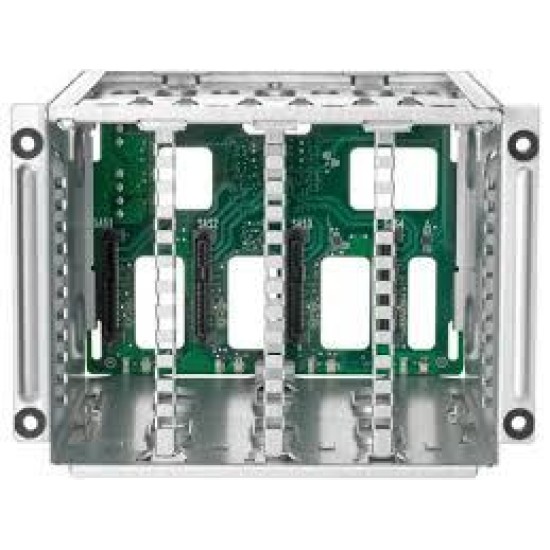

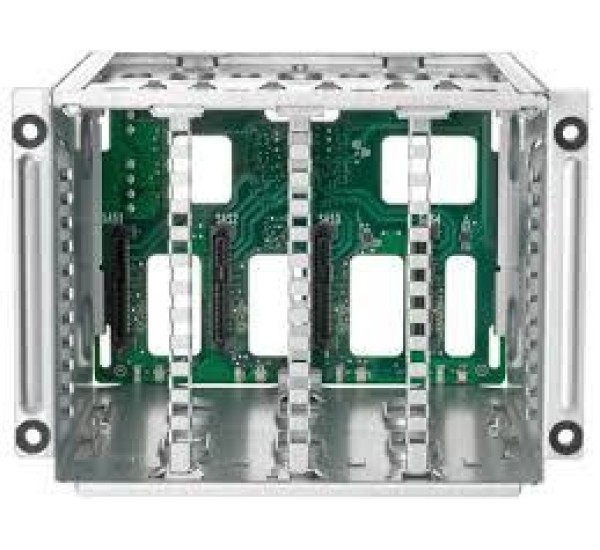

HPE 719067-B21 8-SFF Bay1 Cage / Backplane Kit for ProLiant DL380 Gen9
The HPE 719067-B21 8-SFF Bay1 Cage / Backplane Kit is a storage expansion component designed specifically for the HPE ProLiant DL380 Gen9 server. This kit provides an 8-bay Small Form Factor (2.5-inch) drive cage with an integrated SAS/SATA backplane, enabling organizations to expand their server storage capacity efficiently.
Manufactured by Hewlett Packard Enterprise (HPE), the kit installs in the Bay 1 front drive cage position of the DL380 Gen9 chassis and supports up to eight hot-swap 2.5-inch SFF SAS or SATA drives. This configuration allows improved storage density and flexible deployment for enterprise workloads such as virtualization, database management, and cloud infrastructure.
The integrated backplane connects the drives directly to the server’s RAID or Smart Array controller while distributing power and ensuring stable data communication between storage devices and the system board.
SPECIFICATION
| Feature | Details |
|---|
| Product Name | HPE DL380 Gen9 8-SFF Bay1 Cage / Backplane Kit |
| Part Number | 719067-B21 |
| Compatible Server | HPE ProLiant DL380 Gen9 |
| Drive Bays | 8 × 2.5-inch SFF |
| Drive Interface | SAS / SATA |
| Drive Type | Hot-plug HDD / SSD |
| Backplane Type | Integrated SAS/SATA backplane |
| Installation Location | Front Bay 1 drive cage |
| Component Type | Drive cage with backplane |
| Application | Enterprise server storage expansion |
HPE 719067-B21 Backplane Kit Description
The HPE 719067-B21 8-SFF Bay1 Backplane Kit is designed to expand internal storage capability within the ProLiant DL380 Gen9 server chassis. It includes a metal drive cage assembly and integrated SAS/SATA backplane board, which connects storage drives to the server’s storage controller through SAS cables.
This kit supports hot-swap drive functionality, allowing administrators to install or replace drives without powering down the server. The backplane ensures reliable signal routing and power distribution to each drive, helping maintain stable server performance in demanding environments.
When installed in Bay 1, the system supports eight 2.5-inch drives, and additional expansion can be achieved by installing a Bay 2 cage/backplane kit (such as 768857-B21) to reach up to 16 SFF drives depending on the server configuration.
The 719067-B21 backplane kit is widely used in enterprise data centers, virtualization clusters, and high-performance computing environments where scalable storage infrastructure is required.
KEY FEATURES
Supports 8 × 2.5-inch SFF SAS/SATA drives
Designed for HPE ProLiant DL380 Gen9 servers
Includes drive cage and integrated SAS/SATA backplane
Supports hot-swap drive installation
Ensures reliable power and data connectivity
Enables scalable enterprise storage expansion
Compatible with HPE Smart Array RAID controllers
WHERE IT CAN BE USED
Enterprise Data Centers
Virtualization Platforms
Cloud Computing Infrastructure
Enterprise Database Servers
Storage and Backup Systems
Big Data Analytics Platforms
Mission-Critical IT Environments
