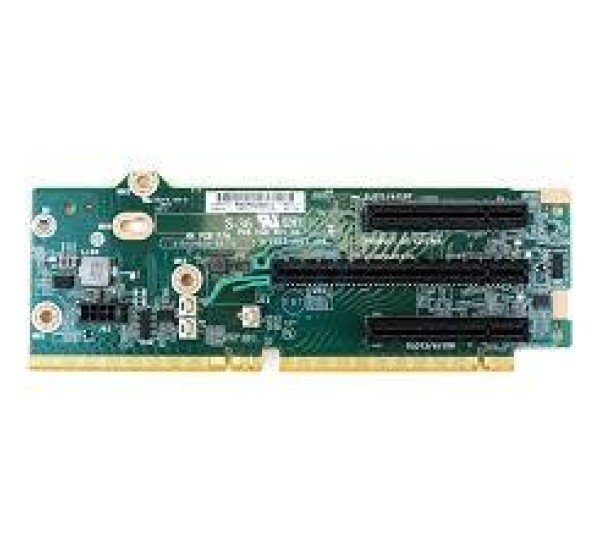

HPE 875058-001 DL380 Gen10 M.2 / PCIe GPU Expansion Riser Card
The HPE 875058-001 DL380 Gen10 M.2 / PCIe GPU Expansion Riser Card is an enterprise server expansion module designed for HPE ProLiant DL380 Gen10 and DL385 Gen10 servers. This riser card enables additional PCIe expansion slots and optional M.2 storage support, allowing organizations to install GPUs, network adapters, RAID controllers, and other PCIe devices to enhance server performance.
Manufactured by Hewlett Packard Enterprise (HPE), the riser card is installed inside the server chassis and connects directly to the system board. It provides multiple PCIe 3.0 slots (x8 / x16) and includes a GPU power connector, making it suitable for high-performance computing, virtualization, and data-intensive enterprise workloads.
This riser solution is widely used in data centers and enterprise infrastructures where servers need additional expansion capability for GPUs, NVMe devices, or high-speed networking components.
SPECIFICATION
| Feature | Details |
|---|
| Product Name | HPE DL380 Gen10 PCIe / M.2 GPU Expansion Riser Card |
| Part Number | 875058-001 |
| Compatible Servers | HPE ProLiant DL380 Gen10 / DL385 Gen10 / DL560 Gen10 |
| Expansion Interface | PCI Express 3.0 |
| Slot Configuration | x8 / x16 / x8 PCIe slots |
| GPU Support | Supports GPU accelerator cards |
| Storage Support | M.2 SSD support on compatible riser configurations |
| Power Connector | 8-pin GPU power connector |
| Installation | Internal server riser board |
| Application | Server expansion and GPU acceleration |
HPE 875058-001 PCIe Riser Card Description
The HPE 875058-001 PCIe Riser Card is designed to expand the functionality of HPE ProLiant Gen10 rack servers by providing additional PCIe expansion slots. These slots allow administrators to install various expansion devices such as GPU accelerators, NVMe adapters, high-speed network cards, and RAID controllers.
The riser card connects to the server motherboard and distributes PCIe lanes to the expansion slots, enabling high-bandwidth communication between installed hardware and the system processor. It supports PCIe 3.0 technology, delivering fast data transfer speeds required for modern enterprise workloads.
In many DL380 Gen10 configurations, this riser card is used to enable GPU acceleration or add additional storage options, which helps improve server performance for tasks such as AI processing, virtualization, big-data analytics, and high-performance computing (HPC).
Because of its flexible design and compatibility with multiple ProLiant Gen10 servers, the 875058-001 riser card is commonly used in enterprise data centers, cloud computing environments, and high-performance server deployments.
KEY FEATURES
Designed for HPE ProLiant DL380 Gen10 / DL385 Gen10 servers
Provides multiple PCIe 3.0 expansion slots (x8 / x16)
Supports GPU accelerator cards and expansion devices
Enables M.2 storage support in compatible configurations
Includes 8-pin GPU power connector
Improves server expansion flexibility and performance
Ideal for enterprise and high-performance workloads
WHERE IT CAN BE USED
Enterprise Data Centers
AI and Machine Learning Servers
High-Performance Computing (HPC)
Virtualization Infrastructure
Cloud Computing Platforms
Big Data and Analytics Systems
GPU-Accelerated Server Environments
