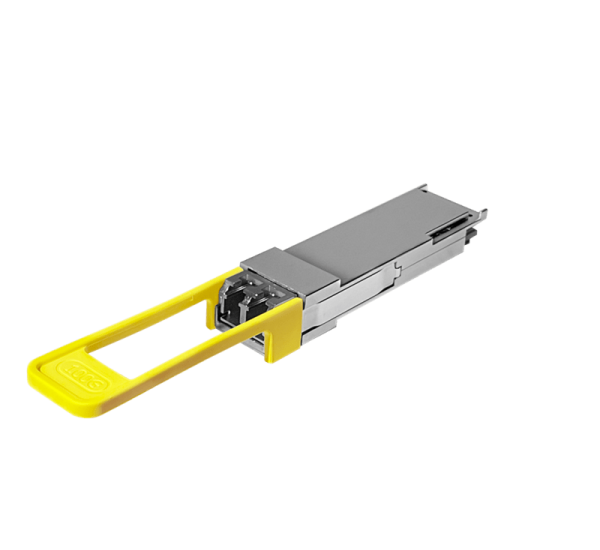

About HPE Aruba Networking S3N89A 100G LR QSFP28 LC 10km SMF Transceiver in Bangladesh
The HPE Aruba Networking S3N89A is a 100Gbps long-reach QSFP28 optical transceiver designed for high-speed data center and enterprise networking applications. It supports transmission distances of up to 10km over 9/125µm single-mode fiber and uses an LC connector interface.
HPE officially identifies S3N89A as the HPE Aruba Networking 100G LR QSFP28 LC 10km SMF Transceiver. The official HPE specification lists the module as QSFP28 with a maximum distance of 10km. ([HPE](https://buy.hpe.com/asia_pac/en/options/transceiver-options/networking-transceiver-options/hpe-aruba-networking-100g-lr-qsfp28-lc-10km-smf-transceiver/p/s3n89a))
HPE Aruba Networking documentation specifies a 1310nm single-lane 100G PAM4 optical design, 9/125µm single-mode fiber and LC UPC connector. The module is designed for long-reach 100GbE connectivity over distances up to 10km. ([Aruba Networking](https://arubanetworking.hpe.com/techdocs/Switches/xcvrs/xcvr_guide/Content/Chp_qsfp28/qsf-lc-mod-spe.htm))
HPE Aruba S3N89A 100G LR QSFP28 Specifications & Features
| Specification | Details |
|---|
| Brand | HPE Aruba Networking |
| Product Number | S3N89A |
| Transceiver Type | QSFP28 |
| Data Rate | 100Gbps |
| Optical Standard | 100G LR |
| Wavelength | 1310nm |
| Maximum Distance | 10km |
| Fiber Mode | Single-Mode Fiber (SMF) |
| Fiber Diameter | 9/125µm |
| Connector | LC UPC |
| Optical Technology | 1x100G PAM4 |
| Digital Optical Monitoring | Yes |
| Operating Temperature | 0°C to 70°C |
| Typical Power | 4.5W |
Overview
The HPE Aruba Networking S3N89A provides 100Gbps optical connectivity for compatible Aruba networking equipment. It is intended for long-distance single-mode fiber links where a 100GbE connection must span up to 10km.
Unlike short-range 100G SR modules designed for multimode fiber, the S3N89A is a 100G LR module designed for single-mode fiber infrastructure.
Buy HPE Aruba S3N89A 100G LR QSFP28 10km Transceiver in Bangladesh
Buy the HPE Aruba Networking S3N89A 100G LR QSFP28 LC 10km SMF Transceiver from Datacom Technologies (BD). We supply HPE Aruba networking transceivers, optical modules, switches, data center networking equipment and enterprise infrastructure products in Bangladesh.
Contact us for current pricing, stock availability, compatibility verification and delivery options.
Key Features
- 100Gbps optical networking
- QSFP28 form factor
- 100G LR long-reach specification
- Up to 10km transmission distance
- 1310nm optical wavelength
- Single-mode fiber support
- 9/125µm SMF
- LC UPC connector
- 1x100G PAM4 optical technology
- Digital Optical Monitoring (DOM)
- Commercial operating temperature of 0°C to 70°C
- Designed for compatible HPE Aruba Networking equipment
100Gbps QSFP28 Connectivity
The S3N89A delivers 100Gbps networking in a QSFP28 transceiver form factor. It is designed for high-bandwidth connections between compatible network switches, aggregation systems and data center infrastructure.
100Gbps connectivity provides substantially more bandwidth than 10GbE and 40GbE links, making the S3N89A suitable for high-throughput network backbones, data center interconnects and aggregation links.
100G LR Long-Reach Optical Technology
The S3N89A is a 100G LR transceiver designed for long-distance optical connectivity. HPE specifies a maximum transmission distance of 10km over single-mode fiber. ([HPE](https://www.hpe.com/psnow/generateDDS/HPE%20Aruba%20Networking%20100G%20LR%20QSFP28%20LC%2010km%20SMF%20Transceiver%20digital%20data%20sheet-PSN1014814660PLEN.pdf))
This makes the module suitable for campus, metropolitan, data center and enterprise network links where a 100Gbps connection must travel significantly farther than typical multimode-fiber SR solutions.
1310nm Wavelength
The S3N89A uses a nominal 1310nm optical wavelength. Aruba's transceiver guide identifies the module as a single-lane 1310nm 1x100G PAM4 optical transceiver. ([Aruba Networking](https://arubanetworking.hpe.com/techdocs/Switches/xcvrs/xcvr_guide/Content/Chp_qsfp28/qsf-lc-mod-spe.htm))
The 1310nm wavelength is commonly used with single-mode fiber for longer-distance optical communication.
Single-Mode Fiber Support
The S3N89A is designed for 9/125µm single-mode fiber (SMF). HPE Aruba documentation specifies SMF with an LC UPC connector and a maximum transmission distance of 10km. ([Aruba Networking](https://arubanetworking.hpe.com/techdocs/Switches/xcvrs/xcvr_guide/Content/Chp_qsfp28/qsf-lc-mod-spe.htm))
Use suitable single-mode optical cabling and compatible LC connectors when deploying the module. Multimode fiber designed for SR applications should not be substituted for the specified SMF infrastructure.
LC UPC Connector
The S3N89A uses an LC UPC optical interface. This makes it compatible with standard duplex LC single-mode fiber infrastructure designed for the module.
Always verify the connector type, fiber polarity and optical budget when connecting the module to an existing fiber plant.
1x100G PAM4 Architecture
The S3N89A differs from conventional 100G LR4 modules. Aruba documentation identifies S3N89A as a single-lane 1310nm 1x100G PAM4 transceiver. ([Aruba Networking](https://arubanetworking.hpe.com/techdocs/Switches/xcvrs/xcvr_guide/Content/Chp_qsfp28/qsf-lc-mod-spe.htm))
This is important when selecting compatible optics. HPE specifically notes that 100G LR is not compatible with 100G LR4 because LR uses one lane while LR4 uses four lanes. ([Aruba Networking](https://arubanetworking.hpe.com/techdocs/Switches/xcvrs/xcvr_guide/Content/Chp_qsfp28/qsf-lc-mod-spe.htm))
10km Transmission Distance
The S3N89A supports a maximum optical transmission distance of 10km (6.21 miles) according to HPE Aruba's transceiver documentation. ([Aruba Networking](https://arubanetworking.hpe.com/techdocs/Switches/xcvrs/xcvr_guide/Content/Chp_qsfp28/qsf-lc-mod-spe.htm))
Actual achievable distance depends on fiber quality, connector losses, patch panels, optical attenuation and the complete link budget.
Digital Optical Monitoring
The S3N89A supports Digital Optical Monitoring (DOM). Aruba's transceiver documentation identifies DOM as available for this module. ([Aruba Networking](https://arubanetworking.hpe.com/techdocs/Switches/xcvrs/xcvr_guide/Content/Chp_qsfp28/qsf-lc-mod-spe.htm))
DOM can provide useful optical diagnostics such as module operating conditions and optical transmit/receive information when supported by the host switch and software.
Optical Power Specifications
| Parameter | S3N89A |
|---|
| Transmit Power | -1.9 to +4.8 dBm |
| Receive Power | -8.2 to +4.8 dBm |
| Operating Temperature | 0°C to 70°C |
| Typical Required Power | 4.5W |
These optical specifications are documented by HPE Aruba for the S3N89A. ([Aruba Networking](https://arubanetworking.hpe.com/techdocs/Switches/xcvrs/xcvr_guide/Content/Chp_qsfp28/qsf-lc-mod-spe.htm))
Compatible Aruba Networking Platforms
HPE Aruba documentation lists S3N89A compatibility across a range of QSFP28-capable Aruba platforms. Supported examples include the Aruba 6300, Aruba 6400, Aruba 8100, Aruba 8325, Aruba 8360 and Aruba 10000 families, subject to the applicable hardware model and minimum software release. ([Aruba Networking](https://arubanetworking.hpe.com/techdocs/Switches/xcvrs/xcvr_guide/Content/Chp_qsfp28/qsf-lc-mod-spe.htm))
For example, Aruba documentation lists S3N89A support for the Aruba 6300 48p Smart Rate 10G PoE with 4x100G QSFP models, with minimum software release 10.13.1010. ([Aruba Networking](https://arubanetworking.hpe.com/techdocs/Switches/xcvrs/xcvr_guide/Content/Chp_qsfp28/qsf-lc-mod-spe.htm))
Compatibility is dependent on the exact switch model, QSFP28 port, AOS-CX software version and supported transceiver configuration. Always verify the specific switch before purchasing.
100G LR vs 100G LR4
| Feature |
S3N89A 100G LR |
Typical 100G LR4 |
| Form Factor |
QSFP28 |
QSFP28 |
| Data Rate |
100Gbps |
100Gbps |
| Optical Lanes |
1x100G PAM4 |
4 optical lanes |
| Wavelength |
1310nm |
Four CWDM wavelengths |
| Fiber |
SMF |
SMF |
| Connector |
LC |
LC |
| Maximum Distance |
10km |
10km |
Important: HPE Aruba explicitly states that 100G LR and 100G LR4 are not compatible because they use different optical lane architectures. ([Aruba Networking](https://arubanetworking.hpe.com/techdocs/Switches/xcvrs/xcvr_guide/Content/Chp_qsfp28/qsf-lc-mod-spe.htm))
Data Center Applications
The S3N89A is suitable for high-bandwidth optical networking applications such as:
- Data center interconnects
- Core-to-core switch connections
- Aggregation network links
- Campus backbone connectivity
- Enterprise network backbones
- Server-to-switch uplinks
- Storage network infrastructure
- High-capacity metropolitan links
Why Choose HPE Aruba S3N89A?
- 100Gbps network bandwidth
- Long-distance 10km optical reach
- QSFP28 form factor
- 1310nm single-mode optical transmission
- LC UPC connectivity
- 9/125µm SMF support
- DOM capability
- 1x100G PAM4 architecture
- Designed for compatible HPE Aruba networking equipment
- Suitable for enterprise and data center backbone networks
Installation Considerations
Before deploying the S3N89A, verify the target switch supports the exact S3N89A transceiver and the required AOS-CX or switch software version.
- Confirm QSFP28 port compatibility
- Confirm S3N89A support in the switch software
- Use 9/125µm single-mode fiber
- Use compatible LC UPC connectors
- Verify fiber polarity
- Check the optical link budget
- Ensure the optical path does not exceed 10km
- Do not substitute 100G LR4 optics without verifying compatibility
Why Buy from Datacom Technologies (BD)?
Datacom Technologies (BD) supplies HPE Aruba networking transceivers, optical modules, enterprise switches, data center networking equipment and server infrastructure products in Bangladesh.
- Call/WhatsApp: +8801748173213
- Email: sales@datacom.com.bd
- Alternative Email: datacomtechnologiesbd@gmail.com
- Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh
Frequently Asked Questions (FAQ)
Q1: What is HPE Aruba S3N89A?
S3N89A is an HPE Aruba Networking 100G LR QSFP28 LC 10km SMF optical transceiver.
Q2: What speed does S3N89A support?
It is a 100Gbps QSFP28 transceiver.
Q3: What is the maximum transmission distance?
The maximum specified transmission distance is 10km over compatible single-mode fiber. ([HPE](https://www.hpe.com/psnow/generateDDS/HPE%20Aruba%20Networking%20100G%20LR%20QSFP28%20LC%2010km%20SMF%20Transceiver%20digital%20data%20sheet-PSN1014814660PLEN.pdf))
Q4: What wavelength does S3N89A use?
It uses a nominal 1310nm wavelength. ([Aruba Networking](https://arubanetworking.hpe.com/techdocs/Switches/xcvrs/xcvr_guide/Content/Chp_qsfp28/qsf-lc-mod-spe.htm))
Q5: What type of fiber does S3N89A require?
It is designed for 9/125µm single-mode fiber.
Q6: What connector does S3N89A use?
The module uses an LC UPC optical connector.
Q7: Is S3N89A a QSFP28 transceiver?
Yes. HPE officially specifies the product type as QSFP28. ([HPE](https://www.hpe.com/psnow/generateDDS/HPE%20Aruba%20Networking%20100G%20LR%20QSFP28%20LC%2010km%20SMF%20Transceiver%20digital%20data%20sheet-PSN1014814660PLEN.pdf))
Q8: Is S3N89A compatible with 100G LR4?
No. HPE Aruba specifically states that 100G LR is not compatible with 100G LR4 because the two modules use different optical lane architectures. ([Aruba Networking](https://arubanetworking.hpe.com/techdocs/Switches/xcvrs/xcvr_guide/Content/Chp_qsfp28/qsf-lc-mod-spe.htm))
Q9: Does S3N89A support DOM?
Yes. HPE Aruba documentation identifies Digital Optical Monitoring for the S3N89A. ([Aruba Networking](https://arubanetworking.hpe.com/techdocs/Switches/xcvrs/xcvr_guide/Content/Chp_qsfp28/qsf-lc-mod-spe.htm))
Q10: What is the operating temperature?
The documented commercial operating temperature is 0°C to 70°C.
Q11: What is the typical power consumption?
HPE Aruba specifies approximately 4.5W required power for the S3N89A. ([Aruba Networking](https://arubanetworking.hpe.com/techdocs/Switches/xcvrs/xcvr_guide/Content/Chp_qsfp28/qsf-lc-mod-spe.htm))
Q12: Which Aruba switches support S3N89A?
HPE Aruba documentation lists S3N89A support for various QSFP28-capable platforms including Aruba 6300, 6400, 8100, 8325, 8360 and 10000 families, subject to specific model and software requirements. ([Aruba Networking](https://arubanetworking.hpe.com/techdocs/Switches/xcvrs/xcvr_guide/Content/Chp_qsfp28/qsf-lc-mod-spe.htm))
Q13: Can S3N89A be used for a 10km data center link?
Yes. It is specifically designed for 100Gbps long-reach links up to 10km over compatible single-mode fiber.
Q14: Is S3N89A suitable for multimode fiber?
No. S3N89A is specified for single-mode 9/125µm fiber.
