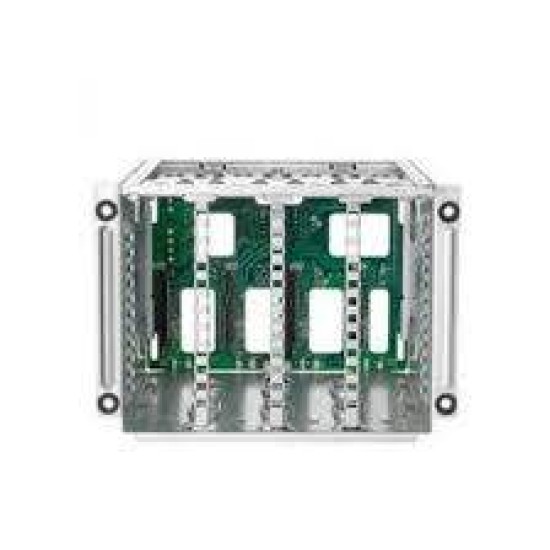

HPE DL38X Gen10 4LFF Midplane SAS/SATA HDD Kit – 826686-B21

The HPE DL38X Gen10 4LFF Midplane SAS/SATA HDD Kit, part number 826686-B21, is an HPE storage expansion kit designed for compatible HPE ProLiant DL380 Gen10 LFF server configurations. HPE officially identifies the option as the DL38X Gen10 4LFF Midplane SAS/SATA HDD Kit.

The kit adds a four-drive LFF midplane/tray configuration supporting hot-swap SAS/SATA hard drives. HPE specifies support with both the 8-LFF and 12-LFF chassis configurations. The installation also requires the HPE High Performance Fan Kit 867810-B21.

HPE 826686-B21 4LFF Midplane Features

• HPE DL38X Gen10 4LFF Midplane SAS/SATA HDD Kit
• HPE option part number 826686-B21
• Supports four 3.5-inch LFF hot-swap drive bays
• Supports SAS and SATA hard drives
• Compatible with supported 8-LFF and 12-LFF DL380 Gen10 configurations
• Requires HPE High Performance Fan Kit 867810-B21

Technical Specifications

HPE DL380 Gen10 4LFF Midplane Storage Expansion

The 826686-B21 provides an additional four-drive LFF storage configuration in the midplane area of compatible DL380 Gen10 systems. HPE specifies that the kit supports both the 8-LFF and 12-LFF models.

The supported drives are hot-swappable SAS/SATA LFF drives, making the option suitable for enterprise storage configurations where drive replacement and maintenance need to be performed without removing the server from service.

Compatibility

The 826686-B21 is specifically associated with the HPE DL38X Gen10 platform and should be installed only in configurations supported by HPE QuickSpecs.

• HPE ProLiant DL380 Gen10 8-LFF configurations
• HPE ProLiant DL380 Gen10 12-LFF configurations
• Compatible DL38X Gen10 LFF chassis configurations

HPE also notes that the 8-LFF chassis cannot be upgraded to a 12-LFF front configuration in the field, but the 4-LFF midplane 826686-B21 is supported as a field storage expansion option.

Installation Requirements and Limitations

HPE specifies that the 826686-B21 requires the High Performance Fan Kit 867810-B21. The kit ships with a low-profile heatsink for installation and introduces processor and ambient-temperature configuration requirements.

With the 4LFF mid-tray installed, HPE specifies that only single-wide cards up to 8.5 inches with connections or less are supported. Processor support is also dependent on system inlet ambient temperature and the rest of the server configuration.

Applications

• DL380 Gen10 LFF storage expansion
• Adding four hot-swap LFF SAS/SATA drive bays
• Enterprise server storage upgrades
• DL380 Gen10 server refurbishment
• Server repair and replacement
• High-capacity SAS/SATA storage deployments

HPE 826686-B21 Price in Bangladesh

The price of the HPE 826686-B21 4LFF Midplane SAS/SATA HDD Kit in Bangladesh may vary depending on condition, sourcing and availability. Contact Datacom Technologies (BD) for current pricing and compatibility confirmation.

Why Choose HPE 826686-B21?

• Official HPE DL38X Gen10 storage expansion option
• Adds four LFF hot-swap drive bays
• Supports SAS and SATA storage drives
• Compatible with supported 8-LFF and 12-LFF DL380 Gen10 models
• Suitable for enterprise storage expansion and server maintenance

Order HPE 826686-B21 in Bangladesh

For the HPE DL38X Gen10 4LFF Midplane SAS/SATA HDD Kit – 826686-B21, contact Datacom Technologies (BD) for current price, availability and configuration verification.
