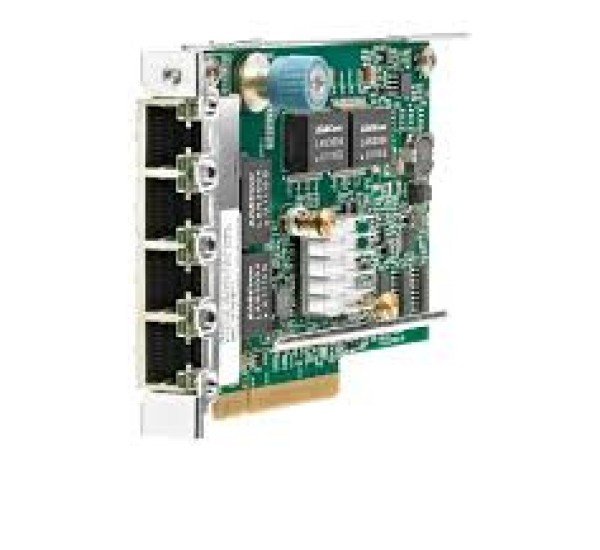

HPE Ethernet 629135-B22 1Gb 4-port FLR-T BCM5719 Adapter
Datacom Technologies BD is your one-stop shop for networking equipment, including the HPE Ethernet 629135-B22 1Gb 4-port FLR-T BCM5719 Adapter. We offer competitive pricing, reliable products, and excellent customer service. Contact us today to learn more about our product offerings and how we can help you meet your networking needs.
Product Specification
| Specification | Details |
|---|
| Model / SKU | 629135-B22 |
| Product Name | HPE Ethernet 1Gb 4-port FLR-T BCM5719 Adapter |
| Form Factor | FlexibleLOM (FLR-T) |
| Bus Type / Interface | PCI Express 2.0 x4 |
| Network Ports | 4 x RJ-45 Ethernet |
| Supported Data Rates | 10/100/1000 Mb/s per port |
| Aggregate Bandwidth | Up to 8 Gb/s full duplex |
| Chipset / Network Processor | Broadcom BCM5719 |
| Ethernet Standards | IEEE 802.3 / 802.3u / 802.3ab / 802.3x / 802.3ad (LACP) / 802.1Q / 802.3az / IEEE 1588 / 802.1as |
| Offload & Features | VLAN tagging, Jumbo Frames, LSO, TSO, TCP/UDP checksum offload, PXE, MSI / MSI-X |
| Supported OS | Windows Server, Linux variants, VMware ESX/ESXi (varies by driver) |
| Power Consumption | Approx. 5.5 W |
| Operating Temp. | 0°C to 55°C (32°F to 131°F) |
| Design | Internal server adapter |
| Typical Use Cases | Virtualization, server consolidation, network segmentation |
| Compliance & Certs | FCC, UL, RoHS, WEEE, EN standards |
Description
The HPE Ethernet 629135-B22 1Gb 4-port FLR-T BCM5719 Adapter is a high-efficiency network interface card designed for modern HPE ProLiant server platforms requiring reliable, high-density Gigabit Ethernet connectivity. Built around the Broadcom BCM5719 network processor, this adapter offers four physical 1 GbE ports in a single FlexibleLOM (FLR-T) form factor, providing a balanced combination of performance and power efficiency, with aggregate full-duplex bandwidth up to 8 Gb/s.
Ideal for virtualization, security, server consolidation, and network segmentation workloads, the adapter supports a comprehensive suite of advanced features such as large send/receive offloading, TCP/IP and UDP/IP checksum offload, jumbo frames, VLAN tagging, and PXE boot support. It also includes optimization for multi-core servers via MSI-X interrupt support and complies with multiple Ethernet standards including IEEE 802.3, 802.1Q VLAN tagging, 1588 time synchronization, and Energy Efficient Ethernet (802.3az).
With its FlexibleLOM interface, the card allows for future upgrade paths (e.g., to 10 GbE modules) without significant server reconfiguration. Its low power draw and rich feature set make it a versatile choice for enterprise and virtualized server environments where port density and efficient Ethernet performance are critical.
