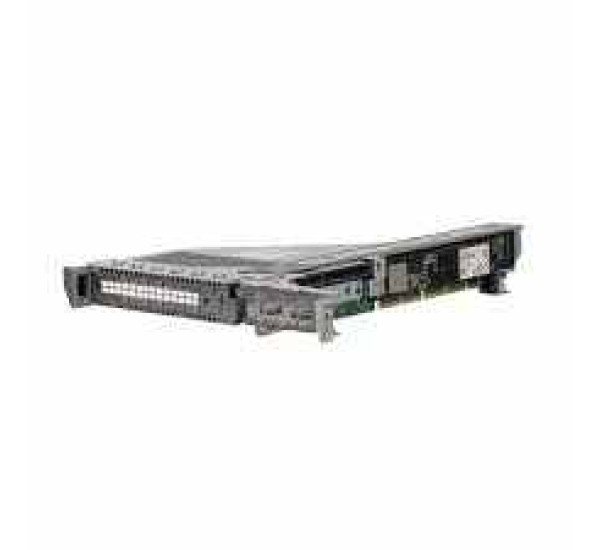

HPE P26463-B21 ProLiant DL36X Gen10 Plus x16/x8 PCIe M.2 NS204i-r Riser Kit

The HPE P26463-B21 ProLiant DL36X Gen10 Plus x16/x8 PCIe M.2 NS204i-r Riser Kit is an optional PCIe riser assembly designed for compatible HPE ProLiant DL360 Gen10 Plus server configurations. It combines PCIe expansion with dedicated M.2 connectivity for HPE NS204i-r boot and storage configurations.

The riser supports two 22110 M.2 media and provides hardware RAID 1 capability using inbox Windows, Linux or VMware drivers. HPE specifies that the M.2 media is not included and that the kit requires the HPE High Performance Fan Kit P26477-B21.

HPE P26463-B21 M.2 Riser Kit Features

• Genuine HPE ProLiant DL36X Gen10 Plus riser option
• HPE part number P26463-B21
• x16/x8 PCIe riser configuration
• Supports up to two 22110 M.2 media
• Designed for NS204i-r M.2 boot/storage configurations
• Provides hardware RAID 1 capability with supported operating-system inbox drivers
• M.2 SSD media is not included
• Requires High Performance Fan Kit P26477-B21

Technical Specifications

HPE DL360 Gen10 Plus M.2 Storage Expansion

The P26463-B21 is an optional primary riser for the DL360 Gen10 Plus platform. HPE's riser table identifies it as the x16/x8 2x M.2 NS204i-r Primary Riser, with x16 and x8 PCIe Gen4 lane configurations and support for two M.2 connections.

This configuration is useful when the server requires dedicated M.2 boot or storage media while retaining PCIe expansion capability. The two supported M.2 devices can be configured for hardware RAID 1 with supported operating-system drivers.

NS204i-r Hardware RAID 1

The NS204i-r configuration provides hardware RAID 1 capabilities for the supported M.2 media. HPE specifies that this functionality uses inbox drivers for Windows, Linux or VMware, making the riser suitable for redundant M.2 boot-device configurations on supported server deployments.

PCIe Gen4 Expansion

The P26463-B21 provides an x16 PCIe Gen4 slot and an x8 PCIe Gen4 slot in its documented riser configuration. HPE also lists GPU support for the riser configuration, subject to the applicable server configuration and power limitations.

Compatibility

The primary platform association for P26463-B21 is the HPE ProLiant DL360 Gen10 Plus. HPE identifies the option as the DL36X Gen10 Plus x16/x8 PCIe M.2 NS204i-r Riser Kit.

• HPE ProLiant DL360 Gen10 Plus
• Compatible DL36X Gen10 Plus configurations
• Supported NS204i-r M.2 boot/storage configurations

Important Configuration Requirements

The P26463-B21 does not include M.2 media. HPE specifies that it supports two 22110 M.2 devices. The riser also requires the High Performance Fan Kit P26477-B21.

HPE documentation also indicates that riser cards are configuration-dependent. Verify the existing DL360 Gen10 Plus chassis, riser arrangement, M.2 requirements, cooling configuration and PCIe device requirements before ordering.

Applications

• HPE DL360 Gen10 Plus M.2 boot-device expansion
• Redundant M.2 storage using RAID 1
• NS204i-r M.2 boot configurations
• PCIe Gen4 expansion
• Enterprise server virtualization deployments
• Data-center server upgrades
• HPE server replacement and refurbishment

HPE P26463-B21 Price in Bangladesh

The price of the HPE P26463-B21 DL36X Gen10 Plus x16/x8 PCIe M.2 NS204i-r Riser Kit in Bangladesh may vary depending on condition, sourcing and availability. Contact Datacom Technologies (BD) for current pricing and compatibility confirmation.

Why Choose HPE P26463-B21?

• Original HPE ProLiant Gen10 Plus riser option
• Supports two 22110 M.2 media
• Provides NS204i-r hardware RAID 1 functionality
• Combines M.2 storage with PCIe x16/x8 expansion
• Designed specifically for compatible DL360 Gen10 Plus configurations

Order HPE P26463-B21 in Bangladesh

For the HPE ProLiant DL36X Gen10 Plus x16/x8 PCIe M.2 NS204i-r Riser Kit – P26463-B21, contact Datacom Technologies (BD) for current price, availability and server configuration verification.
