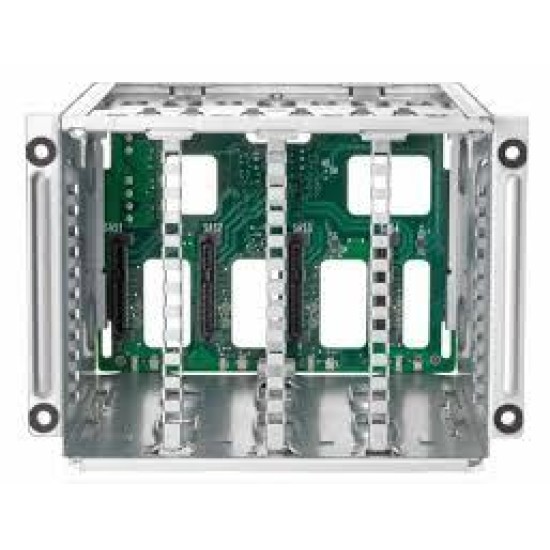

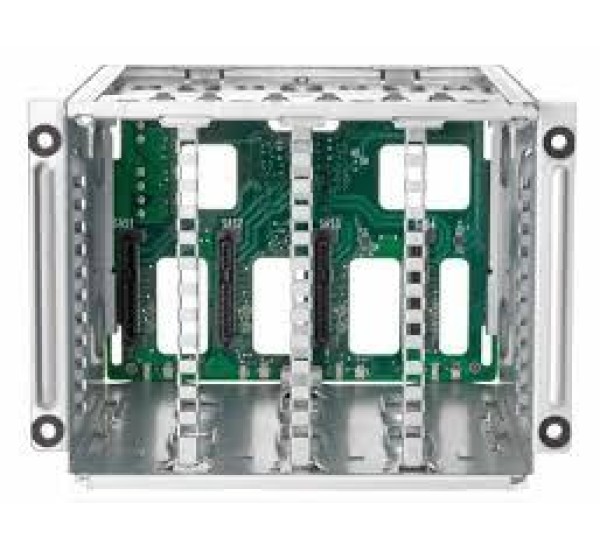

HPE ProLiant DL380 Gen9 8-SFF Bay1 Cage / Backplane Kit – 719067-B21
The HPE ProLiant DL380 Gen9 8-SFF Bay1 Cage / Backplane Kit (Part No: 719067-B21) is an enterprise storage expansion component designed for the HPE ProLiant DL380 Gen9 rack server. This kit provides an 8-bay Small Form Factor (2.5-inch) drive cage with integrated SAS/SATA backplane, allowing administrators to install and manage multiple hot-plug drives inside the server chassis.
Developed by Hewlett Packard Enterprise, the kit is installed in the Bay 1 front drive cage position of the DL380 Gen9 server. It supports up to eight 2.5-inch SAS or SATA hard drives or SSDs, enabling higher storage density and improved storage flexibility for enterprise workloads.
This backplane kit is commonly used in data center servers, virtualization platforms, and enterprise storage environments, where scalable and reliable storage architecture is essential.
SPECIFICATION
| Feature | Details |
|---|
| Product Name | HPE DL380 Gen9 8-SFF Bay1 Cage / Backplane Kit |
| Part Number | 719067-B21 |
| Compatible Server | HPE ProLiant DL380 Gen9 |
| Drive Bays | 8 × 2.5-inch SFF |
| Drive Interface | SAS / SATA |
| Backplane Type | Integrated SAS/SATA backplane |
| Drive Support | Hot-plug HDD / SSD |
| Installation Location | Front Bay 1 drive cage |
| Component Type | Drive cage with backplane |
| Application | Enterprise server storage expansion |
HPE 719067-B21 8-SFF Bay1 Backplane Description
The HPE 719067-B21 Backplane Kit is designed to expand storage capacity within the DL380 Gen9 server chassis. The kit includes a metal drive cage and integrated SAS/SATA backplane board, which connects storage drives to the server RAID controller.
This configuration allows administrators to install eight hot-swap 2.5-inch drives, enabling easy maintenance and upgrades without shutting down the server. The backplane ensures stable power distribution and reliable data communication between the drives and the storage controller.
When installed in the Bay 1 position, this kit enables the base storage configuration of DL380 Gen9 servers. Organizations can further expand storage by adding a Bay 2 cage/backplane kit, allowing the server to support up to 16 SFF drives depending on configuration.
Because of its enterprise-grade design, this backplane kit is widely used in high-performance server environments, virtualization clusters, cloud infrastructure, and enterprise database systems.
KEY FEATURES
Supports 8 × 2.5-inch SFF SAS/SATA drives
Designed for HPE ProLiant DL380 Gen9 servers
Includes drive cage and integrated backplane board
Supports hot-plug drive installation and replacement
Provides stable power and data connectivity
Enables scalable enterprise storage configuration
Compatible with HPE Smart Array RAID controllers
WHERE IT CAN BE USED
Enterprise Data Centers
Virtualization Infrastructure
Cloud Computing Platforms
Enterprise Database Servers
High-Performance Storage Systems
Backup and Disaster Recovery Solutions
Mission-Critical IT Environments
