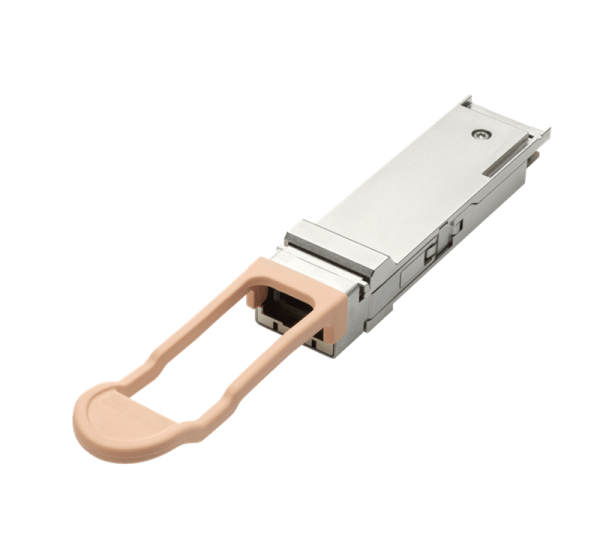

HPE R9J30A 400G Transceiver 2km QSFP‑DD FR4‑WDM1300

About HPE R9J30A X1E0 400G QSFP-DD FR4-WDM1300 2km LC Transceiver in Bangladesh

The HPE R9J30A is an HPE Networking X1E0 400Gbps QSFP-DD FR4-WDM1300 optical transceiver designed for high-speed data center and enterprise networking applications. It provides 400Gbps optical connectivity over single-mode fiber with a maximum transmission distance of up to 2km.

HPE officially identifies R9J30A as the HPE Networking X1E0 400G QSFP-DD FR4-WDM1300 2km LC Transceiver. HPE specifications confirm its QSFP-DD form factor, 400Gbps transfer speed and 2km maximum distance. ([HPE](https://buy.hpe.com/us/en/Options/Transceiver-Options/Transceivers/Networking-QSFP-DD-Form-Factor/p/R9J30A))

HPE R9J30A 400G QSFP-DD Transceiver Specifications & Features

Overview

The HPE R9J30A X1E0 is a 400Gbps QSFP-DD optical transceiver designed for high-bandwidth network connections. Its FR4-WDM1300 optical technology uses four wavelength lanes over single-mode fiber and supports distances up to 2km.

With a duplex LC connector and SMF support, the R9J30A is suitable for data center interconnects, high-speed aggregation and other enterprise networking deployments requiring 400Gbps connectivity.

Buy HPE R9J30A 400G QSFP-DD Transceiver in Bangladesh

Purchase the HPE R9J30A X1E0 400G QSFP-DD FR4-WDM1300 2km LC Transceiver from Datacom Technologies (BD). We supply HPE Networking transceivers, optical modules, enterprise switches and data center networking equipment in Bangladesh with competitive pricing, technical consultation and nationwide delivery.

Key Features

• 400Gbps high-speed optical connectivity
• QSFP-DD form factor
• FR4-WDM1300 optical technology
• Up to 2km transmission distance
• Duplex LC connector
• Single-mode fiber support
• Four wavelength lanes
• 1271nm, 1291nm, 1311nm and 1331nm wavelengths
• 9/125 µm single-mode fiber
• Designed for HPE Networking environments
• Suitable for high-bandwidth data center applications

400Gbps High-Speed Networking

The HPE R9J30A provides a total optical data rate of 400Gbps, making it suitable for high-bandwidth data center and enterprise networking environments.

400Gbps connectivity helps support bandwidth-intensive applications such as data center aggregation, server connectivity, cloud infrastructure, storage networking and high-capacity interconnects.

QSFP-DD Form Factor

The R9J30A uses the QSFP-DD form factor. HPE identifies the product type specifically as QSFP-DD in its technical specifications. ([HPE](https://www.hpe.com/dk/en/product-catalog/options/pip.specifications.transceivers.1014678602.html))

QSFP-DD provides a compact, high-density optical interface for modern high-speed network equipment and enables 400Gbps connectivity in compatible networking platforms.

FR4-WDM1300 Technology

The R9J30A uses FR4-WDM1300 optical technology. HPE's Comware documentation identifies four wavelength lanes at 1271nm, 1291nm, 1311nm and 1331nm. ([HPE Aruba Networking](https://arubanetworking.hpe.com/techdocs/comware/UG/cmwr/HPECmrw-basedDevicesTransceiverModulesUG_400G_6W100.pdf))

Wavelength-division multiplexing allows the four optical lanes to operate over the same single-mode fiber path, providing 400Gbps aggregate connectivity through the QSFP-DD module.

2km Transmission Distance

The R9J30A supports a maximum transmission distance of 2km. HPE officially lists 2km as the maximum distance for this transceiver. ([HPE](https://www.hpe.com/dk/en/product-catalog/options/pip.specifications.transceivers.1014678602.html))

This makes the module suitable for short- to medium-distance single-mode fiber links between network devices within data centers, campuses and nearby facilities.

LC Connector

The R9J30A uses a duplex LC connector. HPE's 400G Comware documentation categorizes the R9J30A among QSFP-DD optical transceivers using LC connectors. ([HPE Aruba Networking](https://arubanetworking.hpe.com/techdocs/comware/UG/cmwr/HPECmrw-basedDevicesTransceiverModulesUG_400G_6W100.pdf))

The LC interface provides a compact fiber connector suitable for high-density data center patching and structured optical cabling.

Single-Mode Fiber

The R9J30A is designed for single-mode fiber (SMF) with a documented fiber diameter of 9/125 µm. ([HPE Aruba Networking](https://arubanetworking.hpe.com/techdocs/comware/UG/cmwr/HPECmrw-basedDevicesTransceiverModulesUG_400G_6W100.pdf))

Use compatible single-mode optical cabling and LC connectors when deploying this transceiver.

Four Optical Wavelengths

These four wavelengths form the FR4-WDM optical architecture used by the R9J30A for 400Gbps transmission. ([HPE Aruba Networking](https://arubanetworking.hpe.com/techdocs/comware/UG/cmwr/HPECmrw-basedDevicesTransceiverModulesUG_400G_6W100.pdf))

Optical Power Parameters

HPE's Comware documentation specifies transmit power of approximately -3.3 to +3.5 dBm per lane and receive power of approximately -7.3 to +3.5 dBm per lane for R9J30A. ([HPE Aruba Networking](https://arubanetworking.hpe.com/techdocs/comware/UG/cmwr/HPECmrw-basedDevicesTransceiverModulesUG_400G_6W100.pdf))

Optical power and link-budget requirements should be checked when designing longer fiber links or deploying the module through patch panels and other optical infrastructure.

Data Center Applications

The R9J30A is designed for high-bandwidth networking environments where 400Gbps connectivity and up to 2km reach are required.

• Data center interconnects
• 400G network aggregation
• High-speed switch uplinks
• Cloud infrastructure
• Enterprise data centers
• High-performance computing networks
• Storage networking
• Campus data center links
• Network core and aggregation

HPE Networking Compatibility

HPE lists the R9J30A as an HPE Networking X1E0 transceiver. HPE's Comware documentation also lists R9J30A in its 400G QSFP-DD transceiver documentation. ([HPE](https://buy.hpe.com/us/en/Options/Transceiver-Options/Transceivers/Networking-QSFP-DD-Form-Factor/p/R9J30A))

HPE's Comware switch documentation also lists R9J30A among supported QSFP-DD transceiver options. ([HPE Aruba Networking](https://arubanetworking.hpe.com/techdocs/comware/UG/cmwr/HPECmrw-basedDevicesTransceiverModulesUG_400G_6W100.pdf))

Actual compatibility depends on the exact switch model, firmware and supported transceiver matrix. Always verify the target HPE Networking device before installation.

HPE R9J30A vs 400G DR4

Why Choose HPE R9J30A?

• 400Gbps network capacity
• 2km single-mode fiber reach
• Compact QSFP-DD form factor
• Duplex LC connectivity
• FR4-WDM1300 optical architecture
• Four wavelength lanes
• Suitable for high-density data centers
• Designed for HPE Networking environments
• Suitable for high-speed aggregation and interconnects

Installation Considerations

Before installing the R9J30A, confirm that the target network switch supports the HPE Networking X1E0 400G QSFP-DD FR4-WDM1300 transceiver. Also verify the switch firmware and transceiver compatibility matrix.

Use compatible 9/125 µm single-mode fiber with duplex LC connectors. Clean and inspect optical connectors before installation to minimize insertion loss and link problems.

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies HPE Networking transceivers, optical modules, enterprise switches and data center networking equipment in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the HPE R9J30A?
The HPE R9J30A is an HPE Networking X1E0 400G QSFP-DD FR4-WDM1300 2km LC optical transceiver.

Q2: What is the data rate?
The R9J30A provides a 400Gbps transfer rate. ([HPE](https://www.hpe.com/dk/en/product-catalog/options/pip.specifications.transceivers.1014678602.html))

Q3: What is the maximum transmission distance?
The maximum specified distance is 2km. ([HPE](https://www.hpe.com/dk/en/product-catalog/options/pip.specifications.transceivers.1014678602.html))

Q4: What form factor does R9J30A use?
It uses the QSFP-DD form factor.

Q5: What type of fiber does R9J30A use?
It uses single-mode fiber (SMF), with a documented 9/125 µm fiber specification. ([HPE Aruba Networking](https://arubanetworking.hpe.com/techdocs/comware/UG/cmwr/HPECmrw-basedDevicesTransceiverModulesUG_400G_6W100.pdf))

Q6: What connector does R9J30A use?
The R9J30A uses a duplex LC connector.

Q7: What wavelengths does R9J30A use?
The four wavelengths are 1271nm, 1291nm, 1311nm and 1331nm. ([HPE Aruba Networking](https://arubanetworking.hpe.com/techdocs/comware/UG/cmwr/HPECmrw-basedDevicesTransceiverModulesUG_400G_6W100.pdf))

Q8: What does FR4-WDM1300 mean?
FR4-WDM1300 refers to a 400G optical architecture using four wavelength lanes around the 1300nm optical band.

Q9: Is R9J30A suitable for multimode fiber?
No. HPE documentation specifies single-mode fiber for R9J30A.

Q10: Is R9J30A suitable for 10km links?
No. The specified maximum distance is 2km. For longer links, select an appropriate HPE 400G transceiver designed for the required distance.

Q11: Can R9J30A be used with any QSFP-DD switch?
Not necessarily. The switch must support the specific HPE transceiver and optical configuration. Always check the manufacturer's compatibility matrix.

Q12: What is the weight of R9J30A?
HPE lists the product weight as 49.9 grams. ([HPE](https://www.hpe.com/dk/en/product-catalog/options/pip.specifications.transceivers.1014678602.html))

Q13: What are the optical power specifications?
HPE documents transmit power of -3.3 to +3.5 dBm per lane and receive power of -7.3 to +3.5 dBm per lane. ([HPE Aruba Networking](https://arubanetworking.hpe.com/techdocs/comware/UG/cmwr/HPECmrw-basedDevicesTransceiverModulesUG_400G_6W100.pdf))

Q14: Where can I buy HPE R9J30A in Bangladesh?
You can contact Datacom Technologies (BD) for HPE Networking transceivers, optical modules, switches and enterprise networking equipment with competitive pricing and nationwide delivery.
