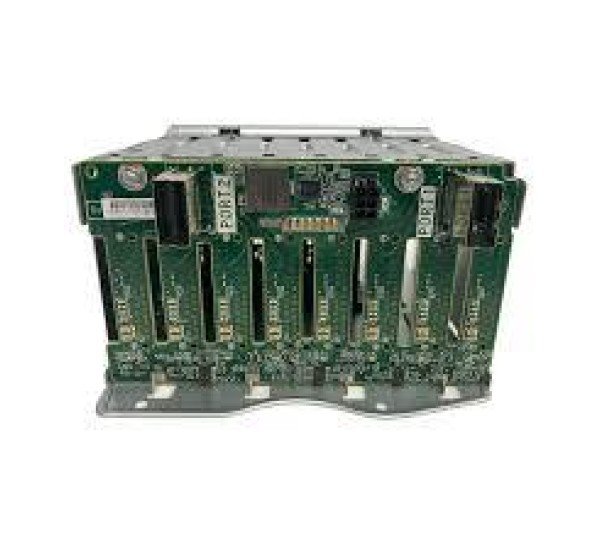

HPE DL38X Gen10 SFF Box1/2 Cage Backplane Kit (826691-B21 / 871388-001 / 766957-001)
The HPE DL38X Gen10 SFF Box1/2 Cage Backplane Kit (826691-B21 / 871388-001 / 766957-001) is an enterprise storage expansion component designed for the **HPE ProLiant DL380 Gen10 server platform. This backplane kit enables support for 8 Small Form Factor (2.5-inch) SAS or SATA drives within Box 1 or Box 2 drive cages of the server chassis.
Engineered by Hewlett Packard Enterprise, this drive cage backplane provides reliable connectivity between installed storage drives and the server’s RAID or SAS controller. It supports high-speed enterprise storage configurations and allows organizations to scale storage capacity up to 24 SFF drives across the front bays of the server.
Designed for enterprise data centers and virtualization environments, the kit offers hot-swap drive support, enabling administrators to replace or upgrade drives without interrupting system operations.
SPECIFICATION
| Feature | Details |
|---|---|
| Product Name | HPE DL38X Gen10 SFF Box1/2 Cage Backplane Kit |
| Part Numbers | 826691-B21 / 871388-001 / 766957-001 |
| Compatible Server | HPE ProLiant DL380 Gen10 |
| Drive Support | 8 x 2.5-inch SFF drives per cage |
| Maximum Front Drives | Up to 24 SFF drives |
| Drive Interface | SAS / SATA |
| Form Factor | Small Form Factor (SFF) |
| Drive Type | Hot-swap supported |
| Component Type | Drive cage and backplane kit |
| Application | Enterprise server storage expansion |
HPE DL38X Gen10 SFF Box1/2 Cage Backplane Kit Description
The HPE 826691-B21 SFF Box1/2 Cage Backplane Kit is designed to expand the internal storage capacity of DL380 Gen10 enterprise servers. This kit includes the drive cage and backplane assembly, which allows administrators to install eight 2.5-inch SAS or SATA drives in Box 1 or Box 2 drive bays.
The backplane acts as the central communication interface between the drives and the server storage controller, ensuring stable signal transmission and reliable power distribution to installed drives. It also supports hot-swap functionality, which allows drives to be replaced or upgraded without shutting down the server system.
This enterprise storage solution is widely used in data centers, virtualization clusters, and cloud infrastructures, where scalable and reliable storage performance is essential.
KEY FEATURES
Supports 8 x 2.5-inch SFF SAS/SATA drives per cage
Designed for HPE ProLiant DL380 Gen10 servers
Enables front drive storage expansion up to 24 SFF drives
Supports hot-swap drive installation
Provides reliable enterprise storage connectivity
Includes drive cage and backplane assembly
Ideal for virtualization, cloud computing, and enterprise workloads
WHERE IT CAN BE USED
Enterprise Data Centers
Cloud Computing Infrastructure
Virtualization Platforms
Enterprise Database Servers
High-Performance Computing (HPC)
Storage and Backup Systems
Mission-Critical IT Environments
