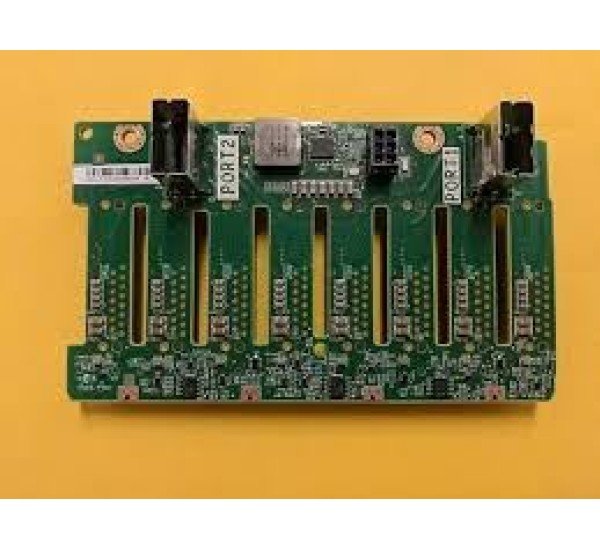

HPE ProLiant DL380 Gen9 8-SFF SAS Backplane Board – 832305-001

The HPE ProLiant DL380 Gen9 8-SFF SAS Backplane Board 832305-001 is a storage backplane designed for compatible HPE ProLiant DL380 Gen9 server configurations using an 8-bay 2.5-inch Small Form Factor (SFF) drive cage.

HPE PartSurfer identifies 832305-001 as the DL380p Gen9 8-SFF SAS Backplane 12Gb/s. HPE also lists 832305-002 as a related revision and 777279-001 as the SAS/SATA 8-SFF backplane board for the same general drive-cage family.

HPE 832305-001 Backplane Features

• Original HPE ProLiant DL380 Gen9 8-SFF SAS backplane
• Supports 8-bay 2.5-inch SFF drive configurations
• 12Gb/s SAS interface capability
• Designed for compatible DL380 Gen9 storage configurations
• Used with supported SAS storage controllers and cabling
• Suitable for server storage maintenance and replacement

Technical Specifications

HPE DL380 Gen9 8-SFF SAS Backplane

The 832305-001 is specifically identified by HPE as a DL380p Gen9 8-SFF SAS backplane with 12Gb/s interface capability. It is intended for the 8-SFF storage configuration rather than the DL380 Gen9's larger LFF drive-cage configurations.

8-Bay SFF Storage Configuration

The backplane provides the physical interface between the installed SFF drives and the server's compatible SAS storage controller or HBA. It is used in an 8-bay 2.5-inch SFF drive configuration and is suitable for supported enterprise SAS storage deployments.

The backplane itself does not perform RAID processing. RAID functionality is provided by a compatible HPE Smart Array controller or other supported storage controller.

12Gb/s SAS Connectivity

HPE identifies the 832305-001 specifically as a 12Gb/s SAS backplane. Actual storage performance depends on the installed drives, Smart Array controller or HBA, cabling and overall server configuration.

Related HPE Backplane Part Numbers

HPE's parts information also identifies 777279-001 as an 8-SFF SAS/SATA backplane board that mounts on the rear of the 8-bay SFF hard drive cage and supports up to 12Gb/s transfer speed. HPE PartSurfer records show 777279-001 in DL380 Gen9 8-SFF server configurations.

Note: 832305-001 and 777279-001 should not automatically be treated as interchangeable merely because both are associated with DL380 Gen9 8-SFF configurations. Match the replacement against the existing backplane, drive cage and server configuration before ordering.

Compatibility

The 832305-001 is intended for compatible HPE ProLiant DL380 Gen9 / DL380p Gen9 8-SFF configurations.

• HPE ProLiant DL380 Gen9 8-SFF
• HPE ProLiant DL380p Gen9 8-SFF
• Compatible 2.5-inch SFF SAS drive configurations
• Supported HPE Smart Array and SAS HBA storage configurations

Important: The DL380 Gen9 platform supports multiple drive-cage and backplane configurations. Verify the existing backplane part number and drive-cage type before purchasing.

Applications

• Replacement of a failed DL380 Gen9 8-SFF SAS backplane
• Enterprise SAS storage maintenance
• DL380 Gen9 server refurbishment
• 8-bay SFF storage expansion or restoration
• RAID controller and HBA-based SAS storage deployments

HPE DL380 Gen9 8-SFF Backplane Price in Bangladesh

The price of the HPE 832305-001 DL380 Gen9 8-SFF SAS Backplane in Bangladesh may vary depending on product condition, sourcing and availability. Contact Datacom Technologies (BD) for current pricing and compatibility confirmation.

Why Choose HPE 832305-001?

• Original HPE DL380 Gen9 8-SFF SAS backplane part
• 12Gb/s SAS interface capability
• Designed for 8-bay 2.5-inch SFF storage configurations
• Suitable for compatible HPE Smart Array and SAS HBA deployments
• Useful for DL380 Gen9 server repair and storage maintenance

Order HPE 832305-001 in Bangladesh

For the HPE ProLiant DL380 Gen9 8-SFF SAS Backplane Board 832305-001, contact Datacom Technologies (BD) for pricing, compatibility verification and procurement support.
