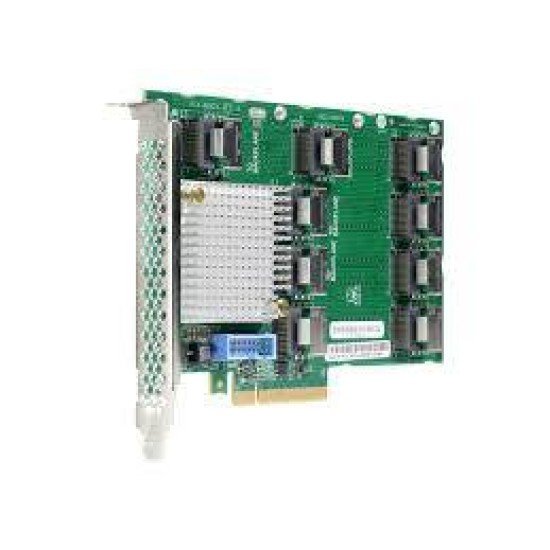

HPE Smart Array 12Gb PCIe SAS Expander Card – 876907-001
The HPE Smart Array 12Gb PCIe SAS Expander Card (876907-001) is an internal storage expansion component designed for compatible HPE ProLiant server configurations. It expands the number of internal SAS and SATA storage devices that can be connected through a supported HPE Smart Array controller or Smart HBA.
The expander provides 12Gb/s SAS and 6Gb/s SATA connectivity through 28 physical links across nine internal x4 Mini-SAS ports. It uses a PCI Express 3.0 x8 link and can support up to 28 internal drive bays when used with a compatible server platform and supported storage controller.
HPE 876907-001 SAS Expander Features
- HPE Smart Array 12Gb PCIe SAS Expander
- 28 physical SAS/SATA links
- Nine internal x4 Mini-SAS ports
- 12Gb/s SAS connectivity
- 6Gb/s SATA connectivity
- PCI Express 3.0 x8 link
- Supports mixed SAS and SATA drives on supported configurations
- Supports up to 28 internal drives depending on server configuration
- Supports up to 64 logical drives when connected to a supported Smart Array Controller
- Full-height expansion card design
HPE Smart Array 12Gb SAS Expander Technical Specifications
| Specification |
Details |
| Brand |
HPE |
| Part Number |
876907-001 |
| Product Type |
PCIe SAS Expander Card |
| Storage Interface |
SAS / SATA |
| SAS Speed |
12Gb/s |
| SATA Speed |
6Gb/s |
| PCIe Interface |
PCI Express 3.0 x8 |
| Physical Links |
28 |
| Internal Ports |
9 x4 Mini-SAS ports |
| Controller Ports |
2 x4 Mini-SAS ports for connection to supported Smart Array controllers or Smart HBAs |
| Drive-Side Ports |
7 x4 Mini-SAS ports for connection to compatible drive backplanes |
| Maximum Internal Drives |
Up to 28, dependent on server configuration |
| Logical Drives |
Up to 64 when connected to a supported Smart Array Controller |
| Card Type |
Internal storage expansion card |
HPE 876907-001 Compatibility
The 876907-001 expander is used across selected HPE ProLiant Gen9 and Gen10 server configurations. HPE documentation lists server-specific 12G SAS Expander kits for platforms including the DL380 Gen9, ML350 Gen9, DL560 Gen9, DL560 Gen10 and DL38x Gen10.
Examples include the HPE 12Gb SAS Expander Card with Cables for DL380 Gen9 (727250-B21), HPE 12Gb SAS Expander Card for ML350 Gen9 (769635-B21), HPE ProLiant DL560 Gen9 SAS Expander Card (804228-B21), HPE DL560 Gen10 SAS Expander Kit (873444-B21), and HPE DL38X Gen10 12Gb SAS Expander (870549-B21).
Because the cable kit and server-side configuration differ between platforms, the bare 876907-001 card should not be treated as a universal plug-and-play replacement for every HPE 12G SAS Expander kit. Confirm the exact server model, drive cage, backplane, Smart Array controller and required cables before installation.
Applications
- Internal SAS storage expansion
- Internal SATA storage expansion
- HPE ProLiant server storage upgrades
- Multi-drive SAS/SATA configurations
- Expansion of compatible Smart Array storage environments
- Large internal drive-cage configurations
- Enterprise server storage infrastructure
HPE Smart Array 12Gb PCIe SAS Expander Price in Bangladesh
For the latest HPE 876907-001 Smart Array 12Gb PCIe SAS Expander Card price in Bangladesh, contact Datacom Technologies (BD). Pricing and availability may vary depending on sourcing, product condition, warranty and whether the card is supplied as a server-specific kit with cables.
Why Choose HPE 876907-001?
- Genuine HPE 12Gb PCIe SAS Expander spare part
- 28 physical links for high-density internal storage expansion
- Supports both 12Gb/s SAS and 6Gb/s SATA
- PCIe 3.0 x8 host interface
- Designed for compatible HPE Smart Array and Smart HBA configurations
- Useful for expanding supported HPE ProLiant internal drive configurations
Buy HPE Smart Array 12Gb SAS Expander in Bangladesh
To purchase the HPE Smart Array 12Gb PCIe SAS Expander Card 876907-001 in Bangladesh, contact Datacom Technologies (BD) for current pricing, server compatibility confirmation and cable-kit requirements.
