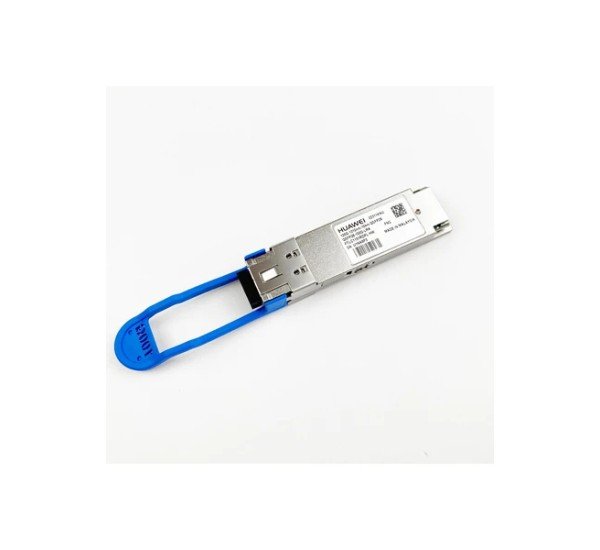

Huawei QSFP-100G-CLR4 Transceiver Module - 02311MNP

About Huawei QSFP-100G-CLR4 Transceiver Module - 02311MNP in Bangladesh

The Huawei QSFP-100G-CLR4 is a 100Gbps QSFP28 optical transceiver designed for high-speed Ethernet networking, data center interconnects and enterprise network infrastructure. With part number 02311MNP, the module provides 100Gbps transmission over single-mode fiber using four CWDM wavelengths and an LC optical connector.

Huawei specifies the QSFP-100G-CLR4 with a QSFP28 form factor, 100Gbit/s transmission rate, LC connector, single-mode fiber support and a target transmission distance of 2km over G.652 fiber. The module supports digital diagnostic monitoring (DDM) and operates from 0°C to 70°C. :contentReference[oaicite:1]{index=1}

Huawei QSFP-100G-CLR4 02311MNP Specifications & Features

Overview

The Huawei QSFP-100G-CLR4 provides 100Gbps optical connectivity for compatible Huawei networking equipment. It uses the compact QSFP28 form factor and connects through an LC interface to single-mode fiber.

The module uses four optical wavelengths—1271nm, 1291nm, 1311nm and 1331nm—to deliver 100Gbps connectivity over a maximum target distance of 2km using G.652 single-mode fiber. :contentReference[oaicite:2]{index=2}

Buy Huawei QSFP-100G-CLR4 02311MNP in Bangladesh

Buy the Huawei QSFP-100G-CLR4 100G QSFP28 Transceiver Module with part number 02311MNP from Datacom Technologies (BD). We supply Huawei optical transceivers, QSFP28 modules, SFP modules, enterprise networking equipment and data center components in Bangladesh.

Contact our sales team for current pricing, stock availability, compatibility confirmation and enterprise networking requirements.

Key Features

• 100Gb/s high-speed optical connectivity
• QSFP28 compact form factor
• 100GBASE-CLR4 application standard
• LC optical connector
• Single-mode fiber (SMF) support
• Up to 2km transmission distance over G.652 fiber
• Four optical wavelengths: 1271nm, 1291nm, 1311nm and 1331nm
• Digital Diagnostic Monitoring (DDM) support
• 0°C to 70°C operating temperature
• Designed for compatible Huawei 100G network equipment

100Gbps QSFP28 Connectivity

The Huawei QSFP-100G-CLR4 supports a 100Gbps transmission rate in the QSFP28 form factor. It is designed for high-bandwidth networking applications where a compact 100G optical interface is required.

Its QSFP28 form factor allows high-density deployment in compatible switches, routers and data center networking platforms.

2km Single-Mode Fiber Transmission

The QSFP-100G-CLR4 is designed for transmission over single-mode G.652 fiber for distances up to 2km. This makes it suitable for short- to medium-distance data center interconnects, campus networks and enterprise network links.

Actual achievable distance can depend on fiber quality, connectors, link budget, patch panels and the overall optical infrastructure.

Four-Wavelength Optical Transmission

The module operates using four center wavelengths: 1271nm, 1291nm, 1311nm and 1331nm. Huawei specifies these wavelengths for the QSFP-100G-CLR4. :contentReference[oaicite:3]{index=3}

The multi-wavelength architecture enables 100Gbps transmission over single-mode fiber while maintaining the compact QSFP28 form factor.

LC Connector

The Huawei QSFP-100G-CLR4 uses an LC connector. Unlike 100G SR4 or PSM4 modules that commonly use MPO connectors, the CLR4 module is designed for LC-connected single-mode fiber infrastructure.

This makes it convenient for deployments using duplex LC single-mode fiber cabling.

Single-Mode Fiber Support

The module is designed for SMF and specifically targets G.652 single-mode fiber for its 2km transmission distance. :contentReference[oaicite:4]{index=4}

It should not be confused with multimode 100G SR4 modules, which use different optical characteristics, fiber types and connectors.

Digital Diagnostic Monitoring

Huawei specifies Digital Diagnostic Monitoring (DDM) support for the QSFP-100G-CLR4. DDM can provide optical module monitoring information through compatible networking equipment.

Supported monitoring parameters and the way they are displayed depend on the host switch, router or network operating system.

Operating Temperature

The QSFP-100G-CLR4 has a specified operating case temperature range of 0°C to 70°C. :contentReference[oaicite:5]{index=5}

This temperature range makes it suitable for standard controlled data center, enterprise networking and telecommunications environments.

Optical Specifications

These optical characteristics are specified by Huawei for part number 02311MNP. :contentReference[oaicite:6]{index=6}

Applications

• 100GbE Data Center Networks
• Data Center Interconnect (DCI)
• Enterprise Core Networks
• High-Speed Campus Networks
• Cloud Infrastructure
• High-Performance Computing Networks
• Telecommunications Networks
• Server and Storage Networking
• High-Bandwidth Network Uplinks
• Huawei CloudEngine Deployments

Data Center Interconnect

The 2km single-mode fiber reach makes the QSFP-100G-CLR4 useful for short-distance data center interconnect applications where high-bandwidth 100Gbps connectivity is required.

It can help connect compatible 100G switches and networking platforms across server rooms, data halls or nearby facilities within the supported optical link budget.

Huawei Network Compatibility

Huawei documentation lists QSFP-100G-CLR4 across multiple compatible networking platforms and hardware descriptions. The module is identified by part number 02311MNP. :contentReference[oaicite:7]{index=7}

Compatibility should always be checked against the exact Huawei switch or router model, software version and port type before installation.

QSFP-100G-CLR4 vs QSFP28-100G-SR4

QSFP-100G-CLR4 vs QSFP28-100G-LR4

Huawei separately identifies its QSFP28-100G-LR4 module and part number in its optical-module documentation, so CLR4 and LR4 should not be treated as interchangeable solely because both use QSFP28 and LC connectivity. :contentReference[oaicite:8]{index=8}

Compatibility Considerations

• Verify the host switch or router supports Huawei QSFP28 optical modules.
• Confirm the exact port supports 100GbE QSFP28 operation.
• Use compatible single-mode fiber cabling.
• Use G.652 SMF for the specified 2km target reach.
• Verify the optical link budget before deployment.
• Confirm software/firmware compatibility on the host platform.
• Do not substitute an SR4 or PSM4 module without checking connector and fiber requirements.

Benefits

• 100Gbps high-speed networking
• Compact QSFP28 form factor
• 2km single-mode fiber reach
• LC connector for duplex SMF infrastructure
• Four-wavelength optical transmission
• DDM support
• 0°C to 70°C operating temperature
• Suitable for high-density data center deployments
• Suitable for enterprise and telecom networks
• Huawei OEM optical module

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies Huawei optical transceivers, QSFP28 modules, SFP/SFP+ modules, enterprise switches, routers and data center networking components in Bangladesh.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Huawei QSFP-100G-CLR4?
The Huawei QSFP-100G-CLR4 is a 100Gbps QSFP28 optical transceiver designed for 100G Ethernet connectivity over single-mode fiber.

Q2: What is the Huawei part number?
The part number is 02311MNP. Huawei's official documentation identifies 02311MNP as the part number for QSFP-100G-CLR4. :contentReference[oaicite:9]{index=9}

Q3: What is the transmission speed?
The module supports a 100Gb/s transmission rate.

Q4: What form factor does it use?
It uses the QSFP28 form factor.

Q5: What connector does QSFP-100G-CLR4 use?
It uses an LC optical connector.

Q6: What type of fiber does it support?
It is designed for single-mode fiber (SMF), with Huawei specifying G.652 SMF for the 2km target distance.

Q7: What is the maximum transmission distance?
The specified target transmission distance is 2km over G.652 single-mode fiber. :contentReference[oaicite:10]{index=10}

Q8: What wavelengths does the module use?
It uses four center wavelengths: 1271nm, 1291nm, 1311nm and 1331nm.

Q9: Does it support DDM?
Yes. Huawei specifies Digital Diagnostic Monitoring support.

Q10: What is the operating temperature?
The specified operating case temperature is 0°C to 70°C.

Q11: Is QSFP-100G-CLR4 the same as 100G LR4?
No. Although both are 100G QSFP28 optical modules using LC/SMF configurations, CLR4 is specified for approximately 2km, while LR4 is designed for substantially longer-distance links.

Q12: Can QSFP-100G-CLR4 use multimode fiber?
The Huawei specification identifies the optical fiber type as single-mode fiber. Use compatible SMF rather than assuming multimode compatibility.

Q13: Is 02311MNP suitable for data centers?
Yes. Its 100Gbps bandwidth, QSFP28 form factor and 2km SMF reach make it suitable for compatible data center and high-speed enterprise networking applications.

Q14: Is QSFP-100G-CLR4 IEEE standard compliant?
Huawei identifies the application standard as 100GBASE-CLR4 (non-standard). :contentReference[oaicite:11]{index=11}

Q15: Where can I buy Huawei QSFP-100G-CLR4 02311MNP in Bangladesh?
You can contact Datacom Technologies (BD) for Huawei 100G QSFP28 transceivers, optical networking equipment and data center connectivity solutions.
