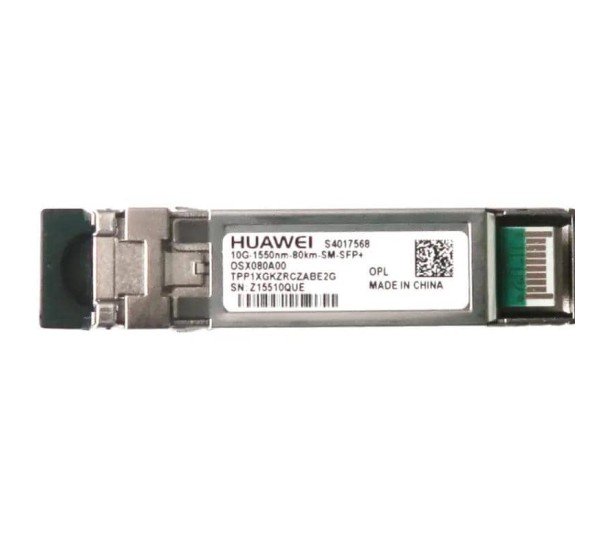

Huawei 10G 80KM SFP+ Modules

About Huawei 10G 80KM SFP+ Modules in Bangladesh

The Huawei 10G 80KM SFP+ Module is a long-distance optical transceiver designed for high-speed 10Gbps network connectivity over single-mode fiber. Operating at a 1550nm wavelength and supporting transmission distances of up to 80km, it is suitable for long-haul enterprise, data center, service-provider and metropolitan-area network applications.

Huawei's official documentation identifies the 80km commercial module as 10Gbps-SFP+-SMF-1550nm-80km-commercial, with part number 02310PVU and model OSX080N04. It uses an SFP+ form factor, LC connector, single-mode fiber and supports 10GBASE-ZR/ZW. :contentReference[oaicite:2]{index=2}

Huawei 10G 80KM SFP+ Module Specifications & Features

Overview

The Huawei 10G 80KM SFP+ Module provides high-speed optical connectivity for network links requiring long transmission distances. Its 1550nm optical wavelength and single-mode fiber interface are designed for long-haul fiber connections of up to 80km under specified conditions.

The compact SFP+ form factor allows the module to be installed in compatible Huawei network equipment and supported 10Gbps optical interfaces.

Buy Huawei 10G 80KM SFP+ Module in Bangladesh

Purchase Huawei 10G 80KM SFP+ Modules from Datacom Technologies (BD). We supply Huawei optical transceivers, SFP/SFP+ modules, enterprise networking equipment, fiber-optic components and data center networking solutions in Bangladesh with competitive pricing, technical support and nationwide delivery.

Key Features

• 10Gbps high-speed optical transmission
• Up to 80km transmission distance
• 1550nm operating wavelength
• Single-Mode Fiber (SMF) support
• LC optical connector
• SFP+ compact form factor
• 10GBASE-ZR/ZW application standard
• Digital Diagnostic Monitoring support
• 0°C to 70°C commercial operating temperature
• Suitable for long-haul network connectivity
• Designed for compatible Huawei networking equipment

Applications

• Huawei Enterprise Networks
• Data Center Interconnects
• Metropolitan Area Networks
• Long-Distance Fiber Links
• Service Provider Networks
• Telecommunication Networks
• Campus Network Interconnection
• Core Network Uplinks
• Enterprise WAN Connectivity
• High-Speed Optical Backbones

10Gbps High-Speed Optical Connectivity

The Huawei 10G 80KM SFP+ module supports 10Gbps-class optical transmission. Huawei specifies transmission rates of 9.953Gbps and 10.3125Gbps for the 80km module. :contentReference[oaicite:3]{index=3}

This makes the transceiver suitable for high-bandwidth uplinks, long-distance interconnection and network backbone applications where standard 1Gbps optical modules are insufficient.

80KM Long-Distance Transmission

The module is designed for a target transmission distance of 80km over single-mode fiber. Huawei's official specification lists 80km as the target transmission distance for the 10Gbps-SFP+-SMF-1550nm-80km-commercial module. :contentReference[oaicite:4]{index=4}

Actual achievable distance depends on fiber characteristics, optical loss, connector loss, splicing, network equipment and the complete optical link budget.

1550nm Optical Wavelength

The module uses a 1550nm center wavelength, with Huawei specifying a transmitter operating wavelength range of 1530nm to 1565nm. :contentReference[oaicite:5]{index=5}

The 1550nm wavelength is commonly used for long-distance single-mode fiber transmission and is well suited to extended optical links.

Single-Mode Fiber Support

The Huawei 10G 80KM SFP+ is designed for Single-Mode Fiber (SMF). SMF is required for the specified long-distance transmission performance.

It should not be paired with ordinary multimode fiber when attempting to achieve the specified 80km transmission distance.

LC Connector

The module uses an LC optical connector. Huawei's official documentation identifies LC as the connector type for the 10Gbps-SFP+-SMF-1550nm-80km-commercial module. :contentReference[oaicite:6]{index=6}

Use compatible LC single-mode fiber patch cables and ensure that the optical connectors are clean and properly seated during installation.

10GBASE-ZR/ZW

Huawei specifies IEEE 802.3ae, 10GBASE-ZR/ZW as the application standard for this 80km optical module. :contentReference[oaicite:7]{index=7}

This makes the module suitable for long-distance 10Gbps optical networking applications where extended reach is required.

Digital Diagnostic Monitoring

The module supports SFF-8472 Digital Diagnostic Monitoring (DDM). DDM can provide supported optical and module operating information through compatible network equipment. :contentReference[oaicite:8]{index=8}

Available diagnostic parameters depend on the host network device and its software implementation.

Optical Performance

Huawei specifies a maximum average transmitter optical power of 4dBm and a minimum average transmitter optical power of 0dBm. The documented receiver sensitivity is -24dBm, with an overload power of -7dBm. :contentReference[oaicite:9]{index=9}

These optical characteristics form part of the module's link-budget requirements and should be considered when designing an 80km fiber connection.

Commercial Operating Temperature

The Huawei 10G 80KM SFP+ commercial module is specified for an operating case temperature range of 0°C to 70°C. :contentReference[oaicite:10]{index=10}

Ensure that the host networking equipment provides an appropriate operating environment for the module.

Huawei 02310PVU / OSX080N04

The official Huawei documentation identifies the 80km module with part number 02310PVU and model OSX080N04. :contentReference[oaicite:11]{index=11}

These identifiers should be checked when purchasing or replacing a specific Huawei 10G 80km optical module.

Long-Haul Network Applications

The 80km transmission capability makes the module suitable for network links where switches, routers or other optical devices are separated by significant geographic distances.

• Inter-building connectivity
• Campus backbone links
• Metropolitan network links
• Data center interconnection
• Service provider aggregation
• Long-distance enterprise WAN links
• Telecommunication infrastructure

Huawei Network Compatibility

The module is designed for compatible Huawei SFP+ optical interfaces. Huawei's official documentation lists this module within its 10Gbps SFP+ optical-module portfolio. :contentReference[oaicite:12]{index=12}

Before deployment, verify the exact switch, router or network platform, optical-module compatibility and software/firmware requirements.

Optical Link Budget

For an 80km optical link, the total optical loss of the fiber path must remain within the supported transmitter and receiver power budget.

Fiber attenuation, connector loss, splice loss, patch panels and other passive optical components can reduce the actual achievable transmission distance. Therefore, an 80km-rated transceiver should not automatically be interpreted as guaranteeing 80km operation on every fiber route.

Important Compatibility Considerations

• Confirm the host device supports 10Gbps SFP+ optics
• Use compatible single-mode fiber
• Use LC connectors
• Verify 1550nm optical compatibility
• Check the supported optical distance and link budget
• Confirm Huawei module compatibility with the specific platform
• Verify firmware and optical-module support where applicable
• Keep optical connectors clean before installation

Huawei notes that the interface standard for this specific module is Huawei-specific and that self-loop operation is not supported without adding an optical attenuator. :contentReference[oaicite:13]{index=13}

Huawei 10G 80KM vs 10G 10KM SFP+

Benefits

• Long-distance 80km transmission capability
• 10Gbps high-speed networking
• 1550nm optical wavelength
• Single-mode fiber support
• LC connector
• SFP+ compact form factor
• DDM support
• 10GBASE-ZR/ZW application support
• Suitable for enterprise and service-provider networks
• Ideal for long-distance network backbone connections

Why Buy Huawei 10G 80KM SFP+ Modules from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies Huawei optical transceivers, SFP/SFP+ modules, switches, routers, fiber-optic components and enterprise networking equipment in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Huawei 10G 80KM SFP+ Module?
It is a 10Gbps SFP+ optical transceiver designed for transmission distances of up to 80km over single-mode fiber.

Q2: What is the Huawei part number?
Huawei's official documentation identifies the 80km commercial module as 02310PVU, model OSX080N04. :contentReference[oaicite:14]{index=14}

Q3: What wavelength does the module use?
The center wavelength is 1550nm.

Q4: What fiber type is required?
The module is designed for Single-Mode Fiber (SMF).

Q5: What connector does it use?
It uses an LC connector.

Q6: What is the transmission distance?
The specified target transmission distance is up to 80km over compatible single-mode fiber. :contentReference[oaicite:15]{index=15}

Q7: Does it support DDM?
Yes. Huawei specifies SFF-8472 DDM support for the module. :contentReference[oaicite:16]{index=16}

Q8: What standard does the module support?
Huawei specifies IEEE 802.3ae and 10GBASE-ZR/ZW for the 80km commercial module. :contentReference[oaicite:17]{index=17}

Q9: What is the operating temperature?
The specified commercial operating case temperature is 0°C to 70°C.

Q10: Can this module be used with any SFP+ switch?
Compatibility should be confirmed with the specific switch or router. The optical characteristics, coding and host-platform requirements should be checked before deployment.

Q11: Can it transmit 80km over multimode fiber?
No. The module is designed for single-mode fiber. Multimode fiber should not be used when targeting the specified 80km transmission distance.

Q12: Is this module suitable for data center interconnection?
Yes. Its 10Gbps capacity and long-distance optical reach make it suitable for supported data center interconnection and backbone applications.

Q13: Is this a 10GBASE-LR module?
The Huawei 80km module is specified for 10GBASE-ZR/ZW, rather than the typical 10km 10GBASE-LR application. :contentReference[oaicite:18]{index=18}

Q14: Can it be used for self-loop testing?
Huawei states that self-loop is not supported for this interface; an optical attenuator must be added if self-loop operation is required. :contentReference[oaicite:19]{index=19}
