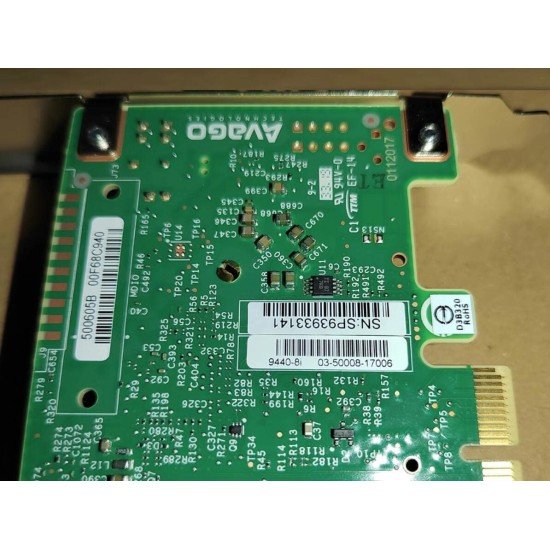

Huawei Avago MegaRAID SAS 94408i RAID Controller Card
The Huawei Avago MegaRAID SAS 94408i RAID Controller Card is a high-performance storage solution designed for enterprise servers and data centers. It supports multiple SAS drives with 12Gb/s transfer speeds, offering advanced RAID configurations for enhanced data protection and reliability. With robust management tools and scalable performance, it ensures efficient storage operations for demanding workloads.
Huawei Avago MegaRAID SAS 9440‑8i RAID Controller – Specifications
| Specification | Detail |
|---|
| Model | Avago MegaRAID SAS 9440‑8i (OEM branded by Huawei/Broadcom) |
| Host Interface | PCI Express 3.1 x8 |
| Controller | Broadcom MegaRAID SAS3408 I/O Processor |
| Supported RAID | Hardware RAID (0, 1, 5, 6, 10, 50, 60) |
| SAS/SATA / NVMe | Tri‑Mode SerDes technology (SAS, SATA & NVMe devices) |
| Data Rate | Up to 12 Gb/s per SAS/SATA lane |
| Total Ports | 8 internal lanes (via Mini‑SAS HD connectors) |
| Internal Connectors | 2 × Mini‑SAS HD (SFF‑8643) ×4 |
| Drive Support | Up to ~63 SAS/SATA devices (plus NVMe depending on config) |
| Cache Support | Host cache / controller cache depends on firmware |
| RAID Utilities | MegaRAID Storage Manager, StorCLI, UEFI HII |
| Supported OS | Windows, Linux, VMware, etc. |
| Form Factor | Low‑profile PCIe add‑on card |
| Operating Temp | ~10°C to 55°C |
| MTBF | ≈3,000,000 hours (varies by vendor) |
| Compliance | FCC, CE, RoHS, UL safety standards |
| Dimensions | ~155.6 mm × 68.9 mm (low‑profile MD2) |
Huawei Avago MegaRAID SAS 9440‑8i RAID Controller – Description
The Huawei Avago MegaRAID SAS 9440‑8i RAID Controller Card is an enterprise‑grade storage controller designed to accelerate and protect data in servers and storage systems. Built on Broadcom’s MegaRAID architecture with a SAS3408 I/O processor, the card delivers high‑bandwidth storage performance with 12 Gb/s SAS/SATA support and Tri‑Mode SerDes technology, enabling it to interface with SAS, SATA and even NVMe devices through a single controller adapter. This versatility allows flexible storage configurations, making it suitable for mixed‑drive environments in data centers, virtualization hosts, and multi‑function servers.
Featuring a PCI Express 3.1 x8 host interface, the 9440‑8i provides efficient system communication and bandwidth for heavy transactional workloads. Its eight internal lanes through dual Mini‑SAS HD (SFF‑8643) connectors support up to approximately 63 SAS/SATA devices, and depending on configuration, a number of NVMe drives in Tri‑Mode setups. Hardware RAID support includes popular RAID levels such as 0, 1, 5, 6, 10, 50, and 60, letting system administrators balance performance, redundancy, and capacity for their specific requirements.
The card also includes support for industry standard management and configuration tools like MegaRAID Storage Manager and StorCLI, enabling GUI and command‑line administration across operating systems including Windows, Linux, and VMware. Its low profile form factor allows deployment in dense server chassis while still meeting industry safety and interoperability standards suitable for enterprise environments.
Key Features
- Avago / Broadcom SAS 94408i Controller – Enterprise-grade RAID processor for high-performance storage.
- 8 Internal SAS/SATA Ports – Connect multiple drives via internal Mini-SAS HD (SFF-8643) connectors.
- 12Gb/s SAS Data Transfer – High-speed throughput for demanding storage environments.
- Supports Multiple RAID Levels – RAID 0, 1, 5, 6, 10, 50, 60 for performance, redundancy, and data protection.
- 2GB DDR3/DDR4 Cache – Enhances read/write operations and reduces latency.
- PCIe 3.0 x8 Interface – High bandwidth connectivity with modern server motherboards.
- Enterprise Reliability – Hot-swap support, online RAID migration, and advanced error handling.
Where It Can Be Used
- Huawei and compatible enterprise servers
- Data centers and cloud infrastructure
- Virtualization platforms like VMware, Hyper-V, and KVM
- Database servers requiring high throughput and reliability
- Backup and high-performance storage systems
Installing Steps
- Power Off the Server – Disconnect all power sources.
- Install the RAID Controller – Insert into an available PCIe 3.0 x8 slot.
- Connect Drives – Attach Mini-SAS HD (SFF-8643) cables to the server backplane or drives.
- Install Optional Cache or Battery Module – If available, to protect cached data during power loss.
- Power On the Server – Enter the RAID BIOS utility during boot (usually Ctrl+H or Ctrl+R).
- Configure RAID Array – Select drives and configure desired RAID levels.
- Install Drivers & Management Software – Use MegaRAID Storage Manager or StorCLI for management.
Compatible Server Models for Huawei / Avago MegaRAID SAS 94408i RAID Controller Card
The Huawei Avago MegaRAID SAS 94408i is a high‑performance 12Gb/s SAS RAID controller from Broadcom/Avago designed for demanding enterprise storage environments. It requires a PCIe 3.0 x8/x16 slot and supports advanced RAID levels, making it ideal for data centers, virtualization, and high‑capacity storage servers.
✅ Huawei Server Models
- Huawei FusionServer RH2288H V3
- Huawei FusionServer RH2288 V2
- Huawei FusionServer RH2288H V5
- Huawei FusionServer RH5885H V3
- Huawei FusionServer 5288 V5
- Huawei KunLun Mission Critical Servers
FAQ for Huawei Avago MegaRAID SAS 94408i RAID Controller Card
1. What is the Huawei MegaRAID SAS 94408i used for?
It is used to manage multiple SAS and SATA drives in enterprise servers, offering high-speed storage performance and data protection.
2. How many drives can it support?
It supports up to 8 internal drives and can scale further using SAS expanders.
3. Does it support SSDs and HDDs?
Yes, it supports both SAS and SATA SSDs/HDDs.
4. Which RAID levels are supported?
RAID 0, 1, 5, 6, 10, 50, and 60 are supported for flexible storage configurations.
5. Can it be used in virtualization environments?
Yes, it is compatible with VMware, Hyper-V, and KVM servers.
What is the price of Huawei Avago MegaRAID SAS 94408i RAID Controller Card in Bangladesh?
The lowest price of Huawei Avago MegaRAID SAS 94408i RAID Controller Card in Bangladesh is 38000৳. You can buy the Huawei Avago MegaRAID SAS 94408i RAID Card at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
