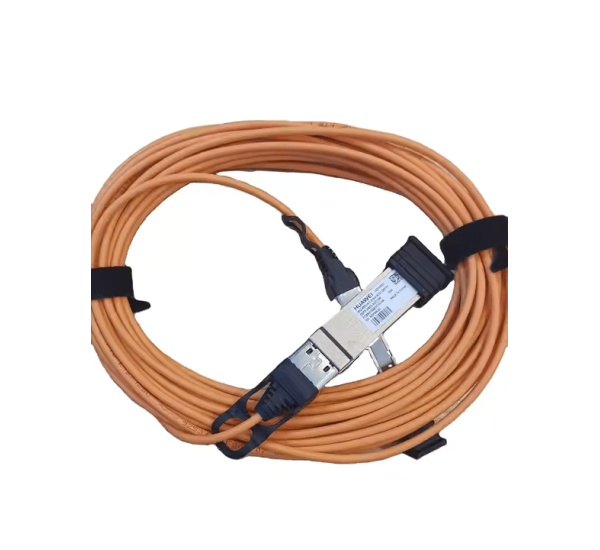

Huawei QSFP-100G-4WDM-40 02312QTL Optical Modules
Datacom Technologies BD is your trusted source for high-quality networking equipment, including the Huawei QSFP-100G-4WDM-40 02312QTL Optical Module. We offer competitive pricing, expert technical support, and reliable delivery services. Contact us today to learn more about our products and services.
Huawei QSFP-100G-4WDM-40 Full Specification
| Parameter |
Value |
| Part Number |
02312QTL |
| Form Factor |
QSFP28 |
| Transmission Rate |
100Gbit/s |
| Center Wavelength |
1310 nm |
| Connector Type |
LC/DLC |
| Optical Fiber Type |
SMF |
| Target Transmission Distance |
Single-mode fiber (G.652) (with diameter of 9 μm): 40 km |
| Maximum Tx Optical Power (AVG) |
6.5 dBm |
| Minimum Tx Optical Power (AVG) |
-2.5 dBm |
| Minimum Extinction Ratio |
4.5 dB |
| Rx Sensitivity (OMA) |
-18.5 dBm |
| Overload Power (AVG) |
-3.5 dBm |
| Working Case Temperature |
0°C to 70°C (32°F to 158°F) |
QSFP-100GB-4WDM-40 Description:
The
Huawei QSFP-100G-4WDM-40 02312QTL Optical Module is a high-performance, small form factor transceiver designed for long-haul data transmission over single-mode fiber (SMF) networks. It supports a transmission rate of 100 Gbit/s and is compliant with the 100GBASE-4WDM standard.
This module utilizes Wavelength Division Multiplexing (WDM) technology to transmit four independent 25G channels over a single fiber, enabling efficient use of fiber resources. The four channels are modulated at different wavelengths within the 1310 nm band, allowing for simultaneous transmission.
The QSFP-100G-4WDM-40 features a QSFP28 form factor, which is a compact and standardized design that is widely used in various networking equipment. It has an LC/DLC connector, providing a reliable and secure connection to optical fibers.
With a target transmission distance of 40 km over SMF, this module is well-suited for applications such as data center interconnects, metro networks, and long-haul backbone networks. It offers high data throughput and low latency, making it an ideal choice for demanding network environments.
Supported/Comparable Models
Huawei QSFP-100G-4WDM-40-ER: Similar to the 02312QTL but with a longer transmission distance of 80 km.
Huawei QSFP-100G-4WDM-40-Lite: A lower-cost version with a shorter transmission distance of 20 km.
Other vendor equivalents: Transceivers from other vendors, such as Cisco, Juniper, and Finisar, that comply with the 100GBASE-4WDM standard.
What is the price of a Huawei QSFP-100G-4WDM-40 02312QTL Optical Modules in Bangladesh?
The Huawei QSFP-100G-4WDM-40 02312QTL Optical Modules typically ranges in price from TK30,000/= to TK50,000/= in Bangladesh. However, please note that actual pricing may vary due to factors such as quantity, warranty, and current market conditions.
For a quote, contact
Datacom Technologies BD:
- Call/WhatsApp: +8801748173213
- Email: sales@datacomtechbd.com or datacomtechnologiesbd@gmail.com
Explore other
Huawei 100Gbps Optical Modules here.
