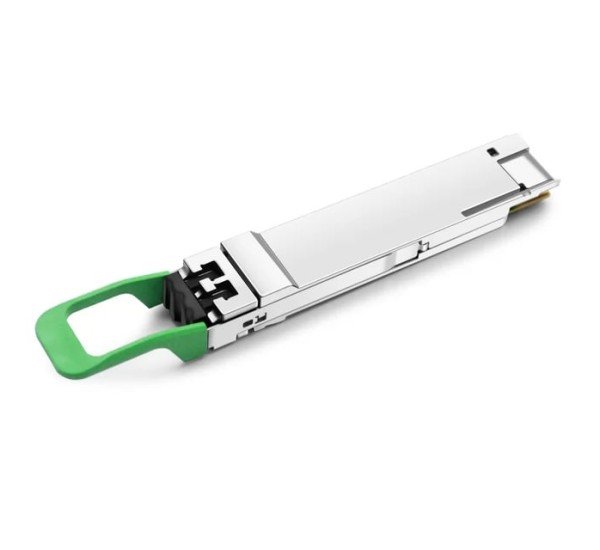

About Huawei QSFP-DD-400G-FR4 400GBASE-FR4 2KM Optical Transceiver Module in Bangladesh
The Huawei QSFP-DD-400G-FR4 is a high-speed 400Gbps optical transceiver designed for compatible Huawei data center and networking platforms. Using the QSFP-DD form factor and 400GBASE-FR4 application standard, the module provides up to 2km transmission over single-mode fiber through a duplex LC/DLC optical interface.
Huawei identifies the module as QSFP-DD-400G-FR4 with part number 02312NPJ. The official specifications list a 400Gbit/s transmission rate, QSFP-DD form factor, LC/DLC connector, single-mode fiber and a target transmission distance of 2km. :contentReference[oaicite:1]{index=1}
Huawei QSFP-DD-400G-FR4 Specifications & Features
| Specification | Details |
|---|
| Brand | Huawei |
| Model | QSFP-DD-400G-FR4 |
| Part Number | 02312NPJ |
| Form Factor | QSFP-DD |
| Transmission Rate | 400Gbps |
| Application Standard | 400GBASE-FR4 |
| Fiber Type | Single-mode Fiber (SMF) |
| Fiber Standard | G.652 |
| Transmission Distance | Up to 2km |
| Connector | LC/DLC |
| Center Wavelengths | 1271nm, 1291nm, 1311nm, 1331nm |
| DDM | Supported |
| Operating Temperature | 0°C to 70°C |
| Transmitter Type | EML |
| Receiver Type | PIN |
| BER | 2.4e-4 |
Overview
The Huawei QSFP-DD-400G-FR4 provides 400Gbps optical connectivity for high-bandwidth networking environments. It is designed around the QSFP-DD form factor and uses the 400GBASE-FR4 standard for transmission over single-mode fiber.
The module supports a target transmission distance of up to 2km on G.652 single-mode fiber, making it suitable for short- to medium-distance data center interconnects and high-speed enterprise networking applications. :contentReference[oaicite:2]{index=2}
Buy Huawei QSFP-DD-400G-FR4 400G Optical Transceiver in Bangladesh
Purchase the Huawei QSFP-DD-400G-FR4 400GBASE-FR4 2KM Optical Transceiver Module from Datacom Technologies (BD). We supply Huawei optical transceivers, data center networking equipment, enterprise switches, fiber connectivity products and high-speed network components in Bangladesh with competitive pricing and technical consultation.
Key Features
- 400Gbps optical transmission
- QSFP-DD form factor
- 400GBASE-FR4 application standard
- Up to 2km transmission distance
- Single-mode fiber support
- G.652 SMF compatibility
- LC/DLC optical connector
- Four CWDM wavelengths
- 1271nm, 1291nm, 1311nm and 1331nm wavelengths
- Digital Diagnostic Monitoring supported
- 0°C to 70°C operating temperature
- Designed for compatible Huawei networking platforms
Applications
- 400G Data Center Networks
- Data Center Interconnect
- Enterprise Core Networking
- High-Speed Network Uplinks
- Cloud Data Centers
- AI Infrastructure Networks
- High-Performance Computing Networks
- Leaf-and-Spine Network Architectures
- Short-Distance Data Center Connectivity
- Huawei CloudEngine Networking Platforms
400Gbps High-Speed Connectivity
The QSFP-DD-400G-FR4 delivers a 400Gbps optical transmission rate, providing high-bandwidth connectivity for modern data center and enterprise networking environments.
400G optical interfaces are designed for high-density network architectures where large amounts of traffic must be transported between switches, routers, servers and other network infrastructure.
400GBASE-FR4 Standard
The Huawei QSFP-DD-400G-FR4 uses the 400GBASE-FR4 application standard. Huawei's official documentation identifies this module specifically as a 400GBASE-FR4 optical module. :contentReference[oaicite:3]{index=3}
FR4 uses four optical wavelengths to provide 400Gbps transmission over single-mode fiber. The Huawei module specifies four center wavelengths of 1271nm, 1291nm, 1311nm and 1331nm. :contentReference[oaicite:4]{index=4}
2KM Transmission Distance
The QSFP-DD-400G-FR4 supports a target transmission distance of up to 2km over G.652 single-mode fiber with a 9µm fiber diameter. :contentReference[oaicite:5]{index=5}
This makes the module appropriate for high-speed connections between network devices located within the same data center campus, nearby facilities or other locations within the supported optical reach.
Single-Mode Fiber Support
The module is designed for single-mode fiber (SMF). Huawei specifies G.652 single-mode fiber with a nominal 9µm diameter for the 2km target transmission distance. :contentReference[oaicite:6]{index=6}
Using the appropriate single-mode fiber cabling and compatible optical connectors is important for achieving the specified transmission distance and link performance.
LC/DLC Connector
The QSFP-DD-400G-FR4 uses an LC/DLC optical connector. Huawei's official product documentation identifies LC/DLC as the connector type. :contentReference[oaicite:7]{index=7}
The duplex LC-style interface provides a practical optical connection for structured data center cabling and point-to-point 400G network links.
Four-Wavelength CWDM Architecture
The FR4 optical design uses four wavelengths across the optical link. Huawei specifies center wavelengths of 1271nm, 1291nm, 1311nm and 1331nm. :contentReference[oaicite:8]{index=8}
This wavelength multiplexing approach allows four optical channels to operate together through the duplex fiber interface while providing the aggregate 400Gbps transmission rate.
Digital Diagnostic Monitoring
The Huawei QSFP-DD-400G-FR4 supports Digital Diagnostic Monitoring (DDM). :contentReference[oaicite:9]{index=9}
DDM provides supported network equipment with diagnostic information that can help administrators monitor optical-module operating conditions and troubleshoot network links.
Operating Temperature
The module has a specified operating case-temperature range of 0°C to 70°C. Huawei lists this range for the QSFP-DD-400G-FR4 optical module. :contentReference[oaicite:10]{index=10}
This commercial-temperature operating range is suitable for many controlled data center and enterprise networking environments.
Optical Transmitter and Receiver
Huawei identifies the QSFP-DD-400G-FR4 transmitter as an EML type and the receiver as a PIN type. :contentReference[oaicite:11]{index=11}
The optical specifications include a maximum transmit optical power of 3.5dBm and minimum transmit optical power of -3.3dBm. Huawei specifies receiver sensitivity as max(-4.6, SECQ-6)dBm. :contentReference[oaicite:12]{index=12}
Data Center Networking
The QSFP-DD-400G-FR4 is designed for high-bandwidth networking environments where 400Gbps optical connectivity is required.
- Leaf-to-spine connectivity
- Spine-to-spine interconnects
- Data center aggregation
- High-speed switch uplinks
- Data center interconnects
- AI and HPC network infrastructure
Huawei CloudEngine Compatibility
Huawei's official CloudEngine S6700 Series hardware documentation includes the QSFP-DD-400G-FR4 in its 400GE QSFP-DD optical-module portfolio. :contentReference[oaicite:13]{index=13}
Compatibility should always be checked against the exact Huawei switch model, software version, port type and supported optical-module list before installation.
400G FR4 vs 400G DR4
| Feature |
Huawei QSFP-DD-400G-FR4 |
Typical 400G DR4 |
| Form Factor |
QSFP-DD |
QSFP-DD |
| Transmission Rate |
400Gbps |
400Gbps |
| Application Standard |
400GBASE-FR4 |
400GBASE-DR4 |
| Fiber Type |
SMF |
SMF |
| Target Reach |
2km |
Typically shorter |
| Connector |
LC/DLC |
Typically MPO |
| Wavelengths |
1271/1291/1311/1331nm |
1311nm class |
Compatibility Considerations
The QSFP-DD-400G-FR4 should be installed only in network equipment that supports compatible 400G QSFP-DD optical modules.
- Compatible Huawei QSFP-DD port
- 400GBASE-FR4 support
- Single-mode fiber cabling
- LC/DLC-compatible optical connection
- Compatible transceiver firmware
- Appropriate network operating system support
Optical compatibility should be verified at both ends of the link. Mixing modules from different vendors may require explicit interoperability support from the network equipment manufacturer.
Benefits
- 400Gbps high-speed connectivity
- 2km single-mode fiber reach
- 400GBASE-FR4 support
- QSFP-DD high-density form factor
- Duplex LC/DLC connectivity
- Four-wavelength optical architecture
- DDM support
- 0°C to 70°C operating temperature
- Suitable for modern data center networks
- Designed for compatible Huawei platforms
Why Buy from Datacom Technologies (BD)?
Datacom Technologies (BD) supplies Huawei optical transceivers, QSFP/QSFP-DD modules, enterprise switches, data center networking equipment and fiber connectivity products in Bangladesh. Customers can receive competitive pricing, technical consultation, compatibility guidance and nationwide delivery.
- Call/WhatsApp: +8801748173213
- Email: sales@datacom.com.bd
- Alternative Email: datacomtechnologiesbd@gmail.com
- Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh
Frequently Asked Questions (FAQ)
Q1: What is the Huawei QSFP-DD-400G-FR4?
The Huawei QSFP-DD-400G-FR4 is a 400Gbps QSFP-DD optical transceiver designed for 400GBASE-FR4 connectivity over single-mode fiber.
Q2: What is the Huawei part number?
The official Huawei part number is 02312NPJ. :contentReference[oaicite:14]{index=14}
Q3: What is the transmission speed?
The module supports a 400Gbps transmission rate. :contentReference[oaicite:15]{index=15}
Q4: What is the maximum transmission distance?
The target transmission distance is up to 2km over compatible G.652 single-mode fiber. :contentReference[oaicite:16]{index=16}
Q5: What connector does the module use?
It uses an LC/DLC optical connector. :contentReference[oaicite:17]{index=17}
Q6: What type of fiber does QSFP-DD-400G-FR4 use?
It uses single-mode fiber (SMF), with Huawei specifying G.652 fiber for the 2km target reach. :contentReference[oaicite:18]{index=18}
Q7: What wavelengths does the module use?
The specified center wavelengths are 1271nm, 1291nm, 1311nm and 1331nm. :contentReference[oaicite:19]{index=19}
Q8: Does the module support DDM?
Yes. Huawei specifies Digital Diagnostic Monitoring support. :contentReference[oaicite:20]{index=20}
Q9: What is the operating temperature?
The specified operating case temperature is 0°C to 70°C. :contentReference[oaicite:21]{index=21}
Q10: Is QSFP-DD-400G-FR4 suitable for data centers?
Yes. The module is designed for high-speed 400G networking and is included by Huawei in its data center networking optical-module portfolio. :contentReference[oaicite:22]{index=22}
Q11: Can QSFP-DD-400G-FR4 work over multimode fiber?
No. Huawei specifies single-mode fiber for this module. The 2km target reach is specified over G.652 SMF.
Q12: Is QSFP-DD-400G-FR4 the same as 400G DR4?
No. FR4 and DR4 use different optical architectures and connector configurations. The Huawei FR4 module uses four wavelengths and an LC/DLC interface.
Q13: Which Huawei switches support this module?
Huawei's official CloudEngine S6700 Series hardware documentation includes QSFP-DD-400G-FR4 in its supported 400GE QSFP-DD optical-module information. Exact compatibility should be checked against the target switch model and software version. :contentReference[oaicite:23]{index=23}
Q14: Is this module suitable for a 2km 400G link?
Yes. Huawei specifies a target transmission distance of 2km over G.652 single-mode fiber. :contentReference[oaicite:24]{index=24}
Q15: Where can I buy Huawei QSFP-DD-400G-FR4 in Bangladesh?
You can contact Datacom Technologies (BD) for Huawei 400G optical transceivers, QSFP-DD modules, data center networking equipment and enterprise fiber connectivity products.
