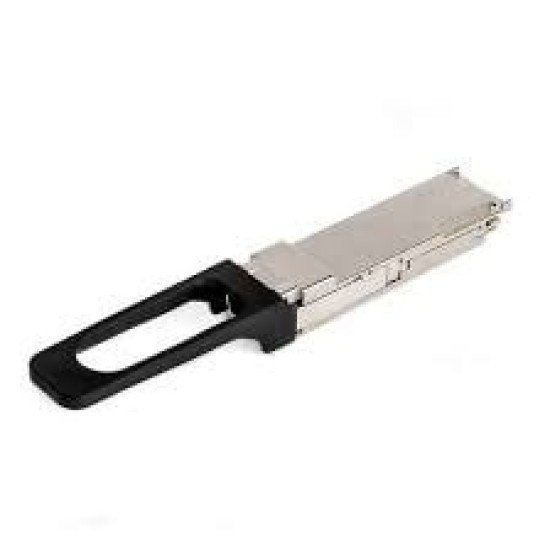

Huawei QSFP56-200G-SR4 Optical Transceiver
Datacom Technologies BD is your trusted source for high-quality networking equipment, including Huawei QSFP56-200G-SR4 Optical Transceivers. We offer competitive prices, reliable products, and excellent customer service. Contact us today to learn more about our product offerings and how we can help you meet your networking needs.
Product Specification
| Parameter |
Value |
| Module name |
QSFP56-200G-SR4 |
| Part Number |
02313FHB |
| Model |
QSFP56-200G-SR4 |
| Form factor |
QSFP56 |
| Application standard/Type |
200GBASE-SR4 |
| Connector type |
MPO |
| Optical interface type |
8x25G |
| Transmitter output power |
3.3±0.5 dBm |
| Receiver sensitivity |
-8.0 dBm |
| Operating temperature |
0 to 70 ℃ |
| Storage temperature |
-40 to 85 ℃ |
| Supply voltage |
3.3V |
| Power consumption |
5.5W |
| Maximum bit error rate (BER) |
≤10^-12 |
| Mean Time Between Failures (MTBF) |
>100000h |
Description
The
Huawei QSFP56-200G-SR4 Optical Transceiver is a high-performance, short-reach optical module designed for data center and high-performance computing applications. It supports a data rate of 200 Gbps over a distance of up to 100 meters using multimode fiber (MMF).
The module is compliant with the 200GBASE-SR4 standard and features a QSFP56 form factor. It has an MPO connector for easy installation and connection. The QSFP56-200G-SR4 transceiver offers excellent performance, low power consumption, and high reliability, making it an ideal choice for data center and HPC environments.
Key features of the Huawei QSFP56-200G-SR4 Optical Transceiver include:
High data rate of 200 Gbps
Short reach of up to 100 meters over MMF
QSFP56 form factor
MPO connector
Low power consumption
High reliability
Supported/Comparable Models
Cisco QSFP-DD200G-SR4
Juniper QSFP-DD200G-SR4
Arista QSFP-DD200G-SR4
