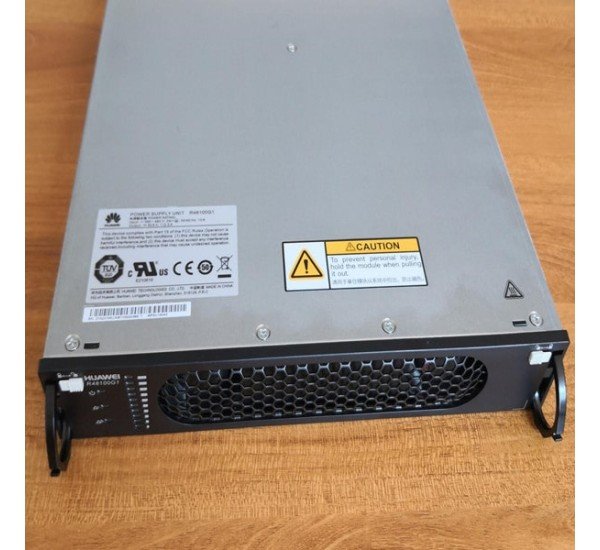

Huawei R48100G1 6000W Rectifier Module
Specification
| Feature |
Specification |
| Input Voltage |
260 to 530 Vac |
| Output Voltage |
43.2 to 58 Vdc (adjustable), 53.5 Vdc (rated) |
| Output Power |
6000 W |
| Efficiency |
> 96% (maximum) |
| Cooling |
Forced air cooling (built-in fan) |
| Dimensions |
238 mm (W) x 378 mm (D) x 43 mm (H) |
| Weight |
≤ 6.0 kg |
| Operating Temperature |
-40°C to +75°C (with derating above 45°C) |
| Certifications |
TUV, CE, UL, CB |
Description
The Huawei R48100G1 is a high-efficiency, digitally controlled rectifier module designed for use in communication power systems. It converts a three-phase AC input voltage (260-530 Vac) to a regulated DC output voltage (43.2-58 Vdc), with a maximum output power of 6000W.
Key Features and Benefits:
High Efficiency: With a peak efficiency exceeding 96%, the R48100G1 minimizes power losses and contributes to energy savings.
Wide Input Voltage Range: The ability to operate across a broad input voltage range makes it suitable for various power grid conditions.
Digital Control: Digital control technology enables precise voltage regulation, current sharing, and comprehensive monitoring capabilities.
Hot-Swappable: The hot-swap functionality allows for easy maintenance and replacement without interrupting the system's operation.
Comprehensive Protection: The module incorporates multiple protection features, including overvoltage, undervoltage, overcurrent, short circuit, and overtemperature protection, ensuring safe and reliable operation.
Compact Design: The compact form factor allows for flexible installation and integration into various power systems.
Communication Capabilities: The R48100G1 supports CAN communication, enabling seamless integration with monitoring and control systems.
Applications:
The Huawei R48100G1 is ideal for various applications, including:
Telecom Power Systems: It can be used in central offices, data centers, and other telecom infrastructure.
Data Centers: The high power density and efficiency make it suitable for powering servers and other IT equipment.
Industrial Power Supplies: It can be employed in industrial settings requiring reliable and efficient DC power.
Get in Touch with Datacom Technologies (BD)
? Call/WhatsApp: 01748173213
✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Huawei R48100G1 6000W Rectifier Module in Bangladesh?
The latest price of Huawei R48100G1 6000W Rectifier Module in Bangladesh starts from
BDT-210,000/= to BDT-275,000/= (Estimated) depending on quantity and warranty. To order your Huawei Rectifier Module, please contact us by call or WhatsApp (+8801748173213). You can also browse our online shop "Datacom Technologies (BD)" and order your Huawei Rectifier directly.
