Huawei 750W Server Power Supply For RH1288 RH2288 V2 V3

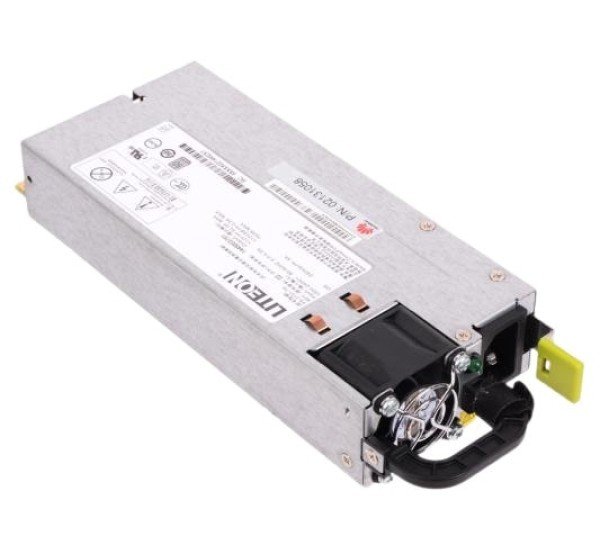

The Huawei 750W Server Power Supply is a high-efficiency, hot-swappable module designed for RH1288 and RH2288 V2/V3 servers. It operates within a 100-240V AC input range, delivering up to 94% efficiency at Platinum level. With a compact form factor and redundant capability, it ensures reliable and stable power for enterprise server environments.
Huawei 02131058 Server PSU Specification
| Specification |
Details |
| Power Output |
750 Watts |
| Input Voltage Range |
100-240V AC |
| Frequency Range |
50/60 Hz |
| Efficiency |
Up to 94% (Platinum level) |
| Form Factor |
Hot-swappable, redundant power supply module |
| Dimensions (WxHxD) |
Approximately 54.5 x 40 x 228 mm |
| Weight |
Approximately 1.2 kg |
| Operating Temperature |
0°C to 45°C |
| Storage Temperature |
-40°C to 70°C |
| Humidity |
5% to 95% non-condensing |
| Cooling |
Integrated fan with automatic speed control |
| Safety Certifications |
CE, UL, FCC, CCC |
Huawei 02131058 PSU Description
The
Huawei 02131058 750W Server Power Supply is engineered to meet the demanding requirements of modern data centers and enterprise environments. Its 750-watt power output ensures ample energy delivery to support high-performance computing tasks, making it suitable for servers handling intensive workloads. One of the standout features of this power supply is its high efficiency, achieving up to 94% efficiency at typical loads, which corresponds to the 80 PLUS Platinum certification. This high-efficiency rating not only reduces energy consumption but also minimizes heat generation, contributing to lower operational costs and enhanced system reliability. Designed with versatility in mind, the power supply operates within a wide input voltage range of 100 to 240V AC and supports both 50 and 60 Hz frequency ranges. This flexibility allows it to be deployed in various geographical regions without compatibility concerns. The hot-swappable and redundant design of the power supply module ensures that maintenance or replacement can be performed without interrupting server operations. This feature is crucial for maintaining continuous uptime in mission-critical applications. In terms of physical dimensions, the power supply is compact, measuring approximately 54.5 x 40 x 228 mm, and weighs around 1.2 kg. Its integrated fan with automatic speed control provides efficient cooling, adjusting to the server's thermal requirements to maintain optimal operating temperatures. The power supply is built to operate within a temperature range of 0°C to 45°C and can be stored in environments ranging from -40°C to 70°C. It also supports a humidity range of 5% to 95% non-condensing, ensuring reliable performance in diverse environmental conditions. Safety is a paramount consideration in the design of this power supply. It comes equipped with multiple protection features, including Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Current Protection (OCP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP). These safeguards protect both the power supply and the connected server components from potential electrical faults.
The Huawei 750W Server PSU is compatible with the following server models:
- Huawei RH1288 V2
- Huawei RH1288 V3
- Huawei RH2288 V2
- Huawei RH2288 V3
