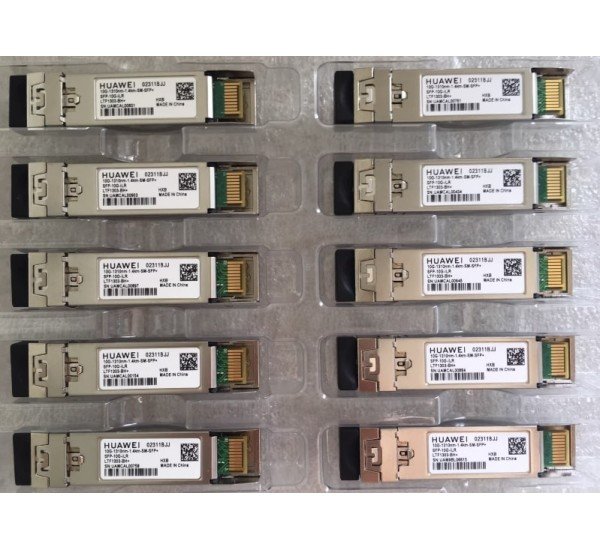

About Huawei SFP-10G-iLR 10GBASE-iLR Optical Transceiver in Bangladesh
The Huawei SFP-10G-iLR is a 10Gbps SFP+ optical transceiver designed for single-mode fiber networking. Part number 02311BJJ, this Huawei optical module operates at 1310nm and supports transmission distances of up to 1.4km over compatible single-mode fiber.
Huawei officially identifies the SFP-10G-iLR as an SFP+ module using the non-standard 10GBASE-iLR application standard. It features an LC connector, supports Digital Diagnostic Monitoring (DDM), and is rated for an industrial operating temperature range of -40°C to +85°C. :contentReference[oaicite:0]{index=0}
Huawei SFP-10G-iLR 02311BJJ Specifications & Features
| Specification | Details |
|---|
| Brand | Huawei |
| Model | SFP-10G-iLR |
| Part Number | 02311BJJ |
| Product Type | 10G SFP+ Optical Transceiver |
| Application Standard | 10GBASE-iLR (Non-Standard) |
| Data Rate | 10Gbps |
| Form Factor | SFP+ |
| Wavelength | 1310nm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Maximum Reach | Up to 1.4km |
| Connector | LC |
| DDM | Supported |
| Operating Temperature | -40°C to 85°C |
| Maximum Tx Power | +0.5dBm |
| Minimum Tx Power | -8.2dBm |
| Rx Sensitivity | -14.4dBm |
| Overload Power | +0.5dBm |
| Minimum Extinction Ratio | 3.5dB |
Overview
The Huawei SFP-10G-iLR 02311BJJ provides reliable 10Gbps optical connectivity for single-mode fiber links where a reach of up to 1.4km is required. Its compact SFP+ form factor makes it suitable for compatible Huawei switches, routers and other network platforms supporting this optical specification.
Huawei's current hardware documentation confirms the module's 10Gbps data rate, 1310nm center wavelength, LC interface, SMF support, 1.4km target distance and DDM capability. :contentReference[oaicite:1]{index=1}
Buy Huawei SFP-10G-iLR 02311BJJ in Bangladesh
Purchase the genuine Huawei SFP-10G-iLR 10GBASE-iLR Optical Transceiver Module from Datacom Technologies (BD). We supply Huawei SFP/SFP+ optical modules, enterprise networking equipment, fiber optic transceivers and data center connectivity products throughout Bangladesh.
Key Features
- 10Gbps high-speed optical connectivity
- Huawei part number 02311BJJ
- SFP+ form factor
- 10GBASE-iLR application standard
- 1310nm optical wavelength
- Single-mode fiber support
- Up to 1.4km transmission distance
- LC optical connector
- Digital Diagnostic Monitoring (DDM)
- -40°C to 85°C industrial temperature range
- Suitable for Huawei networking equipment
- Designed for enterprise and carrier networking
10GBASE-iLR Optical Technology
The SFP-10G-iLR uses Huawei's 10GBASE-iLR optical application standard. Huawei explicitly classifies this standard as non-standard, distinguishing it from conventional IEEE 10GBASE-LR optics. :contentReference[oaicite:2]{index=2}
This distinction is important when selecting a replacement or third-party transceiver. The host equipment and the far-end optical module should both be verified for compatibility before deployment.
1310nm Single-Mode Fiber
The module operates at a 1310nm center wavelength and is designed for single-mode fiber. This optical configuration provides reliable connectivity for short-to-medium-distance 10GbE network links.
Huawei specifies a target transmission distance of 1.4km over single-mode optical fiber. :contentReference[oaicite:3]{index=3}
1.4km Transmission Distance
The SFP-10G-iLR is designed for optical links of up to 1.4km. It can be useful for campus networks, enterprise buildings, data center interconnections and network aggregation where conventional short-range multimode optics are insufficient.
Actual link distance depends on fiber attenuation, connector losses, splice losses and the total optical power budget.
Optical Power Specifications
Huawei specifies a transmitter optical-power range of -8.2dBm to +0.5dBm, receiver sensitivity of -14.4dBm and receiver overload power of +0.5dBm. :contentReference[oaicite:4]{index=4}
These specifications should be considered when calculating the optical power budget of the complete link.
Digital Diagnostic Monitoring
The Huawei SFP-10G-iLR supports DDM, allowing compatible Huawei equipment to monitor optical-module operating information.
Diagnostic information can assist network administrators with troubleshooting and monitoring transceiver health, depending on the capabilities of the host platform.
Industrial Temperature Range
The SFP-10G-iLR is specified for an industrial operating temperature range of -40°C to 85°C. This makes it suitable for networking environments with wider temperature variations than standard commercial-temperature modules. :contentReference[oaicite:5]{index=5}
LC Optical Connector
The module uses an LC optical interface and is designed for single-mode fiber connectivity. LC connectors are widely deployed in enterprise, telecom and data center fiber infrastructure.
Always inspect and clean optical connectors before installation to maintain reliable 10Gbps optical performance.
Huawei Network Applications
- 10GbE switch uplinks
- Enterprise network aggregation
- Campus fiber networks
- Data center connectivity
- Building-to-building links
- Server-to-switch connectivity
- Core-to-distribution links
- Carrier and telecom networks
- Network backbone connections
- Huawei switch optical interfaces
SFP-10G-iLR vs SFP-10G-LR
| Feature |
SFP-10G-iLR |
SFP-10G-LR |
| Speed |
10Gbps |
10Gbps |
| Wavelength |
1310nm |
1310nm |
| Fiber |
Single-Mode |
Single-Mode |
| Reach |
Up to 1.4km |
Typically up to 10km |
| Connector |
LC |
LC |
| Standard |
10GBASE-iLR (non-standard) |
10GBASE-LR |
| Temperature |
-40°C to 85°C |
Depends on module variant |
The SFP-10G-iLR should not be treated as a conventional 10GBASE-LR module simply because both operate around 1310nm. Huawei explicitly identifies 10GBASE-iLR as a non-standard application and specifies a 1.4km target distance. :contentReference[oaicite:6]{index=6}
Compatibility
The SFP-10G-iLR is a Huawei-specific optical module. Huawei documentation identifies part number 02311BJJ and provides platform-specific compatibility requirements. Some Huawei documentation notes that the module requires supported software/firmware versions on certain switch platforms. :contentReference[oaicite:7]{index=7}
For example, Huawei documentation for certain switch families notes support from specific software versions onward. Therefore, verify the exact Huawei switch, router or line-card model and software version before purchasing.
Installation Considerations
- Use compatible single-mode fiber.
- Use LC optical connectors.
- Verify the target Huawei platform supports SFP-10G-iLR.
- Check the host software/firmware compatibility.
- Verify the optical power budget for the complete link.
- Clean LC connectors before installation.
- Confirm DDM support on the host if optical diagnostics are required.
Benefits
- 10Gbps optical networking
- 1310nm single-mode operation
- Up to 1.4km reach
- LC connectivity
- DDM support
- Industrial -40°C to 85°C temperature range
- Compact SFP+ form factor
- Huawei OEM optical module
- Suitable for enterprise and carrier networks
- Suitable for Huawei switching platforms
Why Buy from Datacom Technologies (BD)?
Datacom Technologies (BD) supplies Huawei optical transceivers, SFP/SFP+ modules, enterprise switches, routers, fiber networking products and data center connectivity solutions in Bangladesh. Customers can receive competitive pricing, technical consultation, product compatibility guidance and nationwide delivery.
- Call/WhatsApp: +8801748173213
- Email: sales@datacomtechbd.com
- Alternative Email: datacomtechnologiesbd@gmail.com
- Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh
Frequently Asked Questions (FAQ)
Q1: What is Huawei SFP-10G-iLR?
Huawei SFP-10G-iLR is a 10Gbps SFP+ optical transceiver using the 10GBASE-iLR non-standard optical application.
Q2: What is the Huawei part number?
The Huawei part number is 02311BJJ.
Q3: What wavelength does it use?
It operates at a center wavelength of 1310nm.
Q4: What is the maximum transmission distance?
Huawei specifies a target transmission distance of up to 1.4km over single-mode optical fiber.
Q5: What type of fiber does it require?
It is designed for Single-Mode Fiber (SMF).
Q6: What connector does it use?
The module uses an LC optical connector.
Q7: Does it support DDM?
Yes. Huawei specifies DDM support for the SFP-10G-iLR.
Q8: What is the operating temperature?
The specified working-case temperature range is -40°C to 85°C.
Q9: Is SFP-10G-iLR the same as 10GBASE-LR?
No. Huawei identifies 10GBASE-iLR as a non-standard application and specifies a 1.4km target distance, whereas standard 10GBASE-LR is normally designed for much longer SMF links.
Q10: Can it be used in any SFP+ switch?
Not necessarily. Huawei's documentation identifies platform and software-version requirements for this module on certain equipment. Always verify compatibility with the exact host device.
Q11: What is the transmitter power range?
Huawei specifies a minimum transmit power of -8.2dBm and maximum transmit power of +0.5dBm.
Q12: Where can I buy Huawei SFP-10G-iLR 02311BJJ in Bangladesh?
You can contact Datacom Technologies (BD) for genuine Huawei SFP-10G-iLR optical transceivers, SFP+ modules and enterprise fiber networking solutions with nationwide delivery.
