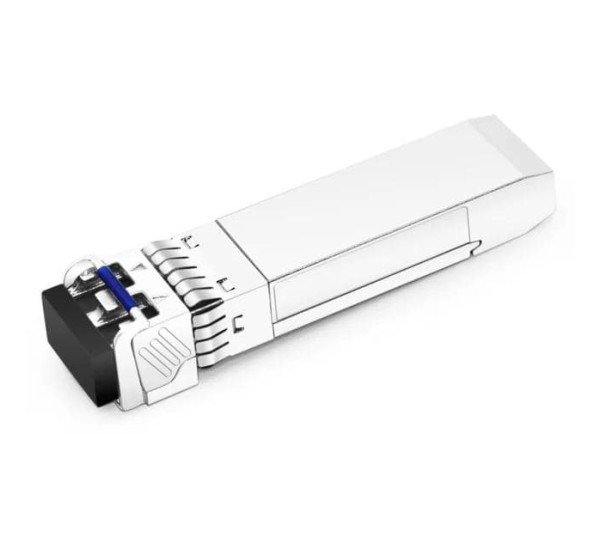

About Huawei SFP-10G-LR 10km SFP+ Optical Transceiver Module in Bangladesh
The Huawei SFP-10G-LR is a 10Gbps SFP+ optical transceiver designed for high-speed Ethernet networking over single-mode fiber. It follows the 10GBASE-LR standard and uses a 1310nm optical wavelength to provide transmission distances of up to 10km over compatible G.652 single-mode fiber.
Huawei's official product information identifies the SFP-10G-LR as an SFP+ 10G single-mode optical module with 1310nm wavelength, 10km reach and LC/DLC connector. Digital Diagnostic Monitoring (DDM) is supported. :contentReference[oaicite:2]{index=2}
Huawei SFP-10G-LR 10km SFP+ Module Specifications & Features
| Specification | Details |
|---|
| Brand | Huawei |
| Model | SFP-10G-LR |
| Part Number | 02313URL |
| Form Factor | SFP+ |
| Application Standard | 10GBASE-LR |
| Data Rate | 10Gbps |
| Wavelength | 1310nm |
| Transmission Distance | Up to 10km |
| Optical Fiber | Single-Mode Fiber (SMF) |
| Fiber Standard | G.652 |
| Connector | LC/DLC |
| DDM | Supported |
| Operating Temperature | 0°C to 70°C |
Overview
The Huawei SFP-10G-LR is a long-reach 10Gbps SFP+ optical module designed for high-speed network connections over single-mode fiber. With a 1310nm optical wavelength and 10km target transmission distance, it is suitable for connecting network switches, routers and other compatible 10GbE equipment across campus, enterprise and data center environments.
The module follows the 10GBASE-LR application standard and uses an LC/DLC optical connector. Huawei specifies G.652 single-mode fiber with a 9μm diameter for the 10km target transmission distance. :contentReference[oaicite:3]{index=3}
Buy Huawei SFP-10G-LR 10km SFP+ Module in Bangladesh
Purchase the Huawei SFP-10G-LR 10km SFP+ Optical Transceiver Module from Datacom Technologies (BD). We supply Huawei networking equipment, optical transceivers, switches, routers and data center connectivity products in Bangladesh with competitive pricing, technical support and nationwide delivery.
Key Features
- 10Gbps SFP+ optical transceiver
- 10GBASE-LR application standard
- 1310nm optical wavelength
- Up to 10km transmission distance
- Single-Mode Fiber (SMF) support
- G.652 fiber compatibility
- LC/DLC connector
- Digital Diagnostic Monitoring (DDM) supported
- Standard SFP+ form factor
- Suitable for compatible Huawei networking equipment
- Ideal for enterprise, campus and data center connectivity
Applications
- Huawei Ethernet Switches
- Huawei Routers
- Data Center Networks
- Enterprise Networks
- Campus Networks
- Server-to-Switch Connectivity
- Switch-to-Switch Links
- High-Speed Backbone Connections
- Inter-Building Fiber Links
- 10GbE Network Infrastructure
10Gbps High-Speed Networking
The Huawei SFP-10G-LR provides a 10Gbps optical networking interface in the compact SFP+ form factor. It is designed for high-bandwidth Ethernet links where copper connectivity is not suitable for the required distance or network architecture.
The 10Gbps data rate makes the module suitable for modern enterprise networks, data centers, aggregation links and high-speed switch-to-switch connections.
10GBASE-LR Standard
The SFP-10G-LR uses the 10GBASE-LR application standard. LR stands for Long Reach and is intended for 10 Gigabit Ethernet transmission over single-mode fiber.
Huawei specifies a target transmission distance of up to 10km using G.652 single-mode fiber. :contentReference[oaicite:4]{index=4}
1310nm Optical Wavelength
The Huawei SFP-10G-LR operates at a 1310nm center wavelength. Huawei's official specification identifies 1310nm as the center wavelength for this module. :contentReference[oaicite:5]{index=5}
1310nm single-mode optics are widely used for long-distance Ethernet fiber links because they provide suitable transmission characteristics over standard single-mode fiber.
10km Transmission Distance
The SFP-10G-LR is designed for transmission distances of up to 10km over compatible single-mode fiber.
Huawei specifies G.652 single-mode fiber with a 9μm diameter for the 10km target distance. Actual achievable distance depends on fiber quality, connector loss, splice loss, optical budget and network conditions. :contentReference[oaicite:6]{index=6}
Single-Mode Fiber Support
The module is designed for Single-Mode Fiber (SMF). It is therefore intended for longer-distance fiber links rather than the short-distance multimode applications typically associated with SR optics.
Use compatible single-mode fiber and LC-based fiber connectivity when deploying the module.
LC/DLC Connector
The Huawei SFP-10G-LR uses an LC/DLC optical connector interface. Huawei's official product specification lists LC/DLC as the connector type. :contentReference[oaicite:7]{index=7}
Ensure that the installed fiber patch cable and network patching infrastructure use the appropriate LC connector configuration.
Digital Diagnostic Monitoring
The SFP-10G-LR supports Digital Diagnostic Monitoring (DDM). DDM can provide supported network equipment with information about optical-module operating conditions and help administrators monitor transceiver health.
Availability and presentation of individual diagnostic parameters depend on the host networking device and its software support. Huawei officially lists DDM as supported for this module. :contentReference[oaicite:8]{index=8}
Operating Temperature
The standard Huawei SFP-10G-LR is specified for a working case temperature range of 0°C to 70°C. :contentReference[oaicite:9]{index=9}
For installations in extended-temperature environments, verify whether the application requires a different Huawei variant such as the industrial-temperature SFP-10G-LR-I, which Huawei specifies for -40°C to +85°C operation. :contentReference[oaicite:10]{index=10}
Data Center Connectivity
The Huawei SFP-10G-LR is suitable for high-speed data center connectivity where 10GbE links must span distances beyond typical short-range multimode applications.
It can be used for compatible switch-to-switch, server-to-switch, aggregation and backbone connections over single-mode fiber.
Enterprise Network Connectivity
Enterprise networks can use the SFP-10G-LR to extend 10GbE connectivity between network devices located in different rooms, floors or buildings, subject to the fiber infrastructure and optical link budget.
The 10km target reach provides considerably more distance than typical short-range 10G optical modules.
Huawei Network Equipment
The SFP-10G-LR is a Huawei optical module intended for compatible Huawei networking equipment. Before installation, verify that the target switch, router or other network device supports the specific SFP-10G-LR part number and optical-module requirements.
Huawei's official product page identifies the module as part number 02313URL. :contentReference[oaicite:11]{index=11}
SFP+ Form Factor
The SFP-10G-LR uses the compact SFP+ form factor. SFP+ allows network equipment manufacturers to provide high-speed 10GbE optical connectivity using a standardized, field-replaceable transceiver format.
This modular design allows compatible switches and routers to be configured for different optical distances and fiber types according to network requirements.
Huawei SFP-10G-LR vs 10GBASE-SR
| Feature |
Huawei SFP-10G-LR |
Typical 10GBASE-SR Module |
| Form Factor |
SFP+ |
SFP+ |
| Data Rate |
10Gbps |
10Gbps |
| Standard |
10GBASE-LR |
10GBASE-SR |
| Wavelength |
1310nm |
850nm |
| Fiber Type |
Single-Mode Fiber |
Multimode Fiber |
| Target Reach |
Up to 10km |
Typically short-range |
| Typical Use |
Longer-distance 10GbE links |
Short-distance data center links |
Compatibility Considerations
The SFP-10G-LR should be installed only in networking equipment that supports the appropriate SFP+ optical transceiver specification.
- Compatible Huawei SFP+ port
- 10GBASE-LR support
- Single-mode fiber infrastructure
- LC-compatible fiber connectors
- Suitable 1310nm optical link
- Compatible transceiver firmware/coding where applicable
- Appropriate optical power budget
Do not confuse the SFP-10G-LR with Huawei SFP-10G-LR-I or other LR variants. Huawei lists separate part numbers and temperature specifications for these products. :contentReference[oaicite:12]{index=12}
Benefits
- 10Gbps high-speed Ethernet connectivity
- 10GBASE-LR standard
- 1310nm single-mode optical transmission
- Up to 10km target reach
- Compact SFP+ form factor
- LC/DLC connector
- DDM support
- Suitable for enterprise networks
- Suitable for campus and data center networks
- Ideal for longer-distance 10GbE links
Why Buy from Datacom Technologies (BD)?
Datacom Technologies (BD) supplies Huawei optical transceivers, SFP/SFP+ modules, switches, routers and enterprise networking equipment in Bangladesh. Customers can receive competitive pricing, technical consultation, compatibility guidance and nationwide delivery.
- Call/WhatsApp: +8801748173213
- Email: sales@datacom.com.bd
- Alternative Email: datacomtechnologiesbd@gmail.com
- Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh
Frequently Asked Questions (FAQ)
Q1: What is the Huawei SFP-10G-LR?
The Huawei SFP-10G-LR is a 10Gbps SFP+ optical transceiver designed for 10GBASE-LR Ethernet transmission over single-mode fiber.
Q2: What is the transmission distance?
The target transmission distance is up to 10km over compatible G.652 single-mode fiber. :contentReference[oaicite:13]{index=13}
Q3: What wavelength does SFP-10G-LR use?
The module uses a 1310nm center wavelength. :contentReference[oaicite:14]{index=14}
Q4: What fiber type does it support?
It is designed for Single-Mode Fiber (SMF), with Huawei specifying G.652 fiber for the 10km target distance. :contentReference[oaicite:15]{index=15}
Q5: What connector does SFP-10G-LR use?
Huawei specifies an LC/DLC connector. :contentReference[oaicite:16]{index=16}
Q6: Does SFP-10G-LR support DDM?
Yes. Huawei specifies Digital Diagnostic Monitoring (DDM) support. :contentReference[oaicite:17]{index=17}
Q7: What is the operating temperature?
The standard SFP-10G-LR is specified for 0°C to 70°C working case temperature. :contentReference[oaicite:18]{index=18}
Q8: Is SFP-10G-LR a multimode module?
No. It is designed for single-mode fiber and 10GBASE-LR transmission.
Q9: Is SFP-10G-LR suitable for 10GbE?
Yes. It uses the 10GBASE-LR application standard and provides a 10Gbps transmission rate. :contentReference[oaicite:19]{index=19}
Q10: What is the Huawei part number?
Huawei's current official listing identifies SFP-10G-LR part number 02313URL. :contentReference[oaicite:20]{index=20}
Q11: Can SFP-10G-LR be used for switch-to-switch links?
Yes, provided both network devices support compatible 10GBASE-LR SFP+ optics and the fiber infrastructure meets the required optical specifications.
Q12: What is the difference between SFP-10G-LR and SFP-10G-LR-I?
Both are 10GBASE-LR, 1310nm, 10km single-mode modules, but Huawei specifies the standard SFP-10G-LR for 0°C to 70°C while the SFP-10G-LR-I is designed for a wider -40°C to +85°C working case temperature range. :contentReference[oaicite:21]{index=21}
Q13: Is SFP-10G-LR compatible with all SFP+ ports?
Not necessarily. Compatibility depends on the host device, supported transceiver coding, optical standards and vendor requirements. Always verify the target equipment before installation.
Q14: Where can I buy Huawei SFP-10G-LR in Bangladesh?
You can contact Datacom Technologies (BD) for Huawei SFP/SFP+ modules, optical transceivers, switches, routers and enterprise networking equipment with competitive pricing and nationwide delivery.
