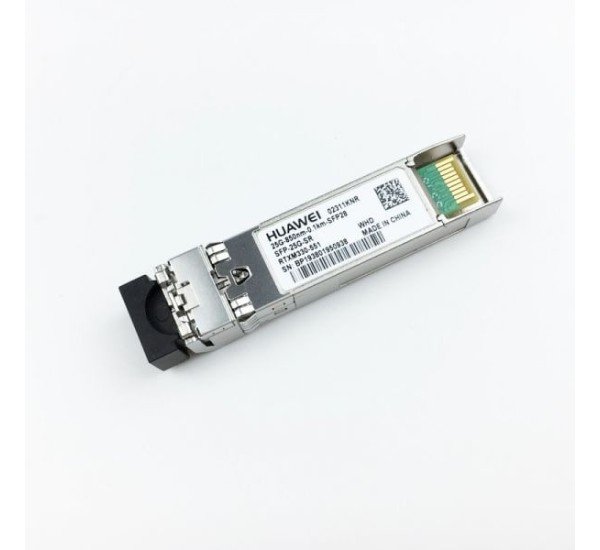

Huawei SFP-25G/10G-SR 02313FCC Optical Modules

About Huawei SFP-25G/10G-SR 02313FCC Optical Module in Bangladesh

The Huawei SFP-25G/10G-SR 02313FCC is a multi-rate SFP28 optical transceiver designed for high-speed Ethernet connectivity in enterprise networks and data center environments. It supports both 10Gbps and 25Gbps transmission and uses a short-range 850nm multimode optical interface with an LC connector.

The module uses the SFP28 form factor and is designed for 25GBASE-SR applications. Huawei documentation and current product references identify 02313FCC as a 10G/25G multi-rate multimode optical transceiver with an LC interface and 850nm wavelength. :contentReference[oaicite:2]{index=2}

Huawei SFP-25G/10G-SR 02313FCC Specifications & Features

Overview

The Huawei 02313FCC provides a flexible optical connectivity solution for networks requiring either 10GbE or 25GbE connectivity. Its multi-rate capability allows the same optical module to operate at supported 10G and 25G speeds, helping organizations deploy higher-bandwidth connectivity while maintaining flexibility.

The SFP28 form factor is well suited to high-density network switches and data center equipment where compact optical interfaces are required.

Buy Huawei SFP-25G/10G-SR 02313FCC in Bangladesh

Purchase the Huawei SFP-25G/10G-SR 02313FCC Optical Transceiver from Datacom Technologies (BD). We supply Huawei optical modules, SFP/SFP28 transceivers, network switches, routers and data center networking equipment in Bangladesh with competitive pricing, technical consultation and nationwide delivery.

Key Features

• 25GbE SFP28 optical transceiver
• Supports 10G and 25G transmission
• 25GBASE-SR application
• 850nm optical wavelength
• LC Duplex connector
• Multimode Fiber (MMF) support
• DDM support
• 0°C to 70°C operating temperature
• Compact SFP28 form factor
• Designed for short-distance data center connectivity
• Suitable for supported Huawei networking equipment

Applications

• Huawei Data Center Switches
• Huawei CloudEngine Switches
• Enterprise Network Switches
• 25GbE Server Connectivity
• Data Center ToR Networking
• High-Speed Ethernet Uplinks
• Switch-to-Switch Connectivity
• Multimode Fiber Infrastructure
• 10GbE Network Upgrades
• 25GbE Network Deployments

25GbE High-Speed Connectivity

The 02313FCC is designed for 25GbE short-range optical networking. Its SFP28 interface provides a compact solution for high-density 25GbE switch ports and server-facing network connections.

At 25GbE, the module is designed for multimode fiber connections. The achievable distance depends on the fiber grade, network configuration and whether Forward Error Correction (FEC) is enabled.

10G / 25G Multi-Rate Operation

One of the main advantages of the Huawei SFP-25G/10G-SR is its multi-rate capability. The module supports both 10G and 25G transmission, allowing it to be deployed in supported environments operating at either speed. :contentReference[oaicite:3]{index=3}

This flexibility can be useful when migrating from 10GbE to 25GbE networking without replacing every optical module at the same time.

850nm Multimode Optics

The 02313FCC operates at a center wavelength of 850nm and uses multimode fiber. The short-reach SR design is intended for data center and enterprise environments where switches and servers are interconnected over relatively short optical distances.

Compatible OM3 and OM4 multimode fiber should be used according to the required transmission speed and distance.

LC Duplex Connector

The Huawei SFP-25G/10G-SR uses an LC Duplex optical connector. LC connectors provide separate transmit and receive optical paths in a compact duplex interface.

The LC interface makes the module suitable for standard duplex multimode fiber patch cables commonly used in data center structured cabling.

Transmission Distance

At 25GbE, the documented reach depends on FEC and multimode fiber type. With OM4 fiber, the module can reach up to 100 meters when FEC is enabled. Without FEC, the documented OM4 reach is 40 meters. For 10GbE operation, the documented OM4 reach is up to 100 meters. :contentReference[oaicite:4]{index=4}

Digital Diagnostic Monitoring

The 02313FCC supports Digital Diagnostic Monitoring (DDM). DDM provides optical module diagnostic information that can assist network administrators with monitoring module operating conditions and troubleshooting optical links.

Depending on the Huawei platform, available diagnostic information can include optical parameters and module status.

Data Center Networking

The compact SFP28 form factor and short-range multimode optics make the 02313FCC suitable for high-density data center environments.

Typical applications include server-to-switch connections, Top-of-Rack (ToR) networking, switch-to-switch connections and short-distance high-speed Ethernet links.

Huawei Network Device Compatibility

Current product information identifies the 02313FCC for use with supported Huawei networking platforms. Listed compatible families include CloudEngine 9800, 8800, 6800 and 5800 Series switches, as well as selected NetEngine AR5700, AR6700 and AR8000 Series platforms. :contentReference[oaicite:5]{index=5}

A procurement specification also identifies PN 02313FCC as a Huawei 10/25GbE multi-rate SFP optical transceiver for CloudEngine networking environments. :contentReference[oaicite:6]{index=6}

Exact compatibility should always be verified against the target Huawei switch or router model and its software/firmware version before installation.

10GbE Network Upgrade

Because the 02313FCC supports both 10G and 25G, it can be useful in staged network upgrades. Organizations can deploy compatible modules in existing 10GbE environments and transition supported ports to 25GbE as network infrastructure is upgraded.

25GbE Server Connectivity

25GbE is widely used for modern server and data center connectivity where higher bandwidth is required without moving directly to 100GbE. The Huawei SFP-25G/10G-SR provides a compact optical interface for supported 25GbE server-facing ports.

Huawei SFP-25G/10G-SR vs 25G LR

Compatibility Considerations

The 02313FCC is a multimode SR optical module and should not be substituted directly for a single-mode LR module.

• Verify the target device supports SFP28
• Verify 10G/25G multi-rate support where required
• Use compatible MMF cabling
• Use LC Duplex connectors
• Confirm the required transmission distance
• Check Huawei device and software compatibility
• Verify FEC requirements for 25GbE links

Benefits

• 10G/25G multi-rate capability
• 25GBASE-SR optical connectivity
• SFP28 compact form factor
• 850nm multimode optics
• LC Duplex connector
• DDM support
• Up to 100m over OM4 at 25G with FEC
• Suitable for high-density data centers
• Useful for 10GbE-to-25GbE network migration
• Designed for supported Huawei networking platforms

Why Buy from Datacom Technologies (BD)?

Datacom Technologies (BD) supplies Huawei optical transceivers, SFP/SFP28 modules, Ethernet switches, routers and data center networking equipment in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.

• Call/WhatsApp: +8801748173213
• Email: sales@datacom.com.bd
• Alternative Email: datacomtechnologiesbd@gmail.com
• Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh

Frequently Asked Questions (FAQ)

Q1: What is the Huawei SFP-25G/10G-SR 02313FCC?
The Huawei 02313FCC is an SFP28 optical transceiver designed for 25GBASE-SR and supporting 10G/25G transmission.

Q2: What is the part number?
The Huawei part number is 02313FCC.

Q3: What form factor does it use?
It uses the SFP28 form factor.

Q4: Does it support 10GbE?
Yes. The 02313FCC is a multi-rate module supporting 10G and 25G operation on compatible platforms. :contentReference[oaicite:7]{index=7}

Q5: What wavelength does it use?
The module uses an 850nm optical wavelength.

Q6: What type of fiber does it require?
It uses multimode fiber (MMF).

Q7: What connector does it use?
The module uses an LC Duplex connector.

Q8: What is the maximum transmission distance?
At 25G with FEC enabled, the documented maximum distance is 70m over OM3 and 100m over OM4. At 10G, the documented OM4 distance is 100m. :contentReference[oaicite:8]{index=8}

Q9: Does 02313FCC support DDM?
Yes. Digital Diagnostic Monitoring is supported. :contentReference[oaicite:9]{index=9}

Q10: What is the operating temperature?
The specified operating case temperature is 0°C to 70°C.

Q11: Can 02313FCC be used with single-mode fiber?
No. It is an SR multimode module designed for MMF. A suitable LR or other single-mode optical module should be selected for SMF deployments.

Q12: Which Huawei devices support the module?
Listed platforms include supported CloudEngine 9800, 8800, 6800 and 5800 Series switches and selected NetEngine AR series devices. Exact compatibility should be checked against the target equipment. :contentReference[oaicite:10]{index=10}

Q13: Is 02313FCC suitable for data centers?
Yes. Its SFP28 form factor, short-range multimode optics and 10G/25G capability make it suitable for supported data center and enterprise network applications.
