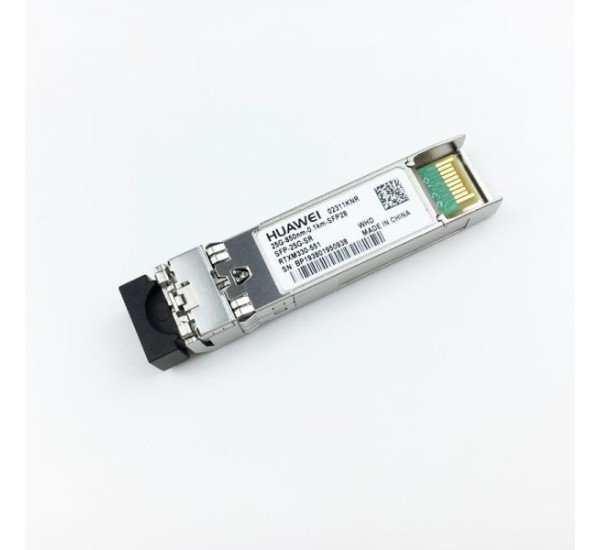

About Huawei SFP-25G-SR 25GBASE-SR SFP28 850nm Optical Transceiver in Bangladesh
The Huawei SFP-25G-SR is a 25Gbps SFP28 optical transceiver designed for high-speed short-range network connectivity over multimode fiber. It supports the 25GBASE-SR standard and uses an 850nm optical wavelength with an LC connector.
Huawei identifies the SFP-25G-SR with part number 02311KNR. The module uses an SFP28 form factor, supports 25Gbit/s transmission and is designed for multimode fiber (MMF) connections. :contentReference[oaicite:1]{index=1}
The module is suitable for high-bandwidth data-center networks, enterprise switching environments, server-to-switch connections and other short-distance 25GbE applications.
Huawei SFP-25G-SR Optical Module Specifications & Features
| Specification | Details |
|---|
| Brand | Huawei |
| Module Name | SFP-25G-SR |
| Part Number | 02311KNR |
| Form Factor | SFP28 |
| Application Standard | 25GBASE-SR |
| Data Rate | 25Gbps |
| Connector Type | LC |
| Optical Fiber Type | Multimode Fiber (MMF) |
| Wavelength | 850nm |
| Operating Temperature | 0°C to 70°C |
| DDM | Supported |
| Maximum Reach | 70m OM3 / 100m OM4 with RS-FEC |
Overview
The Huawei SFP-25G-SR is a short-range 25GbE optical transceiver for network equipment with SFP28 ports. It is designed to provide high-speed connectivity across multimode optical fiber in data-center and enterprise networking environments.
Huawei's official specifications list the module as an SFP28 optical module with 25GBASE-SR support, LC connectivity, MMF fiber and an 850nm center wavelength. :contentReference[oaicite:2]{index=2}
Buy Huawei SFP-25G-SR Optical Module in Bangladesh
Purchase the Huawei SFP-25G-SR 25GBASE-SR SFP28 Optical Transceiver from Datacom Technologies (BD). We supply Huawei optical modules, SFP/SFP28 transceivers, network switches, data-center connectivity equipment and enterprise networking hardware in Bangladesh with competitive pricing and technical consultation.
Key Features
- 25Gbps high-speed Ethernet connectivity
- SFP28 form factor
- 25GBASE-SR standard
- 850nm optical wavelength
- Multimode fiber (MMF) support
- LC optical connector
- Up to 70m on OM3 with RS-FEC
- Up to 100m on OM4 with RS-FEC
- DDM supported
- 0°C to 70°C operating temperature
- Suitable for high-speed data-center networks
- Designed for compatible Huawei networking equipment
25Gbps Network Connectivity
The SFP-25G-SR provides 25Gbps Ethernet connectivity for high-bandwidth networking applications. Its 25GBASE-SR interface is designed for short-distance multimode fiber connections commonly used inside modern data centers.
25GbE provides substantially more bandwidth than 10GbE and is widely used for server uplinks, switch interconnections and high-performance data-center networking.
SFP28 Form Factor
The Huawei SFP-25G-SR uses the compact SFP28 form factor. SFP28 modules are designed for 25Gbps Ethernet applications while maintaining a compact pluggable design suitable for high-density network switches and adapters.
The SFP28 form factor is particularly useful where network equipment requires a large number of high-speed ports within a limited rack-space footprint.
25GBASE-SR Standard
The SFP-25G-SR supports the 25GBASE-SR application standard. SR stands for Short Reach and is intended for short-distance transmission over multimode optical fiber.
This makes the module well suited to data-center deployments where network equipment is connected over relatively short fiber runs.
850nm Optical Wavelength
The SFP-25G-SR operates at an 850nm center wavelength. Huawei's official specification identifies 850nm as the transmitter center wavelength. :contentReference[oaicite:3]{index=3}
The 850nm wavelength is commonly used for short-range multimode-fiber Ethernet applications.
Multimode Fiber Support
The module is designed for multimode fiber (MMF). Huawei specifies OM3 and OM4 multimode fiber transmission distances for this module. :contentReference[oaicite:4]{index=4}
Using the appropriate fiber grade and connector is important for achieving the expected transmission distance and link performance.
Transmission Distance
Huawei's official specifications list the following target distances:
| Fiber | RS-FEC Disabled | RS-FEC Enabled |
|---|
| OM3 Multimode Fiber | 30m | 70m |
| OM4 Multimode Fiber | 40m | 100m |
These figures are Huawei's documented target transmission distances for the SFP-25G-SR. :contentReference[oaicite:5]{index=5}
LC Connector
The Huawei SFP-25G-SR uses an LC optical connector. The LC interface is compact and widely used in high-density data-center fiber installations. :contentReference[oaicite:6]{index=6}
Ensure that the fiber patch cable and the network equipment on the opposite end use compatible connector and fiber specifications.
Digital Diagnostic Monitoring
Huawei documentation identifies DDM as supported for the SFP-25G-SR. Digital Diagnostic Monitoring can provide optical and module operating information when supported by the host networking equipment. :contentReference[oaicite:7]{index=7}
Operating Temperature
The specified working-case temperature range is 0°C to 70°C. This makes the module suitable for standard controlled data-center and enterprise networking environments. :contentReference[oaicite:8]{index=8}
Optical Transmitter Characteristics
Huawei specifies the following transmitter optical characteristics for the SFP-25G-SR:
- Center wavelength: 850nm
- Maximum Tx optical power: 2.4dBm
- Minimum Tx optical power: -8.4dBm
- Minimum extinction ratio: 2dB
These values are taken from Huawei's official SFP-25G-SR specification. :contentReference[oaicite:9]{index=9}
Optical Receiver Characteristics
The documented receiver characteristics include:
- Rx sensitivity: -10.3dBm
- Overload power: 2.4dBm
These optical specifications are provided by Huawei for the SFP-25G-SR module. :contentReference[oaicite:10]{index=10}
Data Center Applications
The Huawei SFP-25G-SR is particularly suitable for short-distance 25GbE connections inside data centers.
- 25GbE server-to-switch connections
- 25GbE switch uplinks
- Data-center leaf and access networking
- Enterprise network aggregation
- High-bandwidth server connectivity
- Multimode fiber infrastructure
- High-density network deployments
Server-to-Switch Connectivity
Modern servers equipped with 25GbE SFP28 network adapters can use the SFP-25G-SR for high-speed optical connectivity to compatible 25GbE network switches.
For a complete optical link, both endpoints must support compatible 25GbE optics, fiber and configuration requirements.
High-Density Networking
The compact SFP28 form factor allows network equipment manufacturers to provide a high number of 25GbE ports within a relatively small physical footprint.
This makes SFP-25G-SR modules useful for high-density data-center environments where rack space and port density are important considerations.
Huawei SFP-25G-SR vs 25G LR
| Feature |
SFP-25G-SR |
SFP-25G-LR |
| Standard |
25GBASE-SR |
25GBASE-LR |
| Form Factor |
SFP28 |
SFP28 |
| Wavelength |
850nm |
1310nm |
| Fiber |
MMF |
SMF |
| Typical Application |
Short-range data center |
Longer-distance fiber links |
Huawei's official documentation identifies the SFP-25G-LR as a 25G/10G LR module using 1310nm and single-mode fiber, while the SFP-25G-SR uses 850nm and multimode fiber. :contentReference[oaicite:11]{index=11}
Compatibility Considerations
The SFP-25G-SR should be installed in equipment that supports compatible 25GbE SFP28 optical modules. Huawei documentation lists the SFP-25G-SR as a supported 25Gbps SFP28 optical module for compatible Huawei platforms. :contentReference[oaicite:12]{index=12}
- Compatible SFP28 port
- 25GbE support
- 25GBASE-SR compatibility
- Multimode fiber infrastructure
- Compatible LC fiber connectors
- Appropriate optical-module support
Always verify the exact switch, router, server adapter or network card compatibility before installation.
Benefits
- 25Gbps high-speed connectivity
- Compact SFP28 form factor
- 850nm multimode optical transmission
- 25GBASE-SR support
- LC connector
- OM3 and OM4 fiber support
- DDM support
- Suitable for high-density data-center networks
- Designed for short-range optical links
- 0°C to 70°C operating temperature
Why Buy from Datacom Technologies (BD)?
Datacom Technologies (BD) supplies Huawei optical modules, SFP/SFP28 transceivers, Ethernet switches, server networking components and data-center connectivity equipment in Bangladesh. Customers can receive competitive pricing, technical consultation, deployment assistance and nationwide delivery.
- Call/WhatsApp: +8801748173213
- Email: sales@datacom.com.bd
- Alternative Email: datacomtechnologiesbd@gmail.com
- Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh
Frequently Asked Questions (FAQ)
Q1: What is the Huawei SFP-25G-SR?
The Huawei SFP-25G-SR is a 25Gbps 25GBASE-SR SFP28 optical transceiver designed for short-range multimode fiber networking.
Q2: What is the Huawei part number?
The Huawei SFP-25G-SR is documented with part number 02311KNR. :contentReference[oaicite:13]{index=13}
Q3: What is the data rate?
The module supports a transmission rate of 25Gbps. :contentReference[oaicite:14]{index=14}
Q4: What wavelength does SFP-25G-SR use?
It uses an 850nm center wavelength. :contentReference[oaicite:15]{index=15}
Q5: What type of fiber does it use?
The SFP-25G-SR is designed for multimode fiber (MMF). :contentReference[oaicite:16]{index=16}
Q6: What connector does it use?
It uses an LC optical connector. :contentReference[oaicite:17]{index=17}
Q7: What is the maximum transmission distance?
Huawei specifies up to 70m on OM3 with RS-FEC and 100m on OM4 with RS-FEC. Without RS-FEC, the documented targets are 30m on OM3 and 40m on OM4. :contentReference[oaicite:18]{index=18}
Q8: Does SFP-25G-SR support DDM?
Yes. Huawei documentation identifies DDM as supported. :contentReference[oaicite:19]{index=19}
Q9: What is the operating temperature?
The specified working-case temperature is 0°C to 70°C. :contentReference[oaicite:20]{index=20}
Q10: Is SFP-25G-SR a single-mode module?
No. It is designed for multimode fiber (MMF) and uses an 850nm wavelength.
Q11: Is SFP-25G-SR suitable for data centers?
Yes. It is designed for short-range 25GbE optical connectivity and is suitable for data-center server, switch and high-bandwidth network connections.
Q12: Can SFP-25G-SR be used with OM3 fiber?
Yes. Huawei specifies OM3 multimode fiber with target distances of 30m without RS-FEC and 70m with RS-FEC. :contentReference[oaicite:21]{index=21}
Q13: Can SFP-25G-SR be used with OM4 fiber?
Yes. Huawei specifies OM4 multimode fiber with target distances of 40m without RS-FEC and 100m with RS-FEC. :contentReference[oaicite:22]{index=22}
Q14: Can SFP-25G-SR be used with any SFP28 switch?
Compatibility depends on the switch, firmware, optical-module support and vendor requirements. Verify the exact equipment before deployment.
Q15: Where can I buy Huawei SFP-25G-SR in Bangladesh?
You can contact Datacom Technologies (BD) for Huawei optical modules, SFP28 transceivers, Ethernet switches and enterprise networking equipment with competitive pricing and nationwide delivery.
