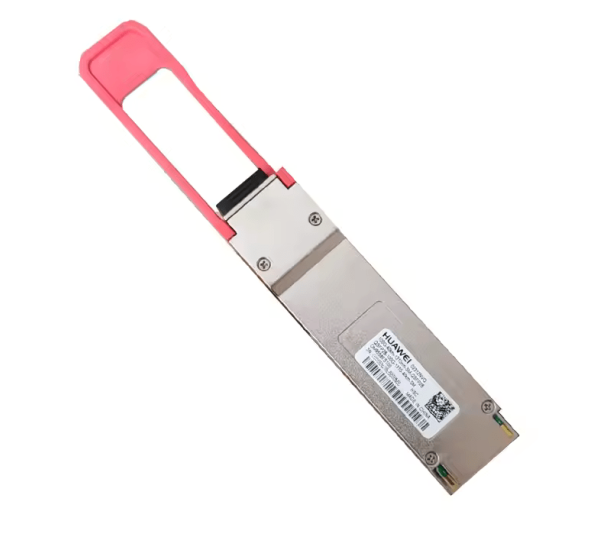

Huawei QSFP-100G-SWDM4 02311QUK Optical Modules
Datacom Technologies BD is your trusted source for top-quality networking equipment, including the Huawei QSFP-100G-SWDM4 02311QUK Optical Modules. We offer competitive prices and excellent customer service. Our team of experts is dedicated to providing you with the best solutions for your networking needs.
Huawei 100G 02311QUK Optical Modules Specification
| Parameter |
Value |
| Form Factor |
QSFP28 |
| Application Standard |
100G-SWDM4 |
| Connector Type |
LC |
| Optical Fiber Type |
MMF |
| Working Case Temperature |
0°C to 70°C (32°F to 158°F) |
| Digital Diagnostic Monitoring (DDM) |
Supported |
| Transmission Rate |
100Gbit/s |
| Target Transmission Distance |
Multimode (OM3) optical fiber (diameter: 50 μm): 75 m |
| Target Transmission Distance |
Multimode (OM4) optical fiber (diameter: 50 μm): 100 m |
| Modal Bandwidth |
Multimode (OM3) optical fiber: 2000 MHz*km |
| Modal Bandwidth |
Multimode (OM4) optical fiber: 4700 MHz*km |
| Transmitter Optical Characteristics |
Center wavelength: 850 nm |
| Transmitter Optical Characteristics |
Maximum Tx optical power: 3.4 dBm |
| Transmitter Optical Characteristics |
Minimum Tx optical power: -7.5 dBm |
| Transmitter Optical Characteristics |
Minimum extinction ratio: 2 dB |
| Receiver Optical Characteristics |
Rx sensitivity: -10.5 dBm |
| Receiver Optical Characteristics |
Overload power: 2.4 dBm |
100GB 02311QUK Modules Description:
The
Huawei QSFP-100G-SWDM4 02311QUK Optical Module is a high-performance, small form factor (QSFP28) transceiver designed for 100 Gigabit Ethernet (100GE) applications over multimode fiber (MMF). This module utilizes Short Wavelength Division Multiplexing (SWDM4) technology to transmit four independent 25 Gigabit Ethernet channels over a single fiber, enabling high-speed data transmission over shorter distances.
The QSFP-100G-SWDM4 module is compatible with industry standards, including the QSFP28 Multi-Source Agreement (MSA), IEEE 802.3cm-2020, and CAUI-4. It features a duplex LC connector and supports both OM3 and OM4 multimode fiber types. The module also incorporates Digital Diagnostic Monitoring (DDM) capabilities, allowing for real-time monitoring of key operational parameters such as optical power, temperature, and voltage.
Key benefits of the Huawei QSFP-100G-SWDM4 module include:
High-speed data transmission: Supports 100 Gigabit Ethernet over multimode fiber, enabling high-performance networking applications.
Compact form factor: The QSFP28 form factor allows for dense port density in data center and enterprise networking equipment.
Cost-effective: Provides a cost-effective solution for 100GE connectivity over shorter distances compared to single-mode fiber-based transceivers.
Reliability and compatibility: Adheres to industry standards and offers reliable performance in various networking environments.
Digital diagnostic monitoring: Enables real-time monitoring and troubleshooting of the module's operation.
Supported/Comparable Models
The Huawei QSFP-100G-SWDM4 02311QUK is compatible with other 100G-SWDM4 optical modules from various vendors.
Some comparable models include:
Cisco QSFP-100G-SWDM4
Juniper QSFP-100G-SWDM4
Finisar QSFP-100G-SWDM4
Dell EMC QSFP-100G-SWDM4
What is the price of a Huawei QSFP-100G-SWDM4 02311QUK Optical Modules in Bangladesh?
The Huawei QSFP-100G-SWDM4 02311QUK Optical Modules typically ranges in price from TK30,000/= to TK50,000/= in Bangladesh. However, please note that actual pricing may vary due to factors such as quantity, warranty, and current market conditions.
For a quote, contact
Datacom Technologies BD:
Call/WhatsApp: +8801748173213
Email: sales@datacomtechbd.com or datacomtechnologiesbd@gmail.com
