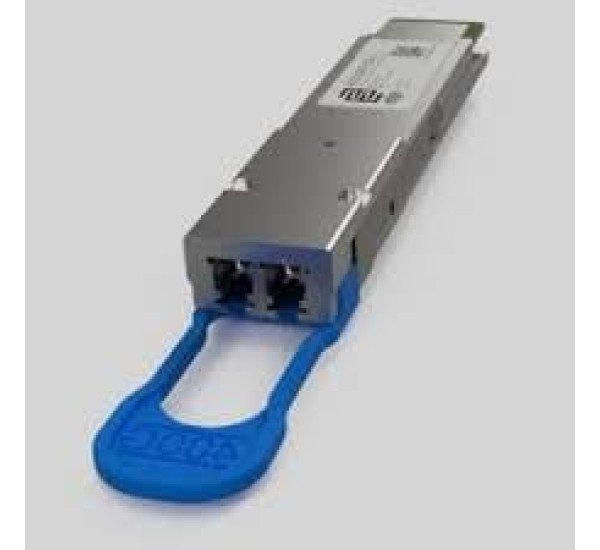

Huawei 02312NPG QSFP-DD-400G-SR8 400Gbps Optical Transceiver Module
The Huawei 02312NPG is a high-speed 400Gbps QSFP-DD SR8 optical transceiver designed for short-range, high-density Ethernet connectivity over multimode fiber. It provides high-bandwidth optical networking for compatible Huawei switches, routers, data center platforms, and other supported networking equipment.
The SR8 optical architecture uses parallel optical lanes and operates in the 850nm wavelength range. It is designed for short-distance transmission over compatible multimode fiber (MMF), making it suitable for high-density data center and enterprise networking environments.
400Gbps QSFP-DD SR8 Optical Connectivity
The Huawei QSFP-DD-400G-SR8 provides 400GbE connectivity through the high-density QSFP-DD form factor. Its SR8 architecture uses parallel optical transmission to deliver high-speed connectivity over multimode fiber.
The transceiver is suitable for compatible Huawei networking platforms supporting 400GbE QSFP-DD SR8 optical interfaces.
100m Multimode Fiber Transmission
The module is designed for multimode fiber (MMF) and supports short-range optical connectivity of up to 100 meters, making it well suited for connections within data centers, server rooms, and enterprise facilities.
850nm Optical Transmission
The SR8 architecture operates at approximately 850nm and uses multiple optical lanes to provide 400Gbps aggregate bandwidth over compatible multimode fiber infrastructure.
QSFP-DD High-Density Form Factor
The compact QSFP-DD form factor enables high-density 400GbE networking while optimizing front-panel port utilization in modern data center switches and networking platforms.
Parallel-Fiber Connectivity
SR8 optical connectivity uses a high-density multi-fiber interface to accommodate its parallel optical lanes. This makes the transceiver suitable for structured data center cabling and high-density fiber patching environments.
Technical Specifications
| Specification |
Details |
| Brand |
Huawei |
| Part Number |
02312NPG |
| Model |
QSFP-DD-400G-SR8 |
| Product Type |
400Gbps QSFP-DD SR8 Optical Transceiver |
| Form Factor |
QSFP-DD |
| Data Rate |
400Gbps |
| Optical Type |
SR8 |
| Wavelength |
850nm |
| Fiber Type |
Multimode Fiber (MMF) |
| Maximum Distance |
Up to 100m |
| Optical Architecture |
Parallel Fiber |
Applications
- 400GbE Ethernet networks
- Data center switch-to-switch connectivity
- 400GbE switch-to-server links
- High-density data center networks
- Network aggregation
- High-performance computing infrastructure
- 100m multimode fiber connections
Compatibility
The Huawei 02312NPG is intended for compatible Huawei networking equipment supporting 400GbE QSFP-DD SR8 optical transceivers. Before installation, verify the exact host equipment model, supported transceiver list, QSFP-DD port requirements, fiber specifications, connector configuration, and supported 400GbE operating mode.
For reliable operation, ensure that the installed multimode fiber and multi-fiber cabling are suitable for the SR8 parallel optical architecture and that both connected devices support the required 400GbE interface.
Huawei 02312NPG Price in Bangladesh
Datacom Technologies (BD) supplies Huawei networking products, optical transceivers, fiber connectivity products, and data center hardware in Bangladesh. The price of Huawei 02312NPG may vary depending on stock availability, quantity, warranty, product condition, and project requirements.
For the latest Huawei QSFP-DD-400G-SR8 price in Bangladesh, stock availability, and project quotation, customers can contact Datacom Technologies (BD) with the required quantity and compatible equipment details.
Why Choose Huawei QSFP-DD-400G-SR8?
- 400Gbps high-speed Ethernet connectivity
- High-density QSFP-DD form factor
- SR8 parallel optical technology
- Up to 100m multimode fiber transmission
- 850nm optical transmission
- Suitable for modern data center and high-performance networking
