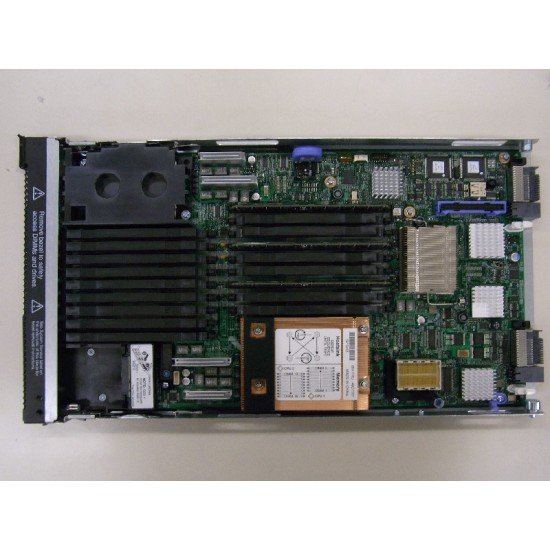

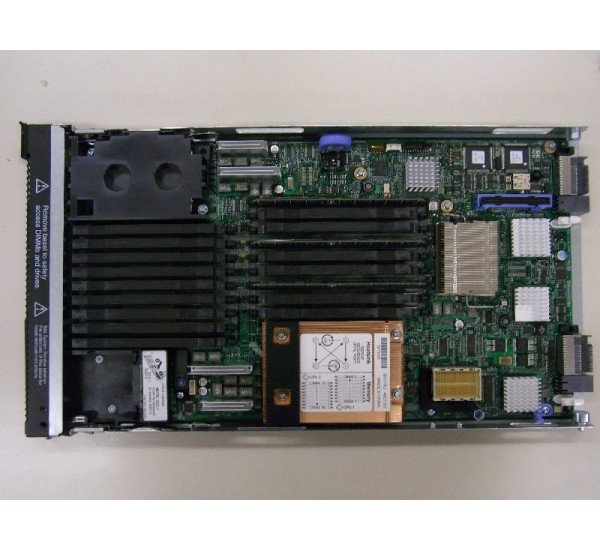

IBM 81Y6096 System Board for BladeCenter HS22V
The IBM 81Y6096 System Board is a high-performance server motherboard designed for BladeCenter HS22V. Built for reliability and efficiency, it supports advanced server functionalities for seamless operations. If you need an original IBM motherboard in BD, Datacom Technologies BD offers competitive prices with warranty. Order now for quick delivery across Bangladesh!
Specification
| Feature |
Specification |
| Form Factor |
Blade Server System Board |
| Compatibility |
IBM BladeCenter HS22V Blade Server |
| Processor Support |
Supports up to two Intel Xeon 5500 or 5600 series processors |
| Memory |
18 DIMM slots, DDR3 VLP ECC Registered |
| Maximum Memory |
Up to 288 GB (using 16GB DIMMs) |
| Expansion Slots |
1 x CIOv slot, 1 x CFFh slot |
| Integrated Features |
Integrated Management Module (IMM) with IPMI, Matrox G200e video adapter, LSI 1064E SAS controller, Broadcom BCM5709S dual-port Gigabit Ethernet controller |
| Other Features |
Light path diagnostics, Automatic Server Restart (ASR), Serial over LAN (SOL) |
Description
The
IBM 81Y6096 System Board is the heart of the IBM BladeCenter HS22V blade server. It's a high-performance, compact system board designed for demanding enterprise environments. Let's break down its key features:
- Processor Powerhouse: The board supports up to two Intel Xeon 5500 or 5600 series processors. These processors offer a range of core counts and clock speeds, allowing you to tailor the server's processing power to your specific needs. Whether you're running virtualization, databases, or other intensive applications, this system board can handle it.
- Memory Capacity for Demanding Workloads: With 18 DIMM slots, this system board can accommodate a massive amount of DDR3 VLP ECC Registered memory. In its maximum configuration, it supports up to 288 GB of RAM, providing ample space for applications and their data. The ECC (Error-Correcting Code) memory ensures data integrity, while the Registered DIMMs enhance stability and performance in high-memory configurations.
- Integrated Management and Connectivity: The system board comes with an Integrated Management Module (IMM) that provides comprehensive remote management capabilities. This allows administrators to monitor and control the server from anywhere, reducing downtime and simplifying maintenance. The board also includes an integrated Matrox G200e video adapter for basic display functions, an LSI 1064E SAS controller for RAID support, and a Broadcom BCM5709S dual-port Gigabit Ethernet controller for high-speed network connectivity.
- Expansion Options: The system board features two expansion slots: one CIOv slot and one CFFh slot. These slots provide flexibility for adding high-performance I/O devices, such as network adapters or storage controllers, to further customize the server.
- Reliability and Serviceability: The system board incorporates features like light path diagnostics and Automatic Server Restart (ASR) to enhance reliability and simplify troubleshooting. Light path diagnostics provide visual indicators of system issues, while ASR automatically restarts the server after a failure.
Supported/Comparable Models
The IBM 81Y6096 System Board is specifically designed for the
IBM BladeCenter HS22V blade server. It is not compatible with other blade server models.
