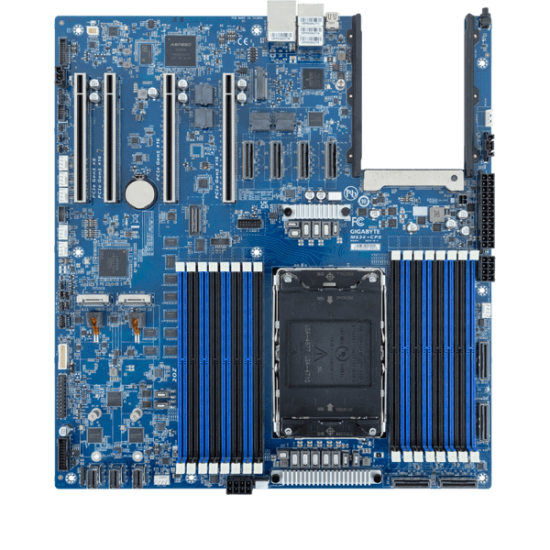

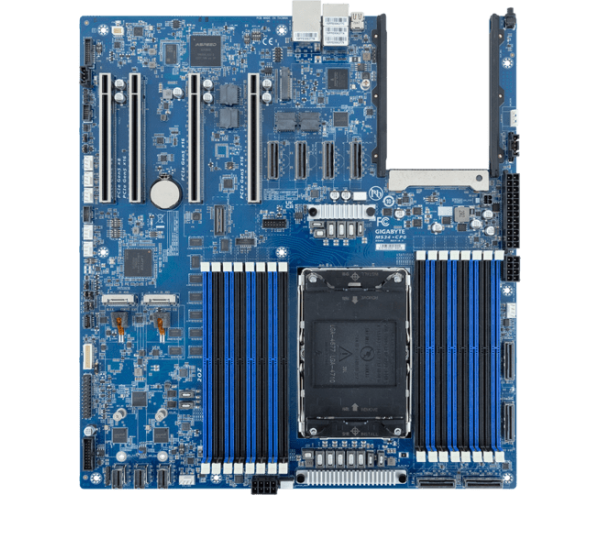

GIGABYTE MS34-CP0 Intel Xeon 6 Server Motherboard
The GIGABYTE MS34-CP0 is an E-ATX server motherboard designed for a single compatible Intel Xeon 6 6500-series or 6700-series processor. It is built for enterprise computing and data center environments that require high-speed memory, storage connectivity, and modern PCIe expansion.
Intel Xeon 6 Processing and DDR5 Memory
The MS34-CP0 features one LGA 4710 processor socket and 16 DDR5 RDIMM/MRDIMM memory slots with an eight-channel memory architecture. It supports compatible server configurations for virtualization, cloud infrastructure, data processing, and other demanding enterprise workloads.
- Manufacturer: GIGABYTE
- Model: MS34-CP0, Rev. 1.x
- Processor support: Select Intel Xeon 6 6500-series and 6700-series processors
- Processor socket: 1 x LGA 4710
- Memory: 16 DDR5 RDIMM/MRDIMM slots with eight-channel architecture
- Networking: 2 x 1GbE LAN ports and a dedicated management LAN
- Storage: MCIO and SlimSAS interfaces, plus 2 x M.2 PCIe Gen5 x2 slots
- Expansion: 4 x PCIe Gen5 x16 physical slots and 1 x OCP NIC 3.0 slot
- Form factor: E-ATX, 304.8 x 330.2 mm
Storage Connectivity and Server Management
The motherboard provides interfaces for compatible NVMe and SATA storage devices, along with PCIe expansion for supported add-in cards. Its integrated ASPEED AST2600 baseboard management controller and dedicated management LAN support remote administration through the GIGABYTE Management Console.
Compatibility and Installation
Confirm the exact Intel Xeon 6 processor model, supported memory configuration, chassis dimensions, power connections, and expansion requirements before purchasing. Certain MCIO connectivity features require a processor with 136 PCIe lanes. Refer to the official GIGABYTE documentation for validated configurations and installation instructions.
Buy GIGABYTE Server Motherboard in Bangladesh
Datacom Technologies (BD) supplies server components and enterprise IT hardware for businesses and data centers in Bangladesh. Contact our team to check availability, pricing, and compatibility for the GIGABYTE MS34-CP0 server motherboard.
