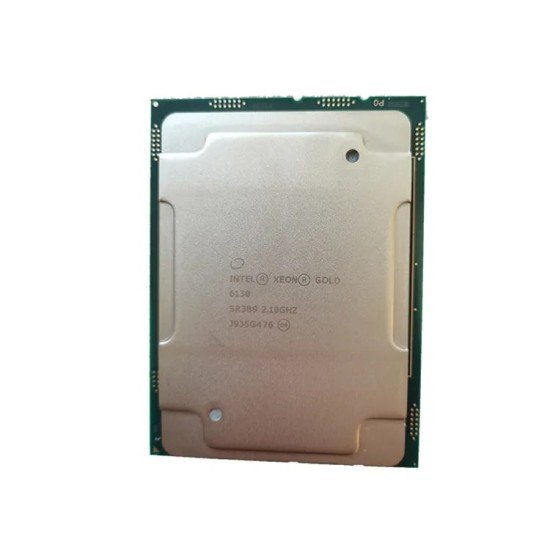

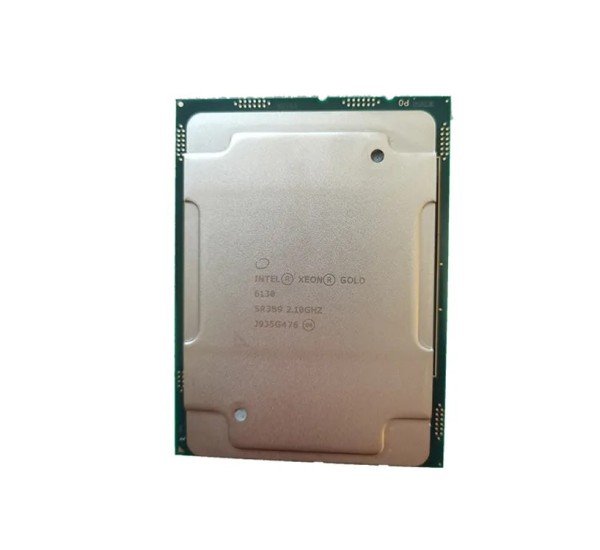

Intel Xeon Gold 6138 Processor
The Intel Xeon Gold 6138 Processor offers exceptional performance with 20 cores, 40 threads, and a base clock speed of 2.00 GHz, perfect for demanding workloads. Featuring 27.5 MB of L3 cache and support for DDR4-2666 memory, this powerful processor ensures efficiency and speed for enterprise-level applications.
Specification
| Feature |
Specification |
| Processor Number |
Intel Xeon Gold 6138 |
| Launch Date |
Q3'17 |
| Lithography |
14 nm |
| Number of Cores |
20 |
| Number of Threads |
40 |
| Base Clock Speed |
2.00 GHz |
| Max Turbo Frequency |
3.70 GHz |
| Cache |
27.5 MB L3 Cache |
| TDP (Thermal Design Power) |
125 W |
| Socket Supported |
FCLGA3647 |
| Memory Types |
DDR4-2666 |
| Max Memory Size |
768 GB |
| Max Memory Bandwidth |
128 GB/s |
| ECC Memory Support |
Yes |
| Scalability |
4-way |
| PCI Express Version |
3.0 |
| Max PCI Express Lanes |
48 |
| Virtualization Support |
VT-x, VT-d, EPT |
| Intel Turbo Boost Tech |
2.0 |
| Intel Hyper-Threading |
Yes |
Description
The
Intel Xeon Gold 6138 is a high-performance server processor designed for demanding data center and enterprise workloads. Part of Intel’s scalable Xeon Gold series, it features 20 physical cores and 40 threads, thanks to Intel Hyper-Threading Technology. With a base clock speed of 2.0 GHz and Turbo Boost capability up to 3.7 GHz, the Xeon Gold 6138 delivers a powerful balance of performance and efficiency, making it ideal for virtualization, cloud computing, and high-performance computing (HPC) applications.
Built on a 14nm process and supporting the FCLGA3647 socket, this processor is optimized for multi-CPU configurations, supporting up to four sockets in a single system. It offers a generous 27.5 MB of L3 cache and supports up to 768 GB of DDR4-2666 memory with ECC, ensuring fast, reliable data processing and error correction for mission-critical applications.
The Xeon Gold 6138 also includes Intel’s virtualization technologies (VT-x, VT-d) and supports PCI Express 3.0 with 48 lanes for high-speed I/O connectivity. With its high core count, robust memory support, and advanced features, the Xeon Gold 6138 is well-suited for intensive workloads such as database management, AI inference, and large-scale virtualization.
Key Features
- Cores / Threads: 20 cores / 40 threads
- Base Frequency: 2.0 GHz (Turbo up to 3.7 GHz)
- Cache: 27.5 MB L3 Cache
- TDP: 125W
- Socket: LGA 3647
- Memory Support: DDR4-2666, 6 channels, up to 768GB per socket
- Scalability: Supports up to 4-socket configurations
- Virtualization: Intel VT-x and VT-d supported
- Advanced Features: Intel Hyper-Threading, Intel Turbo Boost Technology 2.0, Intel AVX-512
Where It Can Be Used?
- Enterprise Servers: Ideal for data centers and high-availability systems
- Cloud Computing: Great for virtualization and containerized environments
- Big Data & Analytics: Supports high-throughput workloads
- AI & Machine Learning: Efficient for training models at scale
- Financial Modeling / Scientific Computing: Excellent FP performance
- Workstations: Used in high-end creative and engineering applications
Installation Steps
1.
Preparation:
- Power off the system and unplug all power sources.
- Use an ESD strap to avoid static damage.
2.
Processor Installation:
- Open the LGA 3647 socket retention mechanism on the server motherboard.
- Carefully align and place the Xeon Gold 6138 into the socket.
- Close and lock the retention mechanism.
3.
Cooling Solution:
- Apply thermal paste if required.
- Install an appropriate server-grade heatsink/fan or liquid cooling block.
4.
Memory Installation:
- Install supported DDR4 ECC RDIMM or LRDIMM modules in the correct channel configuration.
5.
Post-Installation:
- Connect power, boot system, and check BIOS to confirm CPU detection.
- Update BIOS/firmware if needed for compatibility.
User Experience
- Performance: Excellent multitasking and parallel processing capabilities
- Stability: Enterprise-level reliability and long uptimes
- Scalability: Easily integrates into multi-CPU setups
- Thermals: Runs efficiently with proper cooling
- Support: Well-supported in server and workstation platforms
Why Choose Intel Xeon Gold 6138 Processor?
- Balanced Performance: High core count with strong single-thread and multi-thread speed
- Enterprise-Ready: Designed for critical workloads and 24/7 uptime
- Upgrade Path: Scalable for large systems and future growth
- Trusted Brand: Backed by Intel's reputation for reliability and innovation
- Cost-Effective: Strong performance per watt and per dollar in the Gold series
Buy Intel Xeon Gold 6138 Processor at the Best Price from Datacom BD Online
In Bangladesh, you can get
Intel Xeon Gold 6138 Processor From
Datacom. We have a large collection of latest Server processor to purchase. Order Online Or Visit our Office to get yours at lowest price. The Intel Xeon Gold 6138 Processor comes with 1-year warranty.
- ? Call/WhatsApp: 01748173213
- ✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the price of Intel Xeon Gold 6138 Processor in Bangladesh?
The estimated price of
Intel Xeon Gold 6138 Processor in Bangladesh is 175,000৳. You can buy the Intel Xeon Gold 6138 Processor at best price from our website or visit our Office.
For the most accurate pricing, stock availability, and warranty details, we recommend contacting us before placing your order.
