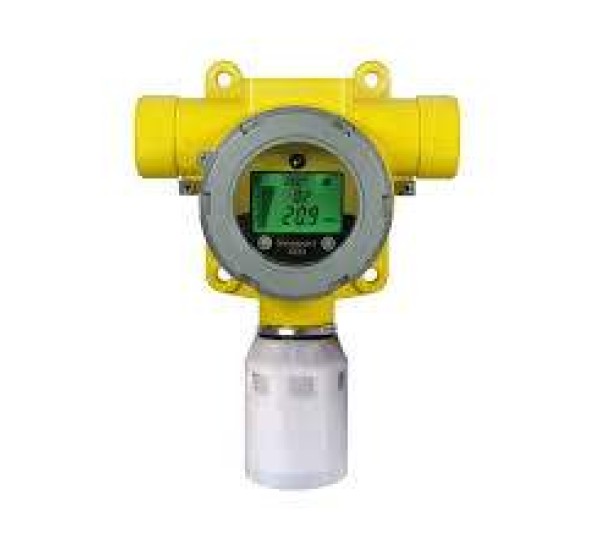

Honeywell Sensepoint XCD (and Variants) – Fixed Gas Detection Transmitter | Industrial Safety Monitoring
The Honeywell Sensepoint XCD (and variants) is a family of fixed gas detection transmitters engineered for continuous monitoring of toxic and combustible gases in industrial, commercial, and hazardous environments. Designed for reliability, accuracy, and ease of installation, these detectors deliver real‑time alerts to ensure personnel safety, regulatory compliance, and asset protection.
With robust sensor technology, modular design, and flexible communication options, the Sensepoint XCD series can detect a wide range of gases — including oxygen (O₂), hydrogen sulfide (H₂S), carbon monoxide (CO), explosive atmospheres (LEL) and more — making it ideal for use in factories, wastewater treatment plants, oil & gas facilities, power plants, and confined spaces.
Honeywell’s proven safety standards, advanced diagnostics, and straightforward calibration workflow ensure dependable performance and minimal maintenance, even in demanding industrial conditions.
SPECIFICATIONS
| Feature | Details |
|---|
| Product Name | Honeywell Sensepoint XCD Fixed Gas Detection Transmitter (and variants) |
| Brand | Honeywell Analytics |
| Detector Type | Fixed Gas Detection Transmitter |
| Gas Types | Toxic (CO, H₂S, etc.), Combustible (LEL), Oxygen (O₂) |
| Sensor Technology | Electrochemical, Catalytic Bead, Infrared (Varies by Sensor) |
| Display | Local LCD (with status/levels) |
| Outputs | 4–20 mA, HART (optional), Relay (optional) |
| Certifications | ATEX / IECEx / FM / CSA (model dependent) |
| Ingress Protection | IP65 / IP66 / IP67 (variant dependent) |
| Housing Material | Rugged Aluminium/Stainless Steel |
| Operating Temp. | -40°C to +60°C (model dependent) |
| Power Supply | 24 VDC / Loop Powered |
| Mounting | Wall/Bracket Mount |
| Application | Industrial fixed gas detection |
Specifications vary by model and gas sensor configuration.
Honeywell Sensepoint XCD (and Variants) Description
The Honeywell Sensepoint XCD family is part of Honeywell’s industrial gas detection portfolio, engineered for continuous fixed monitoring of hazardous gases. These detectors support a broad range of sensor types — including electrochemical for toxic gases, catalytic bead for combustible gases, and infrared for hydrocarbons — allowing tailored detection solutions based on application requirements.
With a robust design certified for hazardous locations (ATEX, IECEx, FM, CSA), Sensepoint XCD transmitters withstand harsh environments, corrosive fumes, and temperature extremes. The modular sensor platform simplifies installation and field replacement, reducing downtime and maintenance costs.
Advanced features such as local LCD readouts, smart diagnostics, and optional HART communication enable real‑time status monitoring, remote configuration, and integration with building management systems (BMS), safety shutdown systems (ESD/SIS), and control systems. Integrated 4–20 mA outputs and optional relays make these detectors compatible with a wide range of control and safety architectures.
Ideal for continuous safety monitoring in chemical plants, refineries, utilities, wastewater facilities, and confined spaces, the Sensepoint XCD series provides reliable, accurate detection of life‑threatening gases, helping protect personnel, equipment, and facilities.
Key Features
Fixed gas detection for toxic, combustible, and oxygen gases
Modular sensor platform with multiple sensing technologies
Local LCD display for real‑time gas level indication
4–20 mA output with optional HART and relay interfaces
Rugged hazardous location certifications (ATEX / IECEx / FM / CSA)
IP65–IP67 rated weatherproof and corrosion‑resistant housing
Easy sensor replacement with minimal maintenance
High reliability with smart diagnostics and self‑test features
Where It Can Be Used
Chemical and petrochemical plants
Oil & gas production and processing facilities
Power generation stations
Wastewater treatment plants
Confined spaces and underground utility vaults
Manufacturing and industrial facilities
Laboratories and storage areas
