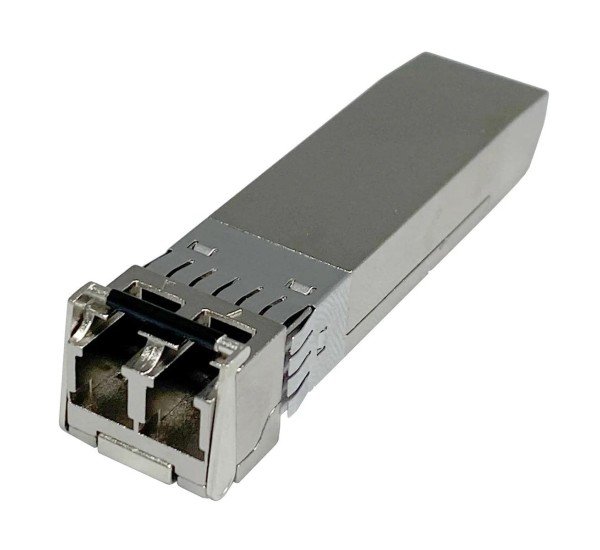

Juniper JNP-SFP-25G-LR 25Gbps SFP28 LR 10km Optical Transceiver Module
The Juniper JNP-SFP-25G-LR is a 25Gbps long-range optical transceiver designed for high-speed Ethernet connectivity over single-mode fiber. It uses the compact SFP28 form factor and is designed for compatible Juniper networking equipment requiring extended-reach 25Gbps optical connectivity.
The module operates at a nominal 1310nm wavelength and provides transmission distances of up to 10 kilometers over compatible single-mode fiber. It is suitable for enterprise networks, data centers, network aggregation, campus backbones, and other high-bandwidth 25Gbps applications.
25Gbps SFP28 LR Connectivity
The JNP-SFP-25G-LR provides 25Gbps Ethernet connectivity through an SFP28 interface. Its LR optical configuration is designed for extended-distance fiber links where short-range multimode transceivers are not appropriate.
The module provides a high-density optical solution for compatible Juniper switches, routers, aggregation platforms, and other 25Gbps network equipment.
10km Single-Mode Fiber Transmission
The transceiver is designed for single-mode fiber (SMF) and supports optical transmission distances of up to 10km. This extended reach makes it suitable for connecting network equipment across data centers, enterprise facilities, campuses, and other infrastructure.
1310nm Optical Transmission
The module uses a nominal 1310nm wavelength for transmission over compatible single-mode fiber infrastructure, providing long-range optical connectivity for 25Gbps Ethernet networks.
SFP28 Form Factor
The compact SFP28 form factor provides high port density for 25Gbps networking applications. The transceiver can be installed directly into compatible SFP28 ports on supported Juniper networking equipment.
Extended-Reach Network Connectivity
The 10km optical reach makes the JNP-SFP-25G-LR suitable for switch-to-switch, network aggregation, backbone, and data center interconnect applications requiring extended single-mode fiber connectivity.
Technical Specifications
| Specification |
Details |
| Brand |
Juniper Networks |
| Part Number |
JNP-SFP-25G-LR |
| Product Type |
25Gbps SFP28 LR Optical Transceiver |
| Form Factor |
SFP28 |
| Data Rate |
25Gbps |
| Optical Type |
LR |
| Wavelength |
1310nm |
| Fiber Type |
Single-Mode Fiber (SMF) |
| Maximum Distance |
10km |
Applications
- 25Gbps Ethernet networks
- 25Gbps data center connectivity
- Enterprise network infrastructure
- Network aggregation
- Switch-to-switch connectivity
- Campus and backbone network links
- 10km single-mode fiber connections
Compatibility
The Juniper JNP-SFP-25G-LR is designed for compatible Juniper networking equipment supporting 25Gbps SFP28 LR optical transceivers. Before installation, verify the host device's supported transceiver list, SFP28 port requirements, fiber specifications, connector configuration, and required transmission distance.
For reliable 10km operation, ensure the complete optical link meets the required optical power budget and that the installed single-mode fiber infrastructure is suitable for the intended distance.
Buy Juniper JNP-SFP-25G-LR in Bangladesh
Datacom Technologies (BD) supplies Juniper optical transceivers, networking equipment, fiber connectivity products, and data center hardware in Bangladesh. The JNP-SFP-25G-LR is suitable for compatible 25Gbps network environments requiring long-range single-mode fiber connectivity.
For enterprise, ISP, telecom, data center, and project requirements, customers can request a quotation based on the required optical module, host equipment, network speed, fiber type, connector, and transmission distance.
