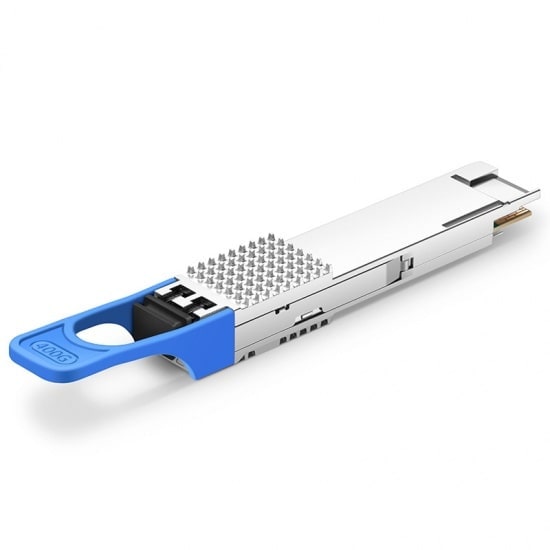

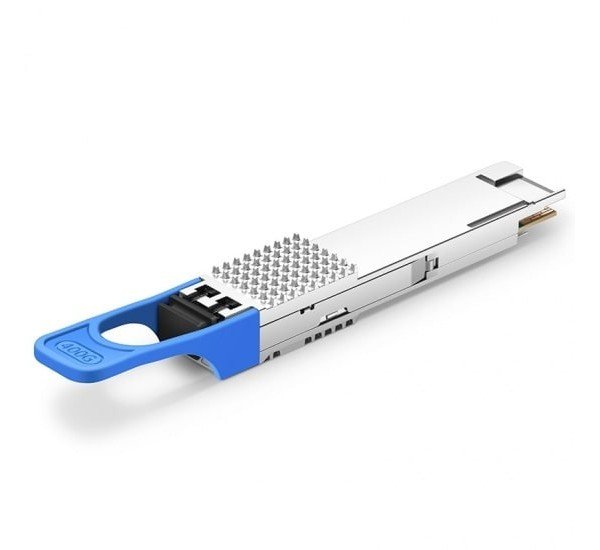

About Juniper QDD-400G-SR8 Transceiver Module
Specification
| Parameter |
Value |
| Form Factor |
QSFP56-DD |
| Data Rate |
400Gb/s |
| Wavelength |
850nm |
| Reach |
Up to 100 meters |
| Fiber Type |
Multimode Fiber (MMF) |
| Connector |
MPO-16 |
| Coding |
PAM4 |
| Power Consumption |
12W (typical) |
| Operating Temperature |
0°C to 70°C |
| Digital Diagnostic Monitoring (DDM) |
Supported |
Description
The Juniper QDD-400G-SR8 is a crucial component for high-bandwidth data communication, enabling the transmission of massive amounts of data over short distances within data centers. Its compact QSFP56-DD form factor allows for high port density in networking equipment, maximizing space utilization.
The module utilizes advanced Pulse Amplitude Modulation 4 (PAM4) signaling, which encodes four data levels per symbol, effectively doubling the data rate compared to traditional NRZ signaling. This technology is essential for achieving 400GbE speeds over short distances.
The SR8 specification indicates that the module is designed for use with multimode fiber (MMF), specifically OM4 or OM5, which are commonly used in data center environments. The 850nm wavelength is optimized for transmission over these fiber types.
The MPO-16 connector provides a robust and reliable connection, ensuring minimal signal loss and facilitating easy installation and maintenance.
Digital Diagnostic Monitoring (DDM) capabilities allow network administrators to remotely monitor the health and performance of the transceiver module, enabling proactive maintenance and troubleshooting.
Supported/Comparable Models
The Juniper QDD-400G-SR8 is compatible with a wide range of Juniper Networks networking equipment, including switches and routers. It is also interoperable with other 400GbE SR8 transceivers from various vendors that comply with industry standards.
Get in Touch with Datacom Technologies (BD)
? Call/WhatsApp: 01748173213
✉ Email: sales@datacomtechbd.com | datacomtechnologiesbd@gmail.com
What is the Price of Juniper QDD-400G-SR8 Transceiver Module in Bangladesh?
The latest price of Juniper QDD-400G-SR8 Transceiver Module in Bangladesh ranges from 195,000৳ to 290,000৳ (Estimate) per unit, depending on the specific model, features, and warranty. To place an order for your Juniper 400G Transceiver Module, please contact us via call or WhatsApp at (+8801748173213). Alternatively, you can browse our collection of Juniper Transceiver Module and directly order the one that meets your needs.
