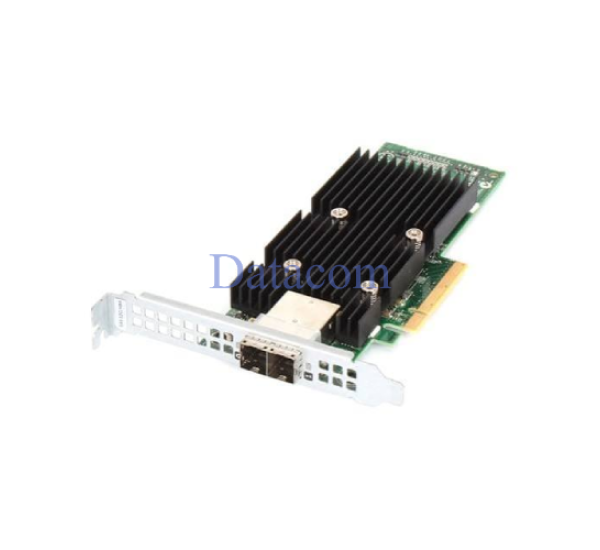

About LSI SAS HBA 9305-16E 12Gb/s 16-Port External Non-RAID Card in Bangladesh
The LSI SAS HBA 9305-16E is a high-performance 12Gb/s SAS-3 Host Bus Adapter designed for enterprise storage expansion, external JBOD enclosures, backup infrastructure, tape libraries, and software-defined storage environments. Powered by the Broadcom SAS3216 controller, it delivers exceptional throughput, low latency, and enterprise-grade reliability.
Featuring a PCI Express 3.0 x8 interface and four external Mini-SAS HD (SFF-8644) connectors, the adapter provides sixteen external 12Gb/s SAS lanes. It supports both SAS and SATA storage devices, making it ideal for connecting external storage shelves, SAS expanders, and high-capacity enterprise storage arrays.
Operating in IT Mode (Non-RAID), the LSI SAS 9305-16E provides direct disk access for software-defined storage platforms including TrueNAS, ZFS, VMware vSAN, Microsoft Storage Spaces Direct, Ceph, OpenStack, and Linux storage servers. It supports up to 1024 SAS or SATA devices through SAS expanders.
Whether building enterprise backup systems, virtualization platforms, cloud infrastructure, or external storage arrays, the LSI SAS 9305-16E delivers enterprise-class performance, scalability, and long-term reliability.
Buy LSI SAS HBA 9305-16E 12Gb/s 16-Port External Non-RAID Card in Bangladesh
Looking for the original LSI SAS HBA 9305-16E in Bangladesh? Datacom Technologies (BD) supplies genuine Broadcom LSI Host Bus Adapters with competitive pricing, expert consultation, and dependable after-sales support.
Compatibility
- Enterprise Rack Servers
- PCI Express 3.0 x8 Systems
- 12Gb SAS HDD & SSD
- 6Gb SATA HDD & SSD
- External JBOD Enclosures
- SAS Expanders
- VMware ESXi
- Microsoft Windows Server
- Linux (RHEL, Ubuntu, SUSE)
- TrueNAS, ZFS, Ceph & OpenStack
LSI SAS 9305-16E Specifications & Overview
| Specification |
Details |
| Product Type | SAS Host Bus Adapter (Non-RAID HBA) |
| Brand | Broadcom / LSI |
| Model | SAS 9305-16E |
| Part Number | 05-25704-00 |
| Controller | Broadcom SAS3216 |
| Host Interface | PCI Express 3.0 x8 |
| External Ports | 16 × 12Gb/s SAS/SATA |
| Connectors | 4 × Mini-SAS HD (SFF-8644) |
| Supported Drives | 12Gb SAS & 6Gb SATA HDD/SSD |
| Maximum Devices | Up to 1024 SAS/SATA Devices via SAS Expanders |
| Operating Mode | IT Mode (Non-RAID) |
| Performance | Over 1.5 Million IOPS |
| Form Factor | Low Profile PCIe Card (Full Height Bracket Included) |
Applications
- External JBOD Storage
- Enterprise Storage Arrays
- Tape Libraries
- VMware vSAN
- Microsoft Storage Spaces Direct
- TrueNAS & ZFS
- Ceph Storage
- Cloud Infrastructure
- Software-Defined Storage (SDS)
- Enterprise Data Centers
Benefits of Choosing This Product
The LSI SAS 9305-16E provides high-speed 12Gb/s SAS connectivity, PCIe Gen3 performance, support for up to 1024 storage devices, low latency, and enterprise-class reliability for large-scale storage deployments.
Why Buy from Datacom Technologies (BD)?
Datacom Technologies (BD) is a trusted supplier of enterprise servers, storage systems, networking equipment, and data center solutions in Bangladesh. We provide genuine Broadcom LSI Host Bus Adapters with competitive pricing, expert technical consultation, and dependable after-sales support.
- Call/WhatsApp: +8801748173213
- Email: sales@datacom.com.bd
- Alternative Email: datacomtechnologiesbd@gmail.com
- Office: Tropical Center, 218, Dr. Kudroti Khuda Road, New Elephant Road, Dhaka-1205, Bangladesh.
Frequently Asked Questions (FAQ)
Q1: Is the LSI SAS 9305-16E a RAID controller?
No. It is a Non-RAID Host Bus Adapter (IT Mode) designed for direct storage connectivity.
Q2: Which controller chipset does it use?
It uses the Broadcom SAS3216 controller.
Q3: What connectors are available?
It includes four external Mini-SAS HD (SFF-8644) connectors providing sixteen 12Gb/s SAS lanes.
Q4: Does it support SATA drives?
Yes. It supports both 12Gb SAS and 6Gb SATA HDDs and SSDs.
Q5: Which operating systems are supported?
It supports VMware ESXi, Windows Server, Linux, TrueNAS, ZFS, FreeBSD, and other enterprise storage platforms.
