Mellanox MCX312B-XCCT 10GBE Connectx-3 Pro Network Adapter

Mellanox MCX312B-XCCT 10GBE Connectx-3 Pro Network Adapter
Share:
Mellanox MCX312B-XCCT 10GBE Connectx-3 Pro Network Adapter
  • Product id:  1703
  • Stock: In Stock
  • Model: Model
Payment Option
Message
on Whatsapp

Key Features

  • Dual-Port 10GbE Connectivity: Two SFP+ ports supporting up to 10Gbps per port.
  • ConnectX-3 Pro Architecture: Built on the Mellanox ConnectX-3 Pro EN controller.
  • PCIe Gen 3.0 x8 Interface: Provides high-bandwidth host connectivity with backward compatibility for PCIe 2.0 and 1.1.
  • Multi-Speed Ethernet: Supports 10GbE and 1GbE networking.
Hotline Support: (10am - 8pm)
Get a Quote: Our team is ready to help
Email: sales@datacom.com.bd
Description

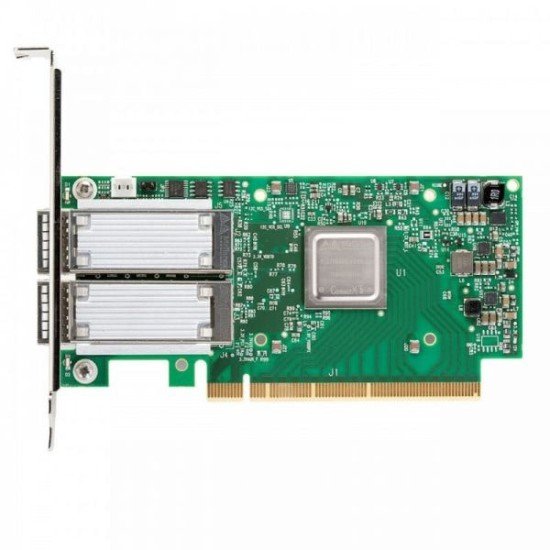

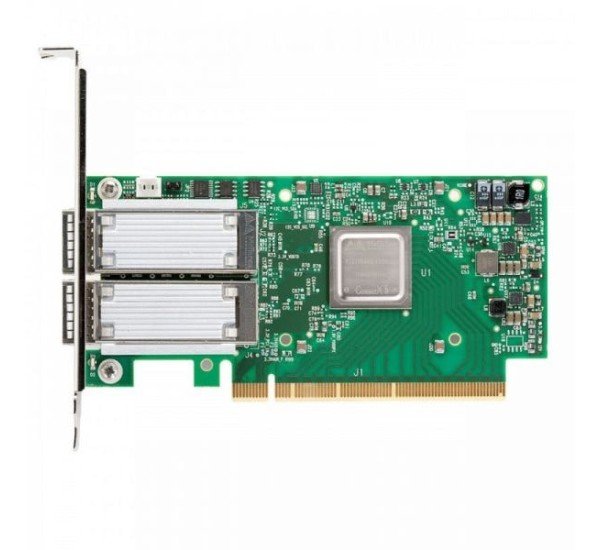

Mellanox MCX312B-XCCT ConnectX-3 Pro Dual-Port 10GbE Network Adapter

The Mellanox MCX312B-XCCT ConnectX-3 Pro 10GbE Network Adapter is an enterprise-grade dual-port Ethernet network card designed for servers, data centers, virtualization platforms and high-performance networking environments. Powered by the Mellanox ConnectX-3 Pro EN controller, this adapter provides two 10 Gigabit Ethernet SFP+ ports for high-speed network connectivity.

Featuring a PCI Express 3.0 x8 interface, the MCX312B-XCCT delivers reliable, high-bandwidth connectivity for compatible server platforms. It supports 10GbE and 1GbE Ethernet networking, making it suitable for enterprise network upgrades, storage infrastructure and server-to-switch connections.

Key Features of Mellanox MCX312B-XCCT

  • Dual-Port 10GbE: Two SFP+ ports supporting network speeds up to 10Gbps per port.
  • ConnectX-3 Pro Controller: Built on Mellanox ConnectX-3 Pro EN technology.
  • PCIe Gen 3.0 x8: High-bandwidth PCI Express interface with backward compatibility.
  • Multi-Speed Ethernet: Supports 10GbE and 1GbE connectivity.
  • SFP+ Interface: Compatible with supported optical transceivers and direct-attach copper cables.
  • Network Virtualization: Supports SR-IOV and virtual machine networking capabilities.
  • Hardware Acceleration: Provides network offloading features for efficient packet processing.
  • Enterprise Networking: Suitable for server infrastructure, data centers and high-performance network environments.
  • Full-Height Bracket: XCCT variant supplied with a tall bracket configuration.

Technical Specifications

SpecificationDetails
BrandMellanox Technologies / NVIDIA
ModelMCX312B-XCCT
Product FamilyConnectX-3 Pro
ControllerMellanox ConnectX-3 Pro EN
Product TypeEthernet Network Interface Card
Port ConfigurationDual Port
Connector Type2 x SFP+
Maximum Network Speed10Gbps per port
Supported Ethernet Speeds1GbE / 10GbE
Ethernet Standards10GBASE-CX4, 10GBASE-R, 1000BASE-R
Host InterfacePCI Express 3.0 x8
PCIe Signaling Rate8.0 GT/s per lane
PCIe CompatibilityPCIe 3.0, 2.0 and 1.1
Typical Power Consumption5.92W with passive cables
Maximum Power Consumption6.42W with passive cables
Operating Temperature0°C to 55°C
Airflow Requirement200 LFM
Card Dimensions142.24 x 53.59 mm
BracketTall / Full-Height
RoHS ComplianceRoHS R6
ApplicationEnterprise Servers and Data Centers

Advanced Networking Capabilities

The ConnectX-3 Pro Ethernet architecture offers advanced networking capabilities for demanding enterprise applications. Its hardware acceleration and virtualization technologies help improve network processing efficiency and support scalable server environments.

  • Single Root I/O Virtualization (SR-IOV)
  • Virtual machine networking support
  • TCP/IP network offloading
  • Advanced Ethernet packet processing
  • High-throughput network communication
  • Compatible optical and copper SFP+ connectivity options

Applications of Mellanox MCX312B-XCCT 10GbE Adapter

  • Enterprise server network upgrades
  • 10 Gigabit Ethernet data center networking
  • Cloud computing infrastructure
  • Server virtualization environments
  • High-speed NAS and storage connectivity
  • Enterprise network switching
  • Server-to-server communication
  • High-performance computing infrastructure

Compatibility and Installation

The Mellanox MCX312B-XCCT uses a PCI Express 3.0 x8 interface and is compatible with systems providing a suitable PCIe expansion slot. It can also operate in compatible PCIe 2.0 and 1.1 environments.

The two SFP+ ports support compatible 10GbE optical modules and direct-attach copper cables. Select the appropriate transceiver or cable according to the network switch, cable distance and required connection type.

Before installation, check the server's PCIe slot availability, full-height bracket clearance, operating system driver support and cooling requirements. The manufacturer's documentation specifies 200 LFM airflow for the adapter.

Buy Mellanox MCX312B-XCCT 10GbE Network Adapter in Bangladesh

Looking for a Mellanox MCX312B-XCCT ConnectX-3 Pro Dual-Port 10GbE Network Adapter in Bangladesh? Contact Datacom Technologies BD for product availability, pricing and server compatibility assistance.

Website: https://datacom.com.bd/

Email: sales@datacom.com.bd

Questions

Have question about this product? Get specific details about this product from expert.

No questions have been asked about this product.

Review

Write a review

Note: HTML is not translated!
Bad Good

What is the price of Mellanox MCX312B-XCCT 10GBE Connectx-3 Pro Network Adapter in Bangladesh 2026?

The latest price of Mellanox MCX312B-XCCT 10GBE Connectx-3 Pro Network Adapter in Bangladesh is available on request. Product prices may vary depending on brand, model, specification, stock availability, warranty, and current market condition. Please call or WhatsApp Datacom Technologies (BD) to get the updated price, availability, and official quotation.

You can buy original Mellanox MCX312B-XCCT 10GBE Connectx-3 Pro Network Adapter in Bangladesh from Datacom Technologies (BD) with expert guidance, genuine product assurance, and after-sales support. For the best deal, current stock status, and product recommendation, contact our sales team today.
